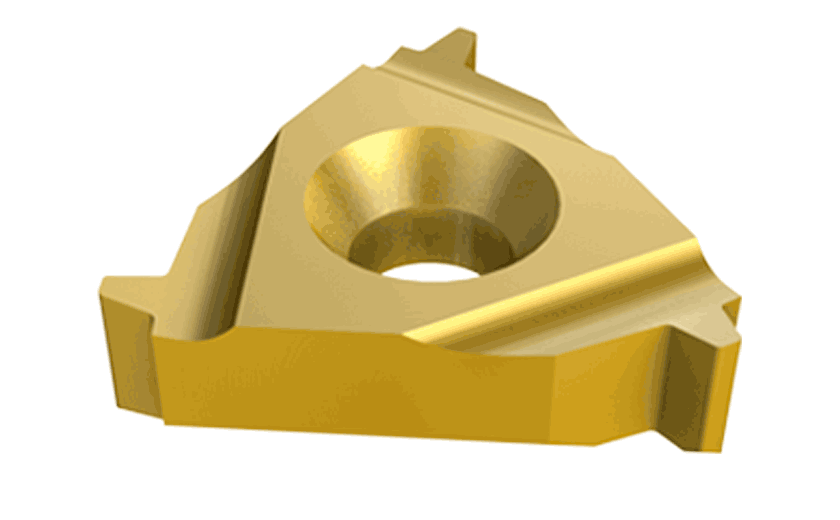

16ER 4 TR IC908-External trapezoid shaped, DIN 103 laydown threading inserts, for feed screws.

Dostępność: duża ilość

Cena brutto: 94,43 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

94.43

Cena netto: 76,77 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 104,92 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3349580

16ER 4 TR IC908

Podstawowe informacje
FamilyName	ER/L-TR
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3349580
ProductName	16ER 4 TR IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	External trapezoid shaped, DIN 103 laydown threading inserts, for feed screws.
FamilyShortDesc	External Trapezoid Shaped DIN 103 Laydown Threading Inserts for Feed Screws
Link	https://www.Iscar.com/ecat/e.asp?cat=3349580
Remarks	For Insert Identification System, click on More Info DIN 103 04/1977,1502901/1977 Class 7e
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Threading \|
APP1Name	External Threading
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Threading Regular Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0056
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3349580
Grade	IC908
Corner Radius (RE)	0.2 mm
Cutting Direction (HAND)	Right Hand
Inscribed Circle Diameter (IC)	9.52 mm
Insert Length (INSL)	16.49 mm
Profile Distance EY (PDY)	1.35 mm
Thread Form Type (THFT)	TR30
Thread Pitch (TP)	4 mm
