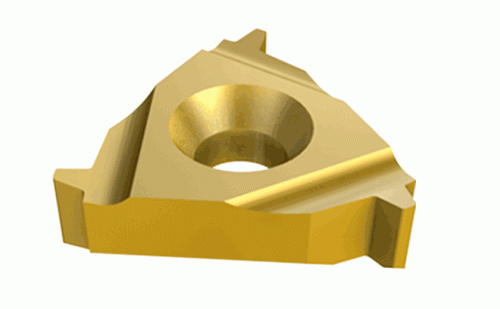

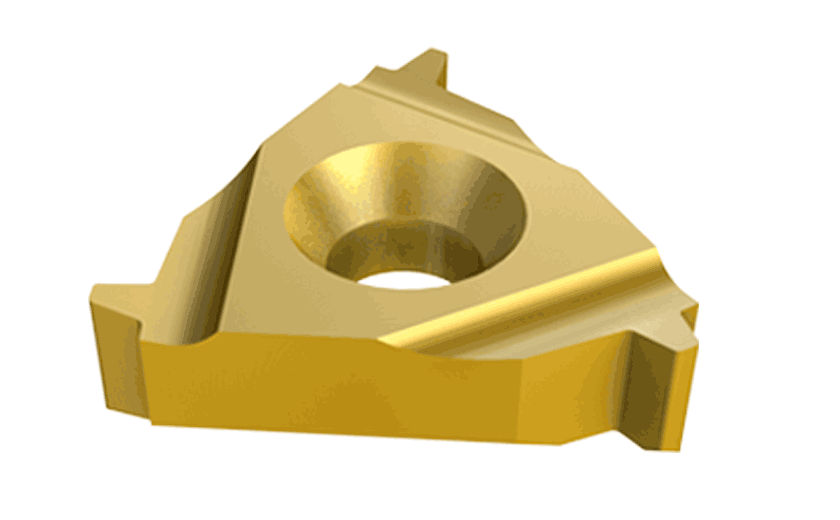

16ER 6 ACME IC908-External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws.

Dostępność: duża ilość

Cena brutto: 94,43 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

94.43

Cena netto: 76,77 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 104,92 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3364919

16ER 6 ACME IC908

Podstawowe informacje
FamilyName	ER/L-ACME
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3364919
ProductName	16ER 6 ACME IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws.
FamilyShortDesc	External ACME Profile Laydown Threading Inserts for Feed Screws
Link	https://www.Iscar.com/ecat/e.asp?cat=3364919
Remarks	For Insert Identification System, click on More Info. ACME ASME/ANSI B1.5-1988 Class 3G
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| External Threading \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	External Threading
APP3Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Threading Regular Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0050
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3364919
Grade	IC908
Cutting Direction (HAND)	Right Hand
Inscribed Circle Diameter (IC)	9.52 mm
Insert Length (INSL)	16.49 mm
Profile Distance EY (PDY)	1.4 mm
Thread Form Type (THFT)	AC29
Threads per Inch (TPI)	6
