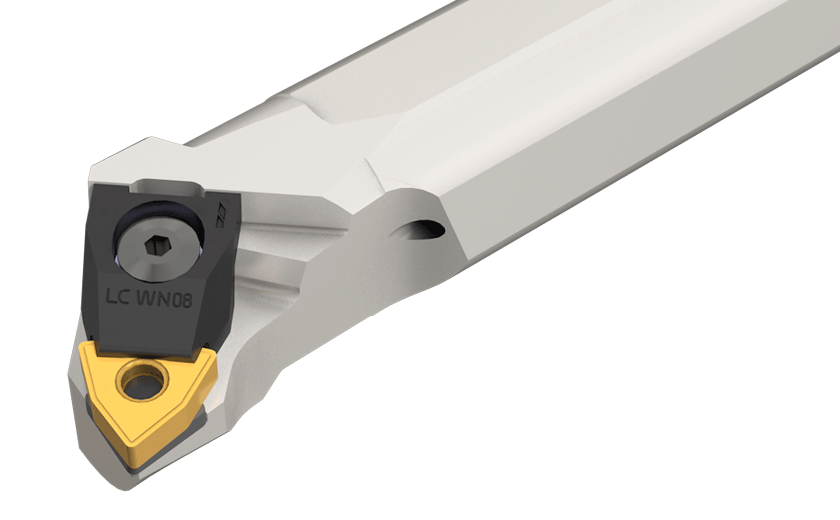

A-MULNR 20-4MW-MULTI-WEDGE lock, boring bars for negative 80° rhombic, trigon and square inserts.

Dostępność: duża ilość

Cena brutto: 1 524,78 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1524.78

Cena netto: 1 239,66 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 694,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3602320

A-MULNR 20-4MW

Podstawowe informacje
FamilyName	S/A-MULNR/L-MW
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3602320
ProductName	A-MULNR 20-4MW
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	MULTI-WEDGE lock, boring bars for negative 80° rhombic, trigon and square inserts.
FamilyShortDesc	MULTI-WEDGE Lock, Boring Bars for Negative 80° Rhombic, Trigon and Square Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3602320
Remarks	Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. 80° Diamond 95° Approach \| Int. 80° Trigon 95° Approach \|
APP1Name	Int. 80° Diamond 95° Approach
APP2Name	Int. 80° Trigon 95° Approach
ItemRemark
Tool Type	Internal Indexble -Turn Tool
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.1116
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3602320
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Right Hand
Functional Width (WF)	0.77"
Master Insert Identification (MIID)	WNMG 431-GN
Minimum Bore Diameter (DMIN)	1.496"
Overall Length (OAL)	14"
Rake Angle Axial (GAMP)	6 Degrees
Rake Angle Radial (GAMF)	12 Degrees
Reduced Body Diameter Length (LDRED)	1.73"
Shank Height (H)	1.142"
