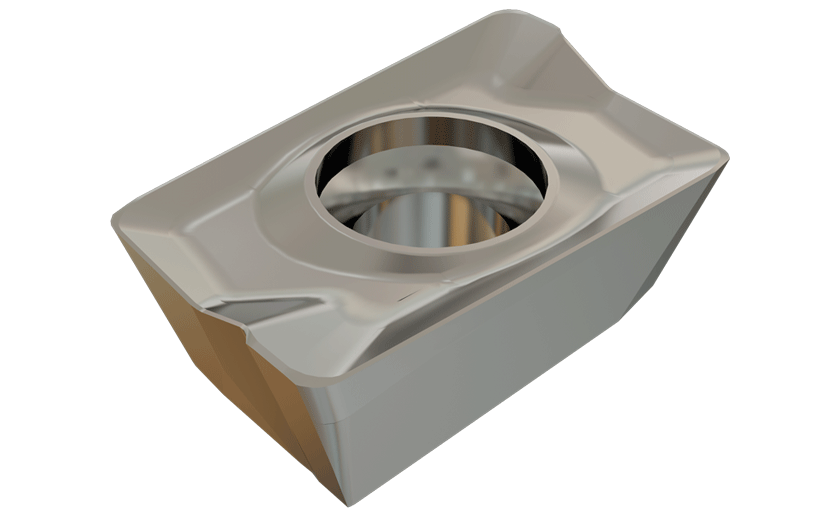

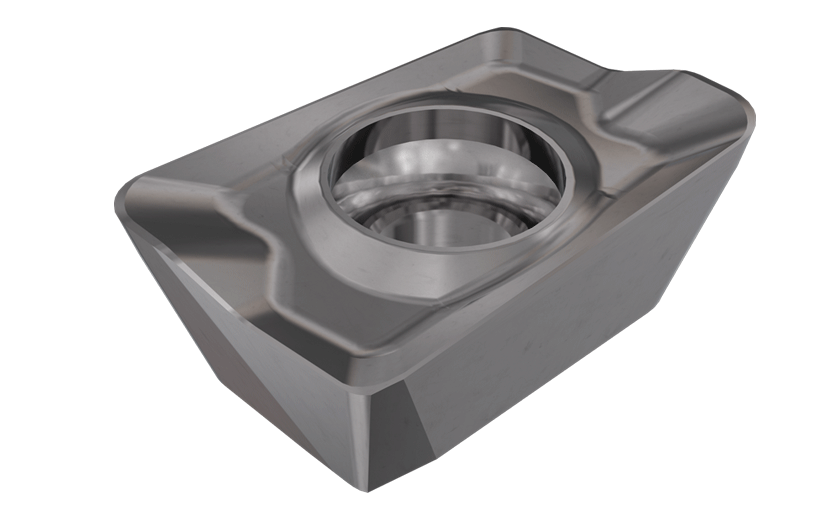

ADKT 1505PDL-HM IC328-HELIMILL inserts with 2 helical cutting edges for general use.

Dostępność: duża ilość

Cena brutto: 82,82 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

82.82

Cena netto: 67,33 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 92,02 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5601298

ADKT 1505PDL-HM IC328

Podstawowe informacje
FamilyName	ADKT 1505PDR/L-HM
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5601298
ProductName	ADKT 1505PDL-HM IC328
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIMILL inserts with 2 helical cutting edges for general use.
FamilyShortDesc	Inserts with 2 Helical Cutting Edges for General Use
Link	https://www.Iscar.com/ecat/e.asp?cat=5601298
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Counter Boring \| Countersinking \| Drill Mill \| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Side Slotting \| Slanted Shoulder & Chamfer \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Counter Boring
APP4Name	Countersinking
APP5Name	Drill Mill
APP6Name	Facing
APP7Name	Plunging & Recessing
APP8Name	Rampdown
ItemRemark	PDL - Left-hand inserts are used only for special tools.
Coating	TiCN
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0172
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5601298
Grade	IC328
Corner Radius (RE)	0.0315"
Cutting Direction (HAND)	Left Hand
Cutting Edge Effective Length (LE)	0.543"
Depth of Cut Maximum (APMX)	0.472"
Insert Length (INSL)	0.618"
Insert Thickness (S)	0.222"
Insert Width (W1)	0.377"
Maximum Feed per Tooth (fz(max))	0.0059 "/tooth
Minimum Feed per Tooth (fz(min))	0.0031 "/tooth
Number of Cutting Edges	2
