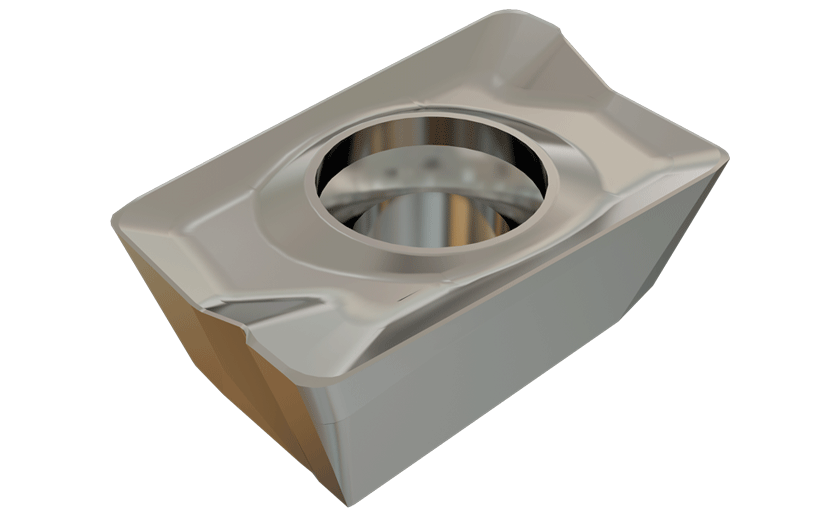

ADKT 1505PDR-HM IC5100-HELIMILL inserts with 2 helical cutting edges for general use.

Dostępność: duża ilość

Cena brutto: 90,56 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

90.56

Cena netto: 73,63 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 100,62 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3421452

ADKT 1505PDR-HM IC5100

Podstawowe informacje
FamilyName	ADKT 1505PDR/L-HM
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3421452
ProductName	ADKT 1505PDR-HM IC5100
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIMILL inserts with 2 helical cutting edges for general use.
FamilyShortDesc	Inserts with 2 Helical Cutting Edges for General Use
Link	https://www.Iscar.com/ecat/e.asp?cat=3421452
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Counter Boring \| Countersinking \| Drill Mill \| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Side Slotting \| Slanted Shoulder & Chamfer \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Counter Boring
APP4Name	Countersinking
APP5Name	Drill Mill
APP6Name	Facing
APP7Name	Plunging & Recessing
APP8Name	Rampdown
ItemRemark
Coating	TiCN+Al2O3
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Cast Iron \|
Thread Standard
Package Weight	0.0081
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3421452
Grade	IC5100
Corner Radius (RE)	0.8 mm
Cutting Direction (HAND)	Right Hand
Cutting Edge Effective Length (LE)	13.75 mm
Depth of Cut Maximum (APMX)	12 mm
Insert Length (INSL)	15.65 mm
Insert Thickness (S)	5.64 mm
Insert Width (W1)	9.57 mm
Maximum Feed per Tooth (fz(max))	0.15 mm/tooth
Minimum Feed per Tooth (fz(min))	0.08 mm/tooth
Number of Cutting Edges	2
