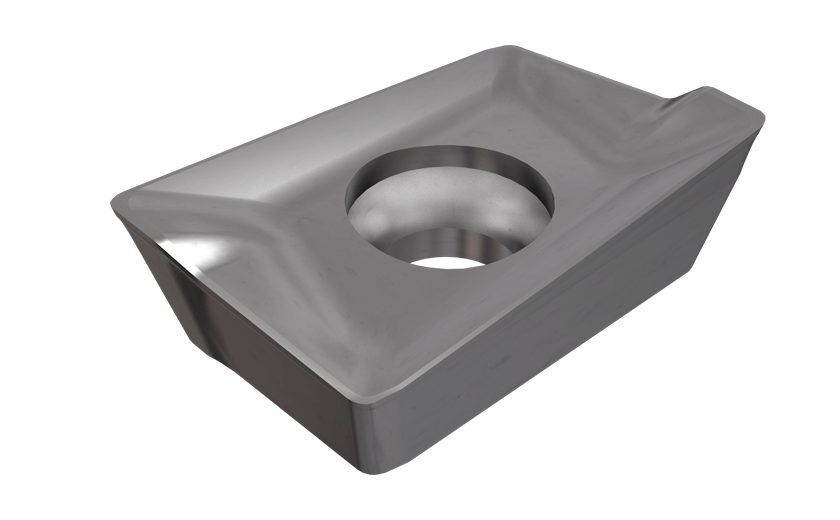

APKT 1003PDTR-RM IC5100-HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining.

Dostępność: duża ilość

Cena brutto: 60,76 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

60.76

Cena netto: 49,40 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 67,51 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3421453

APKT 1003PDTR-RM IC5100

Podstawowe informacje
FamilyName	APKT 1003PDTR/L-RM
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3421453
ProductName	APKT 1003PDTR-RM IC5100
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining.
FamilyShortDesc	Inserts with Reinforced Helical Cutting Edge for Interrupted Cut and Heavy Machining
Link	https://www.Iscar.com/ecat/e.asp?cat=3421453
Remarks	APKT...L should be used only on left-hand tools.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Countersinking \| Drill Mill \| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Slanted Shoulder & Chamfer \| Slotting \|
APP1Name	Bottom Shouldering
APP2Name	Countersinking
APP3Name	Drill Mill
APP4Name	Facing
APP5Name	Plunging & Recessing
APP6Name	Rampdown
APP7Name	Shouldering
APP8Name	Slanted Shoulder & Chamfer
ItemRemark
Coating	TiCN+Al2O3
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Cast Iron \|
Thread Standard
Package Weight	0.0033
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3421453
Grade	IC5100
Corner Radius (RE)	0.5 mm
Cutting Direction (HAND)	Right Hand
Cutting Edge Effective Length (LE)	9.8 mm
Depth of Cut Maximum (APMX)	9.8 mm
Insert Length (INSL)	11 mm
Insert Thickness (S)	3.47 mm
Insert Width (W1)	6.7 mm
Maximum Feed per Tooth (fz(max))	0.2 mm/tooth
Minimum Feed per Tooth (fz(min))	0.1 mm/tooth
Number of Cutting Edges	2
