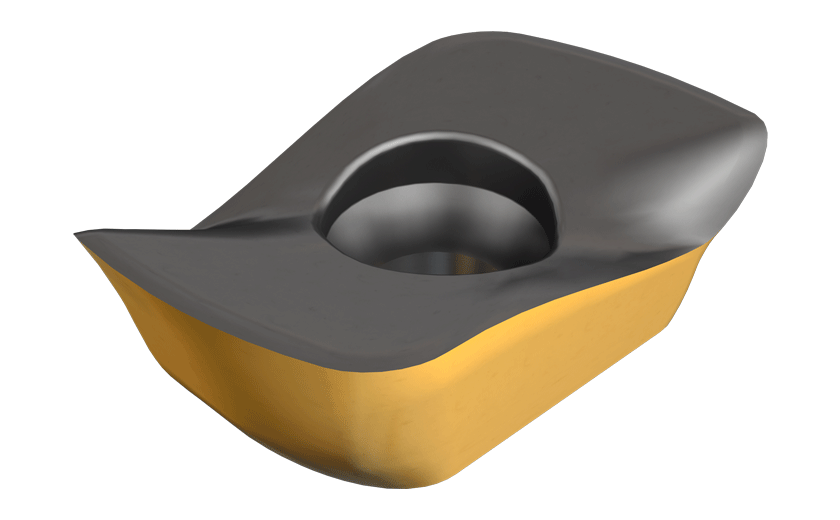

APKT 1003R8GT-FF IC5600-Insert for fast feed milling.

Dostępność: duża ilość

Cena brutto: 102,17 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

102.17

Cena netto: 83,07 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 113,52 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3424927

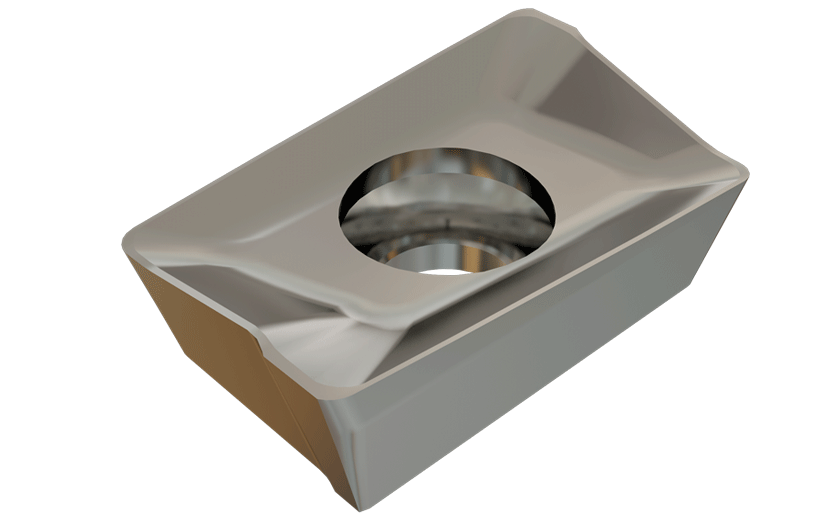

APKT 1003R8GT-FF IC5600

Podstawowe informacje
FamilyName	APKT 1003-FF
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3424927
ProductName	APKT 1003R8GT-FF IC5600
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Insert for fast feed milling.
FamilyShortDesc	Insert for Fast Feed Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3424927
Remarks	The actual diameter of the tool is 0.1 mm larger than the nominal diameter when using this insert Tool corner should be modified by rounding to 2.0 mm. Should be used on tools of 12 mm diameter and up At D.O.C. larger than ap max, regular insert feed should be applied
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Rampdown \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Rampdown
ItemRemark	Reinforced cutting-edge geometry for Fast Feed (FF) hardened materials up to 60 HRC
Coating	TiCN+Al2O3
Cutting Edge Material
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \|
Thread Standard
Package Weight	0.0034
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3424927
Grade	IC5600
Corner Radius (RE)	1.9 mm
Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	1 mm
Figure	2
Insert Length (INSL)	10.8 mm
Insert Thickness (S)	3.5 mm
Insert Width (W1)	6.6 mm
Maximum Feed per Tooth (fz(max))	1.5 mm/tooth
Minimum Feed per Tooth (fz(min))	0.5 mm/tooth
Number of Cutting Edges	2
