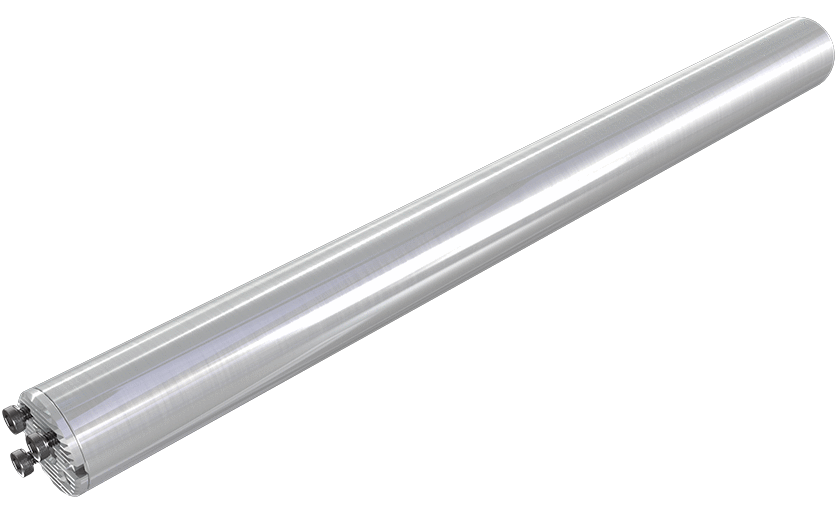

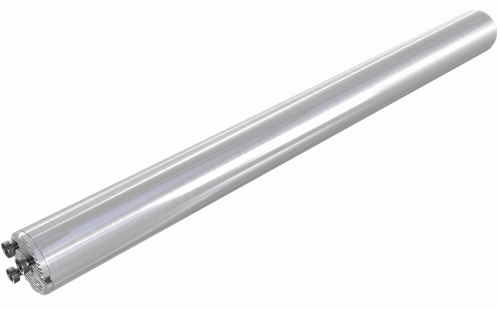

AV-D2.50-7D-C-Anti-Vibration bars with through coolant for interchangeable heads.

Dostępność: duża ilość

Cena brutto: 9 210,60 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

9210.60

Cena netto: 7 488,29 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 10 234,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3373154

AV-D2.50-7D-C

Podstawowe informacje
FamilyName	AV-D
ToolType	Holder
Unit	I
PackSize	1
product_code	ISC3373154
ProductName	AV-D2.50-7D-C
COO	China
UOM	EA
UNSPSC	23231001
FamilyDesc	Anti-Vibration bars with through coolant for interchangeable heads.
FamilyShortDesc	Anti-Vibration Bars with Through Coolant for Interchangeable Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3373154
Remarks	12xBD and 14xBD cannot be shortened
FamilyBrand	Iscar
BrandName	Iscar
APP1Name	Anti Vibration
APP2Name	Straight ST
ItemRemark
Tool Type	Cylindrical Shanks
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	39.3084
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3373154
Body Diameter (BD)	2-1/2"
Connection Diameter Machine Side (DCONMS)	2-1/2"
Connection Diameter Workpiece Side (DCONWS)	1.575"
Coolant Supply Property (CSP)	Coolant Thru
Overall Length (OAL)	26.2"
