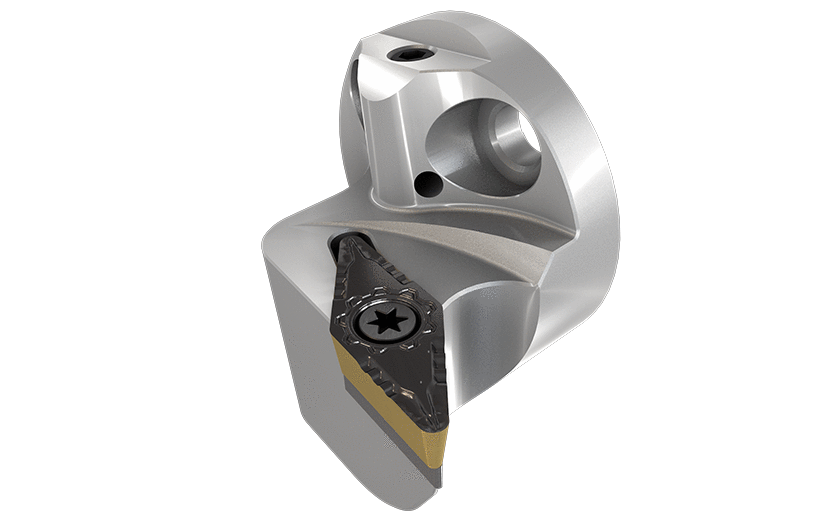

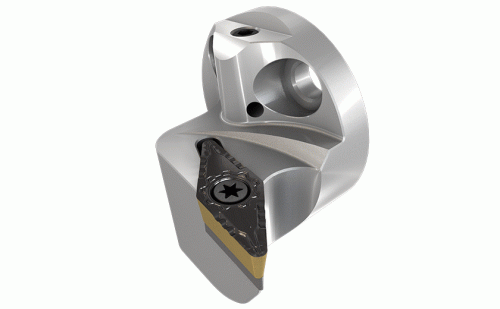

AVC-D40-SVLCL-16T-Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance.

Dostępność: duża ilość

Cena brutto: 1 149,39 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1149.39

Cena netto: 934,46 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 277,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3332996

AVC-D40-SVLCL-16T

Podstawowe informacje
FamilyName	AVC-SVLCR/L
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3332996
ProductName	AVC-D40-SVLCL-16T
COO	China
UOM	EA
UNSPSC	23242106
FamilyDesc	Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance.
FamilyShortDesc	Interchangeable Boring Heads Carrying 35° Rhombic Inserts with 7° Clearance
Link	https://www.Iscar.com/ecat/e.asp?cat=3332996
Remarks	For positive V insert geometry with radius 1.2mm please use set: TVC 3-04675 *5592726
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. 35° Diamond 95° Approach \|
APP1Name	Int. 35° Diamond 95° Approach
ItemRemark	DMIN of 50mm shank is DMIN of requested head + 10mm. DMIN of 60mm shanks is DMIN of requested head + 20mm
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1520
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3332996
Connection Diameter Machine Side (DCONMS)	40 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Left Hand
Functional Length (LF)	32 mm
Functional Width (WF)	27 mm
Master Insert Identification (MIID)	VCMT 332-F3M
Minimum Bore Diameter (DMIN)	50 mm
