Adapter tokarski ze złącza MAS-BT 403 na złącze Coromant Capto® C4-390.680-30050Y ID:7079925 Sandvik
Dostępność:
duża ilość
Cena brutto:
5 737,95 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
4 665,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
5 282,85 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7079925
Opis

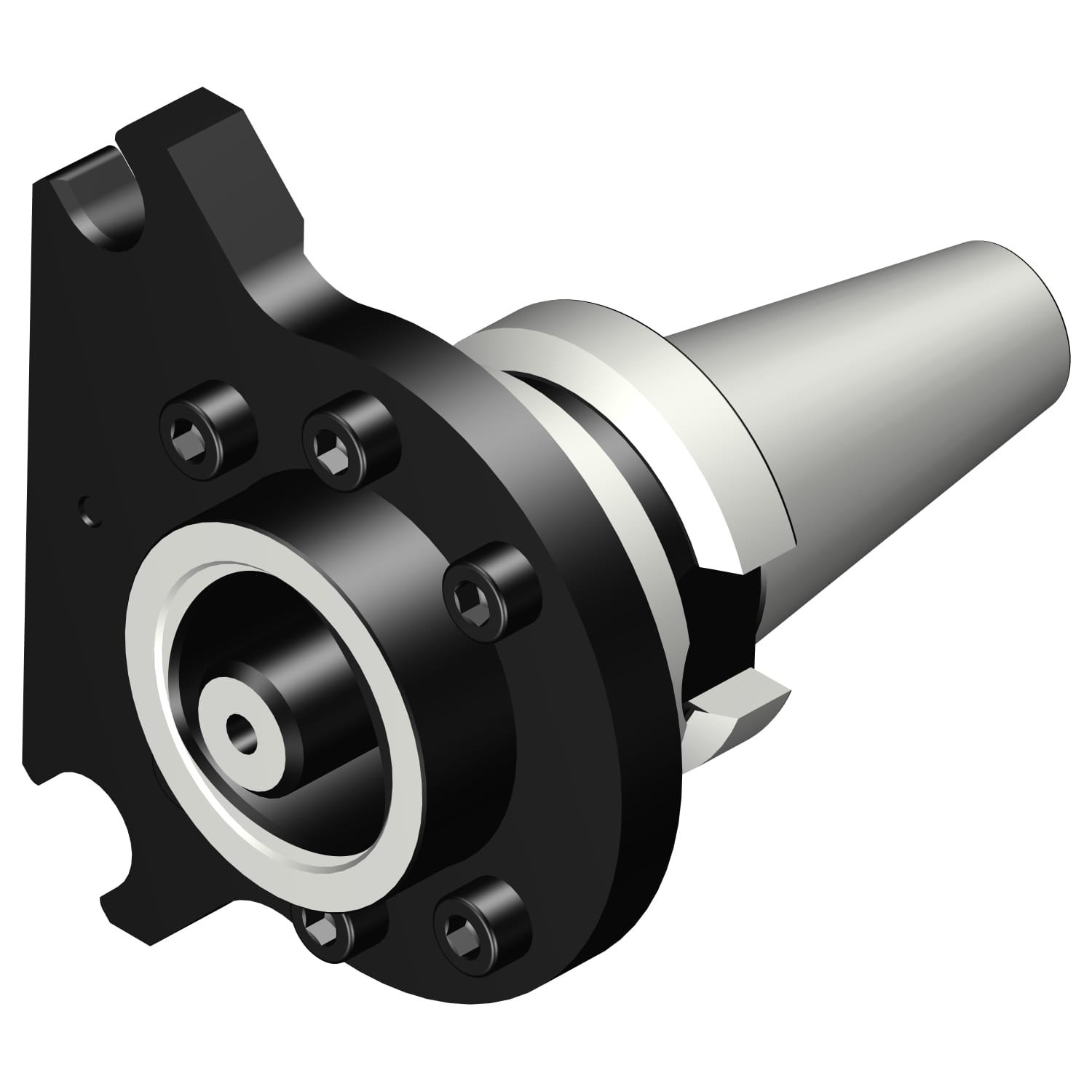

Adapter tokarski ze złącza MAS-BT 403 na złącze Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter tokarski ze złącza MAS-BT 403 na złącze Coromant Capto® |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-390.680 |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

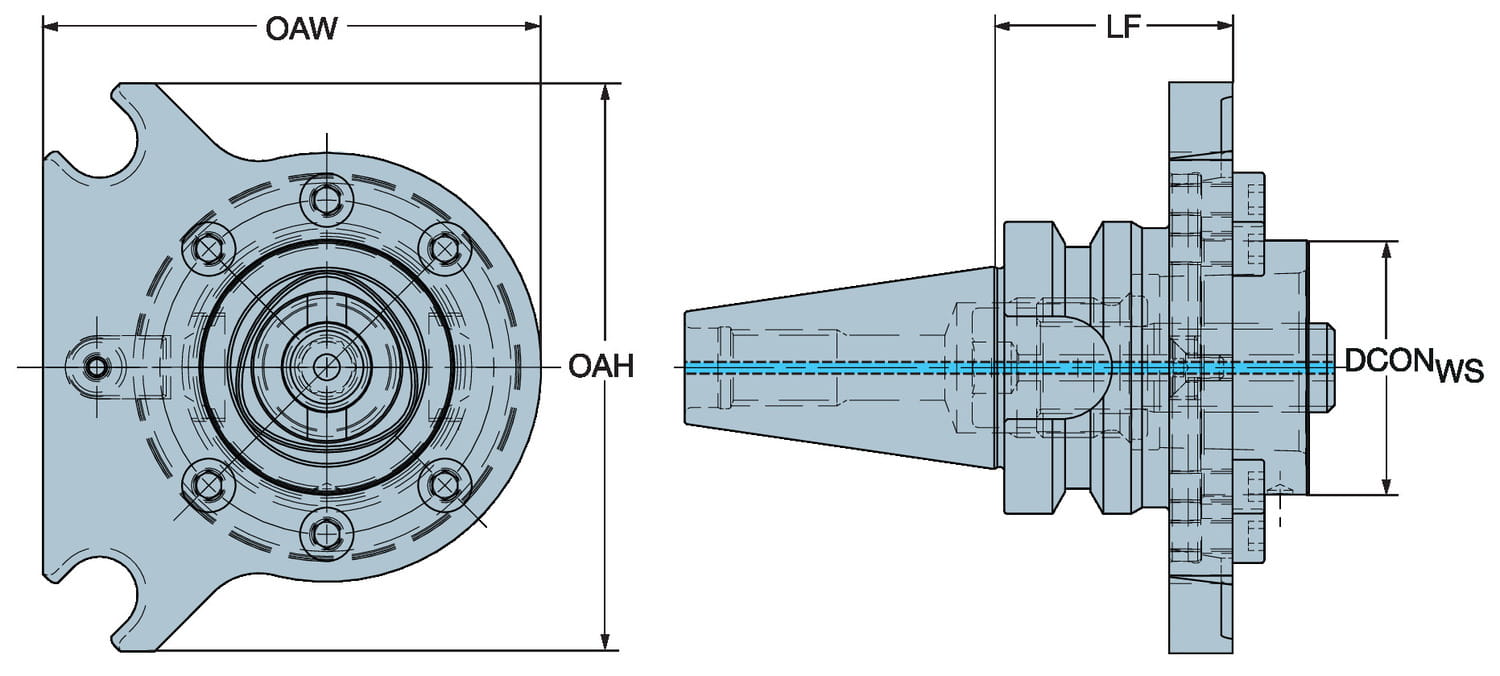

| Wymiary | |
| Dconws Connection Diameter | 1.5748 inch |
| Dconws Connection Diameter | 40 mm |
| Dfc Functional Diameter | 1.10236 inch |
| Dfc Functional Diameter | 28 mm |
| Lf Functional Length | 1.9685 inch |
| Lf Functional Length | 50 mm |
| Oah Overall Height | 3.54331 inch |
| Oah Overall Height | 90 mm |
| Oaw Overall Width | 3.0315 inch |
| Oaw Overall Width | 77 mm |
| Waga | 1.99739 lb |
| Waga | 906 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | MAS-BT403 -AD central coolant - BT30 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (bolt clamping) -size C4 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 1.9685 inch |
| Ohx Maximum Overhang | 50 mm |
| Inne parametry | |
| Ean Number | 7323221181567 |
