Adapter z chwytu prostokątnego na złącze CoroTurn® XS CXS-1616-05R ID:5726853 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 735,53 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 411,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 041,80 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5726853
Opis

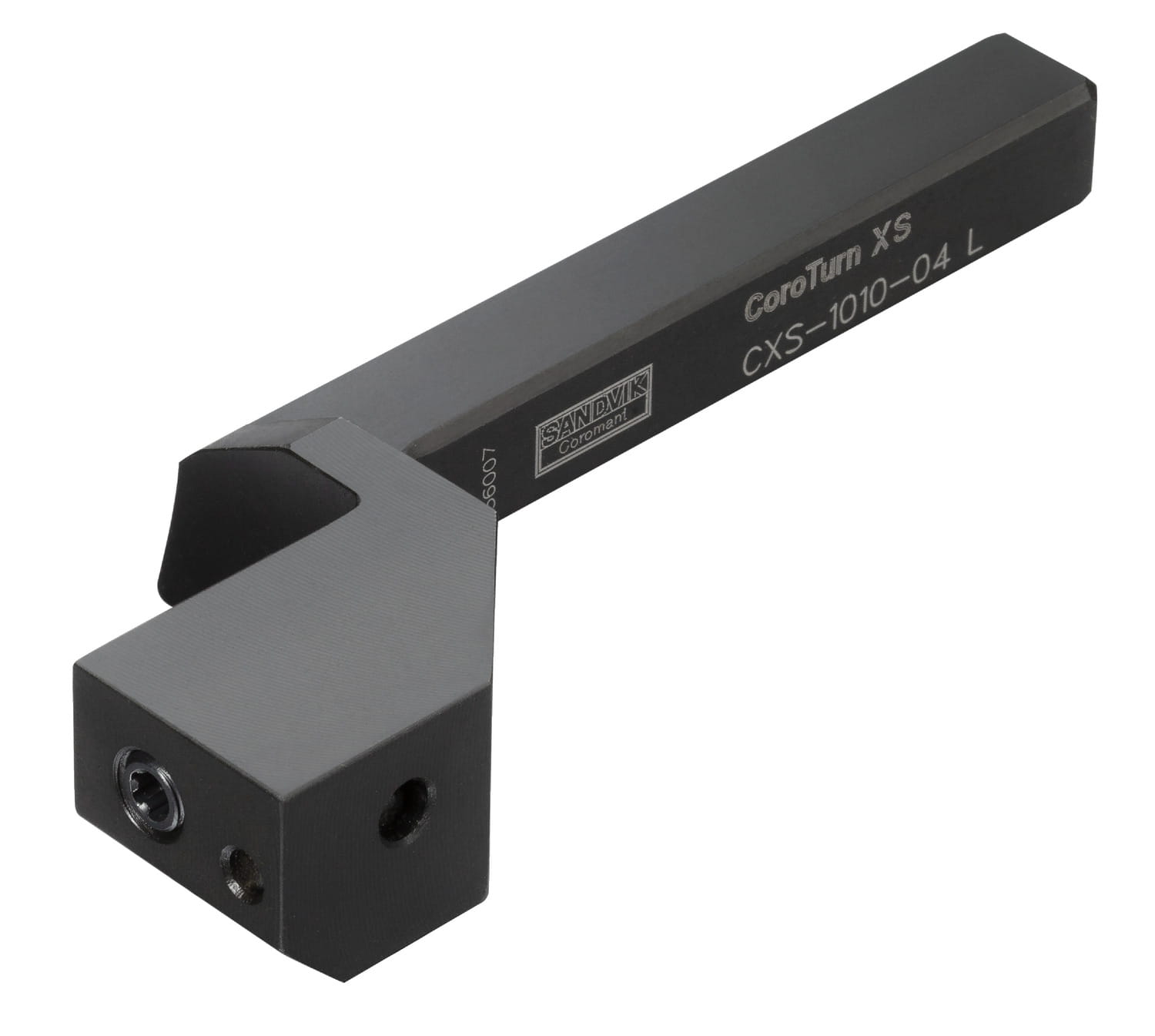

Adapter z chwytu prostokątnego na złącze CoroTurn® XS
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter z chwytu prostokątnego na złącze CoroTurn® XS |
| Rodzina produktów | 1055 |
| Product Subfamily Code (Tsyc) | CXS-..R/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | TR |

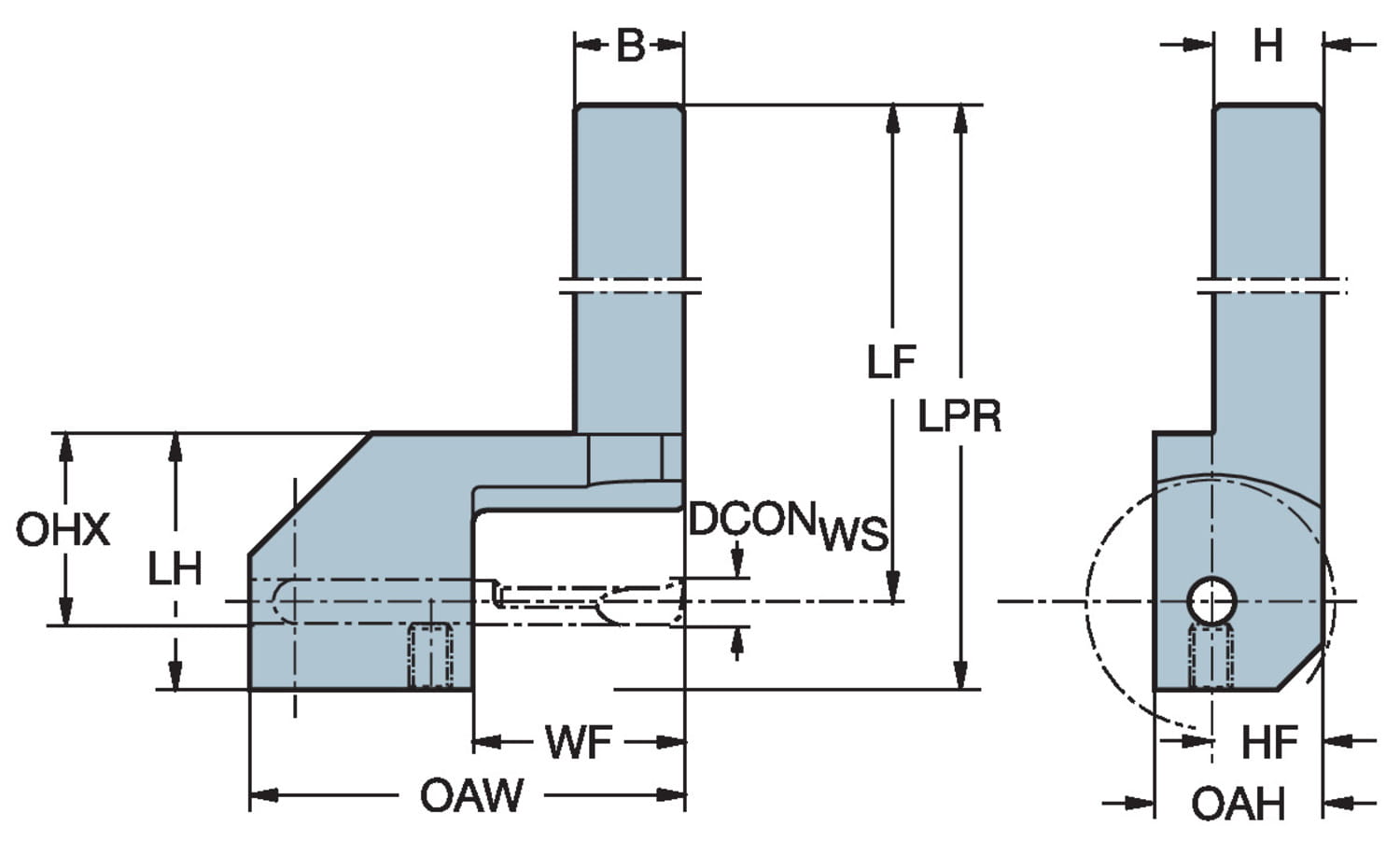

| Wymiary | |
| B Shank Width | 0.629921 inch |
| B Shank Width | 16 mm |
| Dconws Connection Diameter | 0.19685 inch |
| Dconws Connection Diameter | 5 mm |
| H Shank Height | 0.629921 inch |
| H Shank Height | 16 mm |
| Lf Functional Length | 3.70079 inch |
| Lf Functional Length | 94 mm |
| Oah Overall Height | 0.866142 inch |
| Oah Overall Height | 22 mm |
| Oaw Overall Width | 1.88976 inch |
| Oaw Overall Width | 48 mm |
| Waga | 0.727526 lb |
| Waga | 0.33 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Rectangular shank -metric: 16 x 16 |
| Adintws Adaptive Interface Workpiece Direction | CoroTurn XS -metric: 5 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 2: radial exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 1.33858 inch |
| Ohx Maximum Overhang | 34 mm |
| Inne parametry | |
| Ean Number | 12239286 |
