Opis

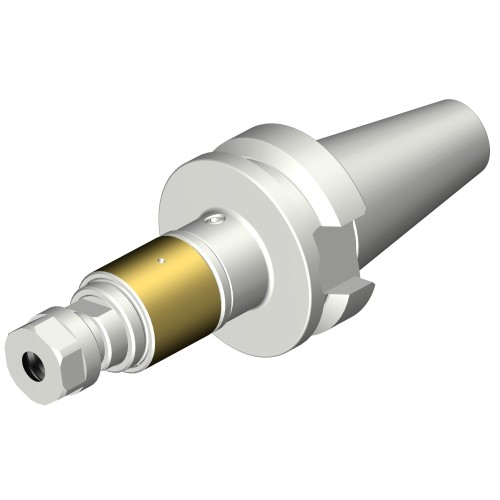

Adapter ze złącza BIG-PLUS MAS-BT na oprawkę CoroChuck™ 970

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza BIG-PLUS MAS-BT na oprawkę CoroChuck™ 970 |
| Rodzina produktów | 2062 |
| Product Subfamily Code (Tsyc) | 970-BBxx (5) |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

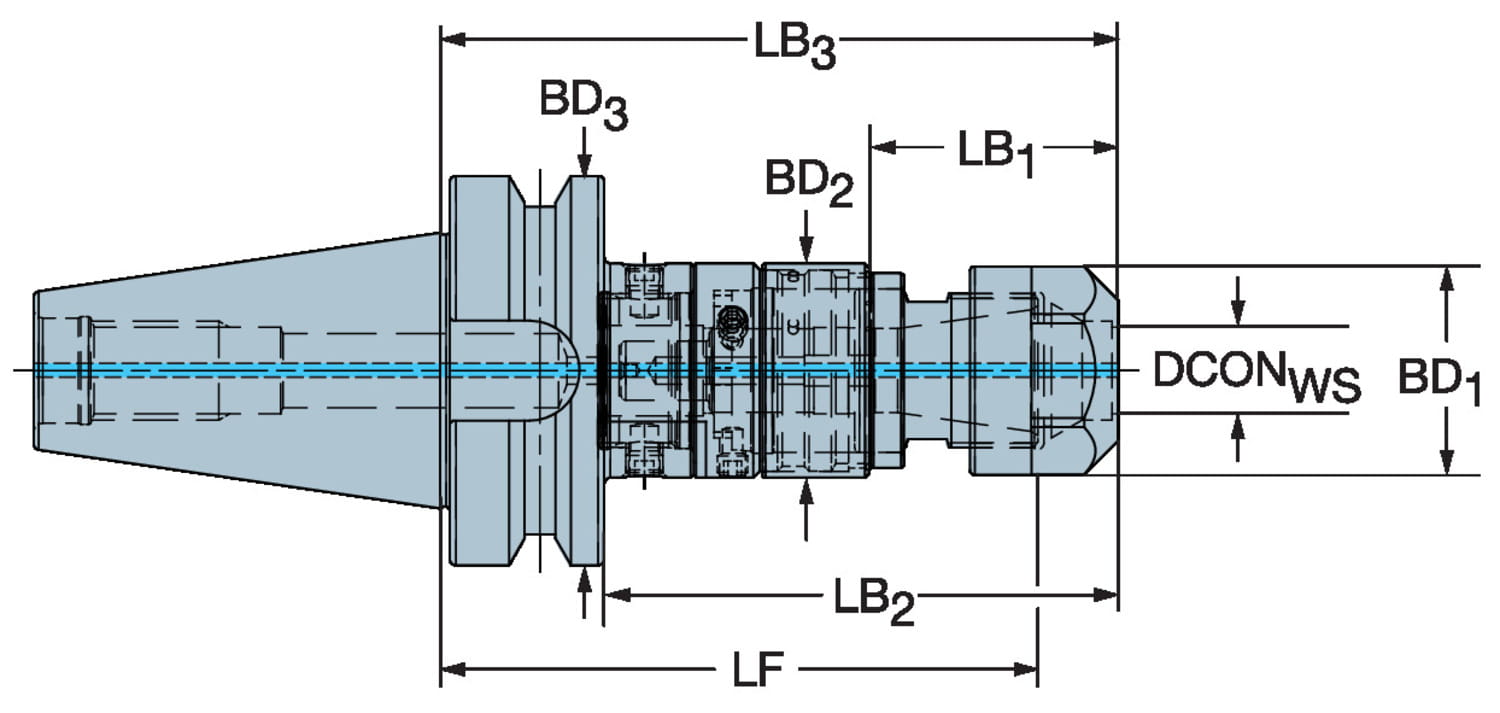

| Wymiary | |
| Dconws Connection Diameter | 0.444882 inch |
| Dconws Connection Diameter | 11.3 mm |
| Dfccsw Functional Diameter | 0.433071 inch |
| Dfccsw Functional Diameter | 11 mm |
| Lf Functional Length | 3.07874 inch |
| Lf Functional Length | 78.2 mm |
| Waga | 1.11334 lb |
| Waga | 0.505 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | BIG+/MAS-BT403 -AD central coolant - BT30 |
| Adintws Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) for tapping -ER11 |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Rpmx Rotational Speed Maximum | 8000 1/min |
| Inne parametry | |
| Ean Number | 7323220783984 |
