Adapter ze złącza BIG-PLUS MAS-BT na oprawkę CoroChuck™ 970 970-BB50-40-174 ID:6974158 Sandvik
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

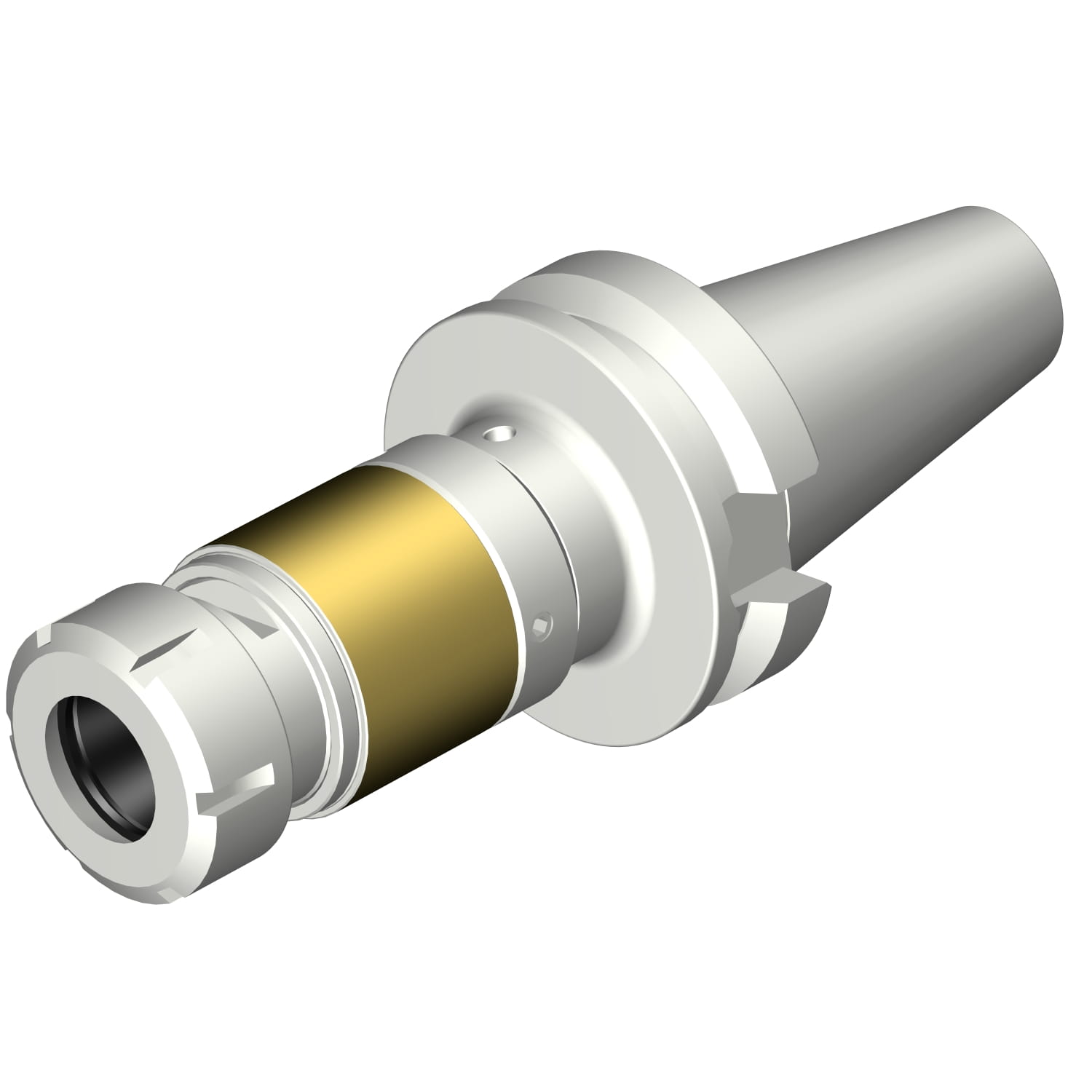

Adapter ze złącza BIG-PLUS MAS-BT na oprawkę CoroChuck™ 970

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza BIG-PLUS MAS-BT na oprawkę CoroChuck™ 970 |
| Rodzina produktów | 2062 |
| Product Subfamily Code (Tsyc) | 970-BBxx (2) |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

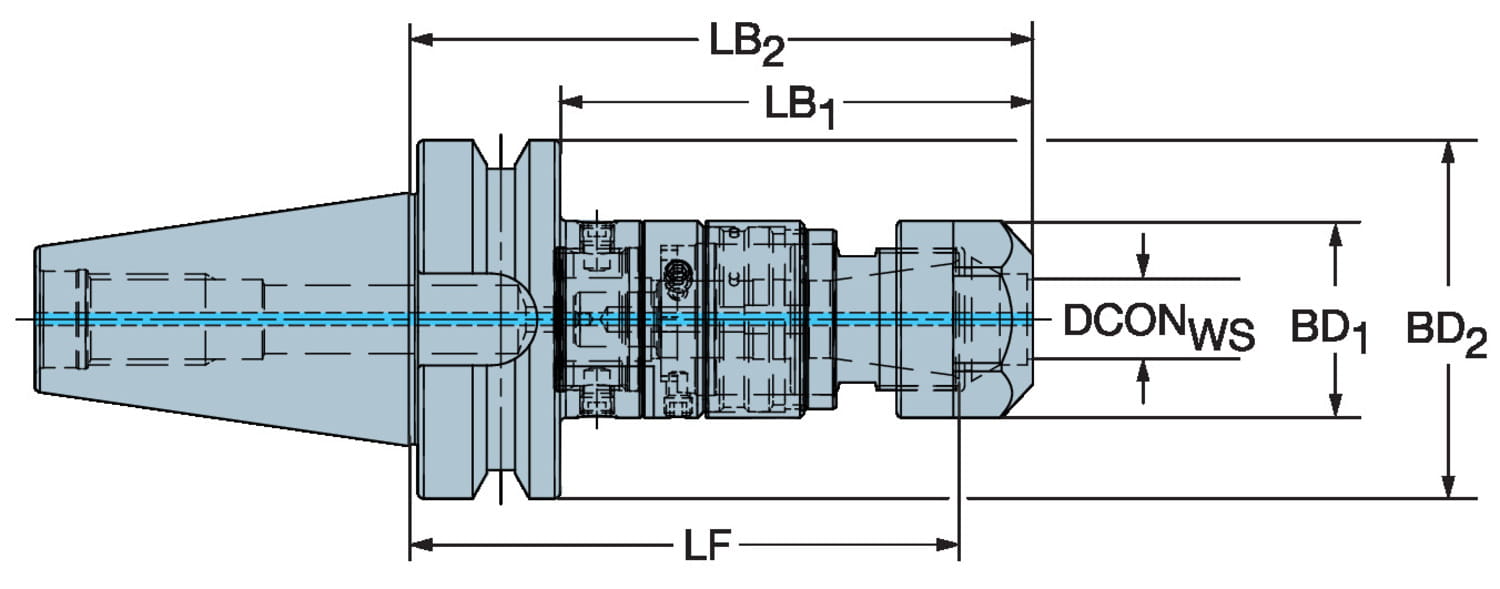

| Wymiary | |
| Dconws Connection Diameter | 1.6063 inch |
| Dconws Connection Diameter | 40.8 mm |
| Dfccsw Functional Diameter | 1.5748 inch |
| Dfccsw Functional Diameter | 40 mm |
| Lf Functional Length | 6.18898 inch |
| Lf Functional Length | 157.2 mm |
| Waga | 12.983 lb |
| Waga | 5.889 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | BIG+/MAS-BT403 -AD/B central/flange coolant - BT50 |
| Adintws Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) for tapping -ER40 |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Rpmx Rotational Speed Maximum | 8000 1/min |
| Inne parametry | |
| Ean Number | 7323220784158 |
