Adapter ze złącza CAT-V na złącze ISO 9766 AA3B27-5051110 ID:5721555 Sandvik
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

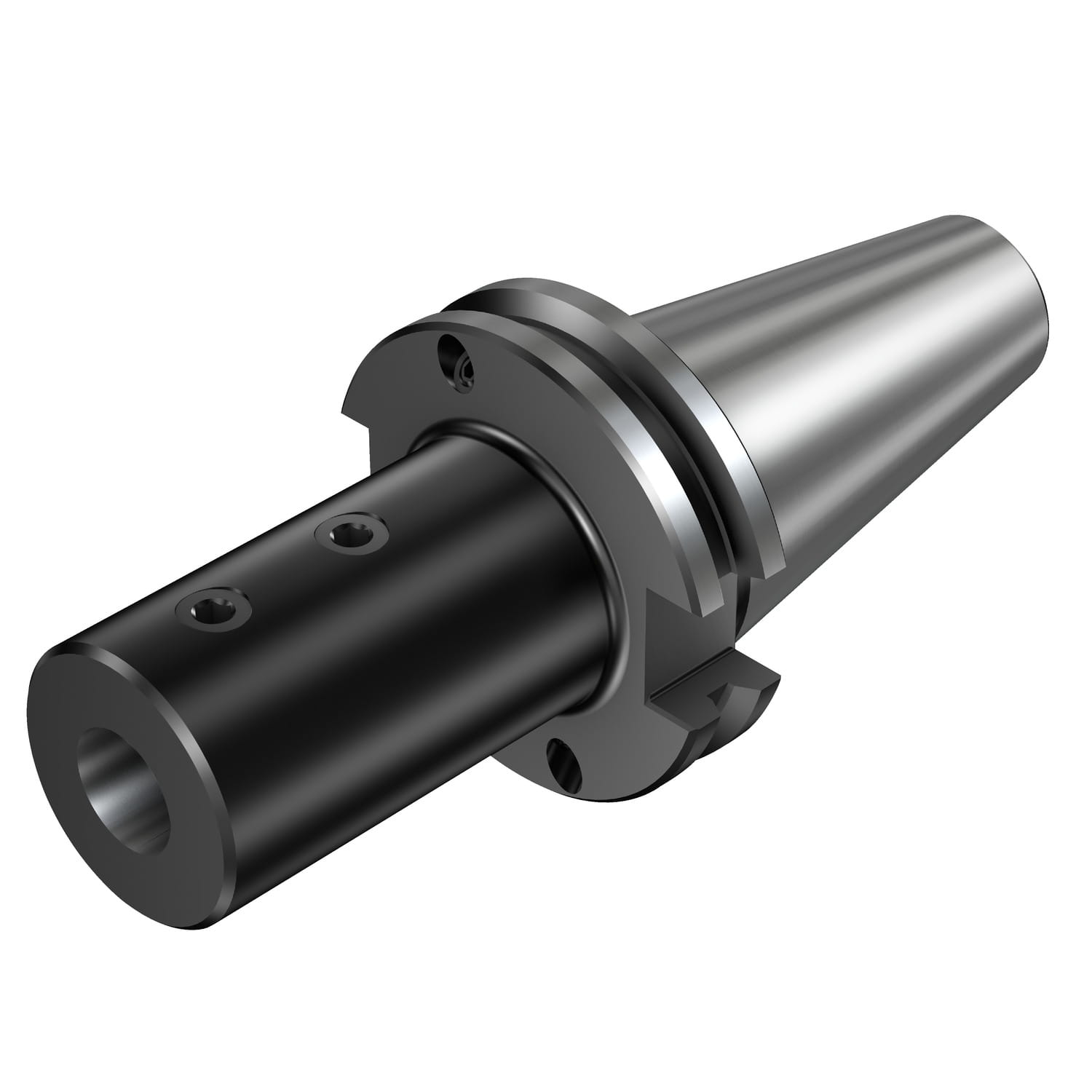

Adapter ze złącza CAT-V na złącze ISO 9766

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza CAT-V na złącze ISO 9766 |
| Rodzina produktów | 2099 |
| Product Subfamily Code (Tsyc) | AA3B27 (2) |
| Rodzina produktów | System Products |
| Country Of Origin | SI |

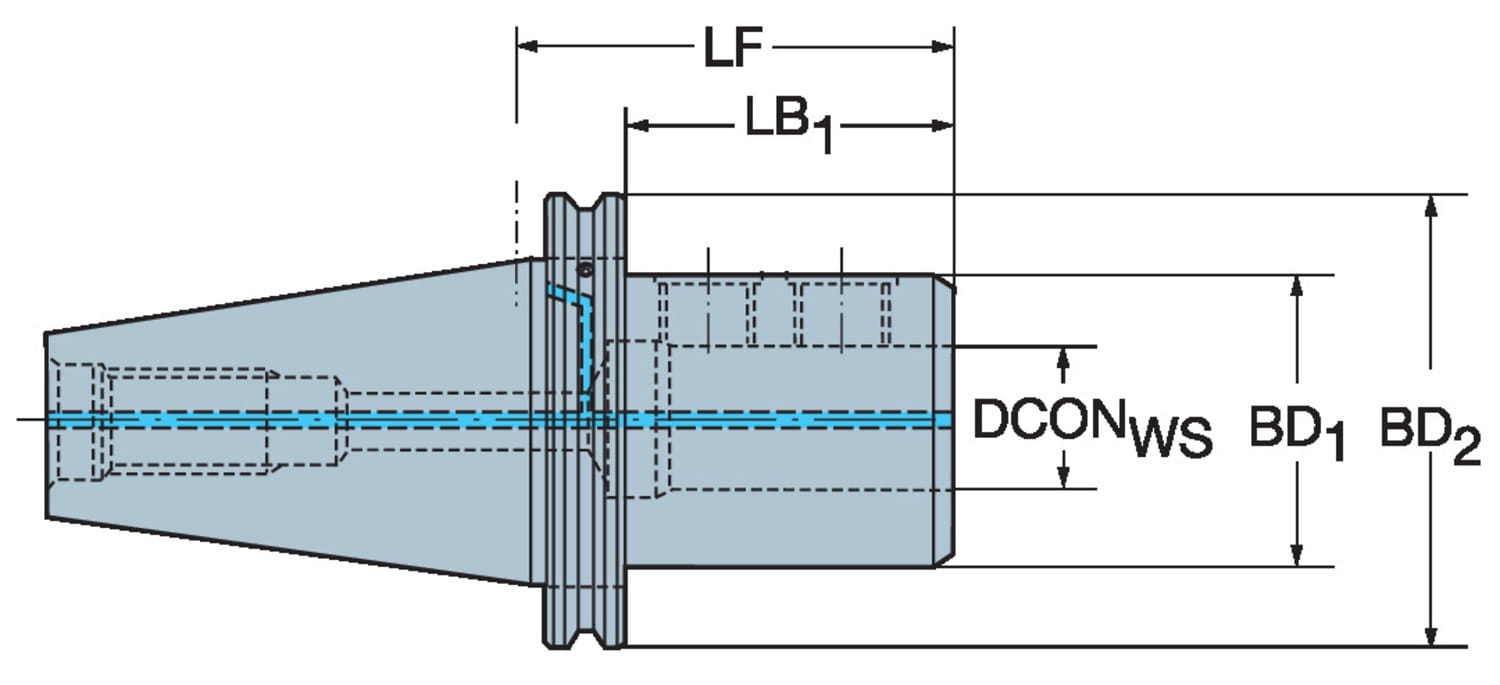

| Wymiary | |
| Dconws Connection Diameter | 2 inch |
| Dconws Connection Diameter | 50.8 mm |
| Dfc Functional Diameter | 2.75 inch |
| Dfc Functional Diameter | 69.85 mm |
| Lf Functional Length | 4.33071 inch |
| Lf Functional Length | 110 mm |
| Waga | 9.6783 lb |
| Waga | 4.39 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | CAT-V -AD/B central/flange coolant - CAT-V50 |
| Adintws Adaptive Interface Workpiece Direction | Cylindrical clamping (ISO9766 drill shank) -inch: 2 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | yes |
| Dcps Data Chip Provision Size | D10/H4,5 |
| Dpc Damping Property | no |
| Rpmx Rotational Speed Maximum | 12000 1/min |
| Inne parametry | |
| Ean Number | 12455505 |
