Adapter ze złącza HSK na imak do listew HT06-APBL-175-25HP ID:7086887 Sandvik
Dostępność:
duża ilość
Cena brutto:
4 134,95 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 361,75 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 864,65 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7086887
Opis

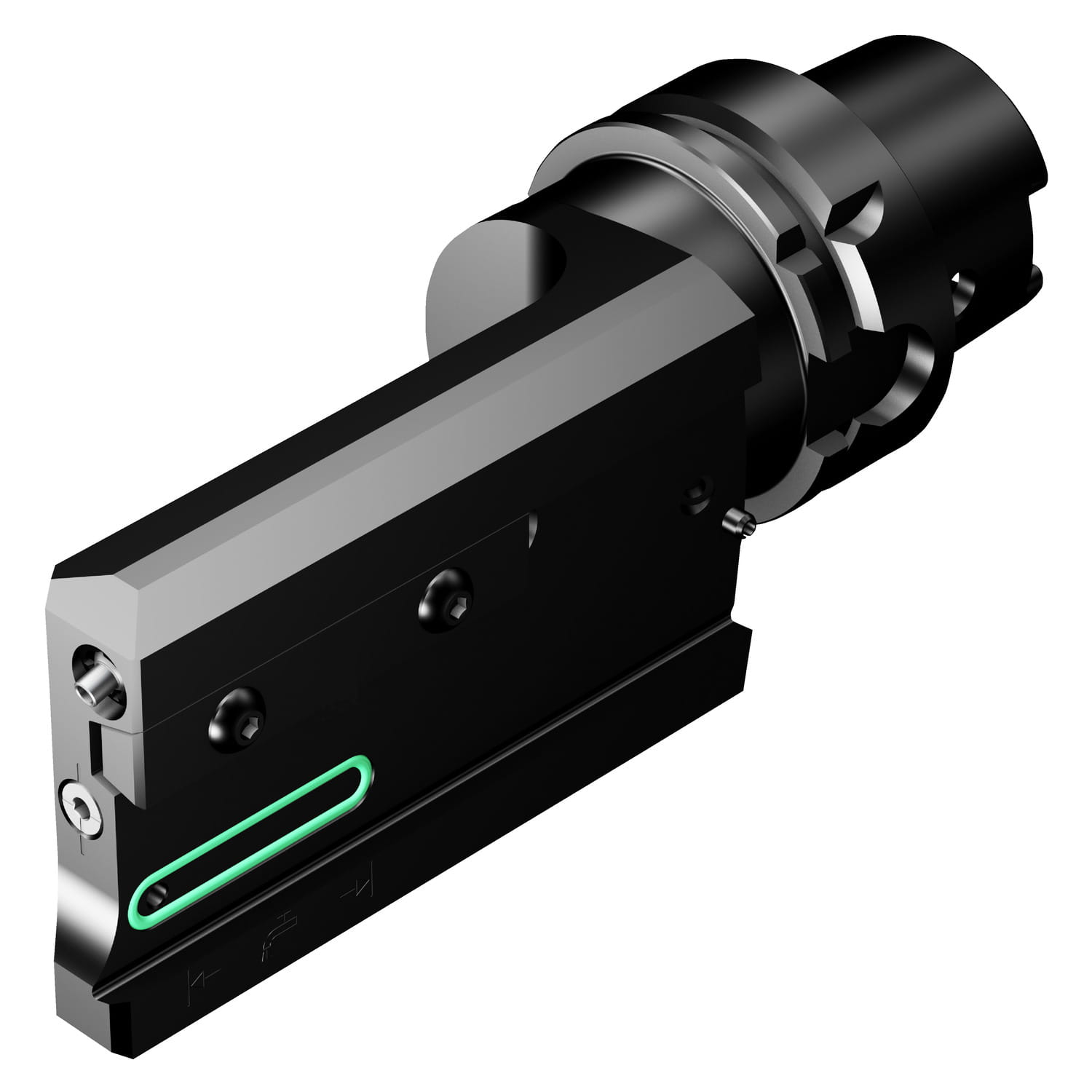

Adapter ze złącza HSK na imak do listew
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza HSK na imak do listew |
| Rodzina produktów | 2099 |
| Product Subfamily Code (Tsyc) | HTxx-APBR/L..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | DE |

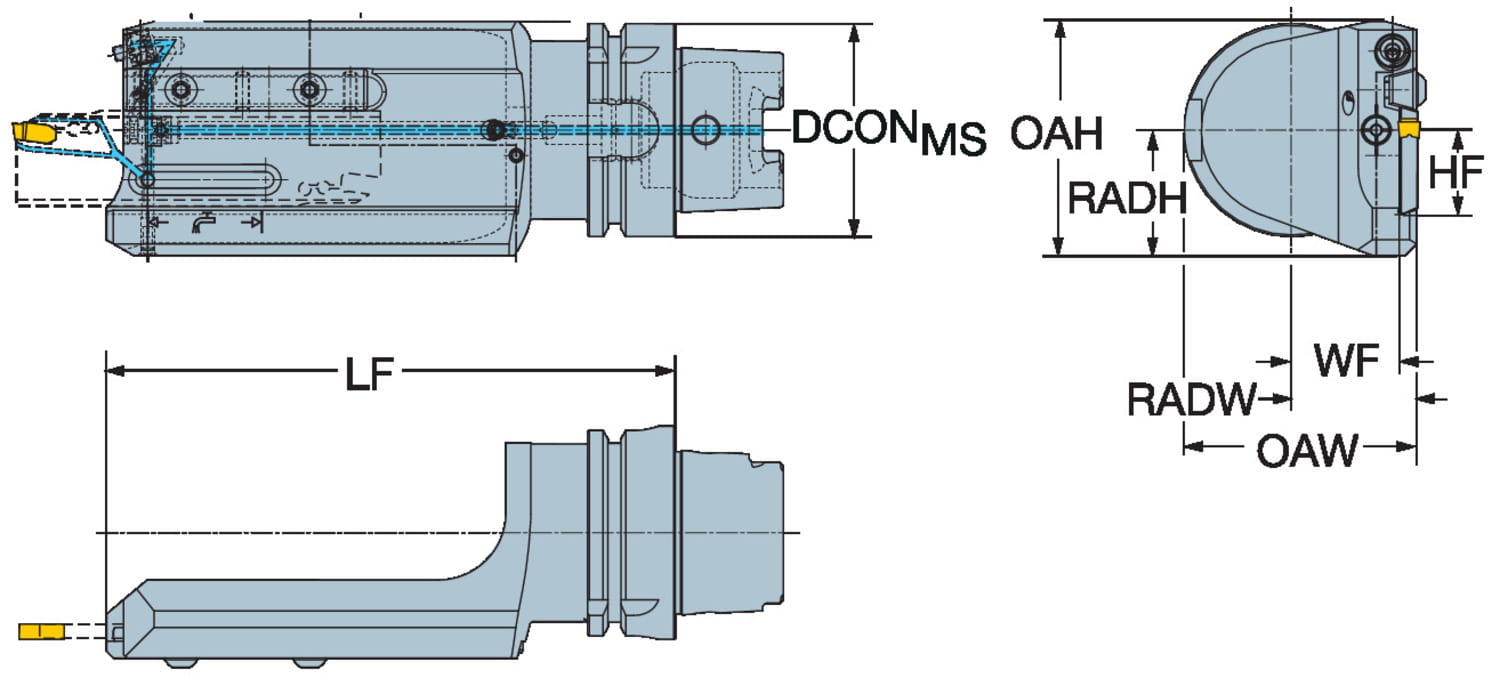

| Wymiary | |
| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |
| Lf Functional Length | 6.88976 inch |
| Lf Functional Length | 175 mm |
| Oah Overall Height | 2.71654 inch |
| Oah Overall Height | 69 mm |
| Oaw Overall Width | 2.71654 inch |
| Oaw Overall Width | 69 mm |
| Waga | 5.51156 lb |
| Waga | 2.5 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | HSK -T -size 63 |
| Adintws Adaptive Interface Workpiece Direction | Parting off and grooving blade -size 25L |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cxsc Coolant Exit Style Code | 6: decentral exit with nozzles, adjustable |
| Dcp Data Chip Provision | yes |
| Dcps Data Chip Provision Size | D10/H4,5 |
| Dpc Damping Property | no |
| Hand Hand | L |
| Ohx Maximum Overhang | 6.88976 inch |
| Ohx Maximum Overhang | 175 mm |
| Inne parametry | |
| Ean Number | 7323221217044 |
