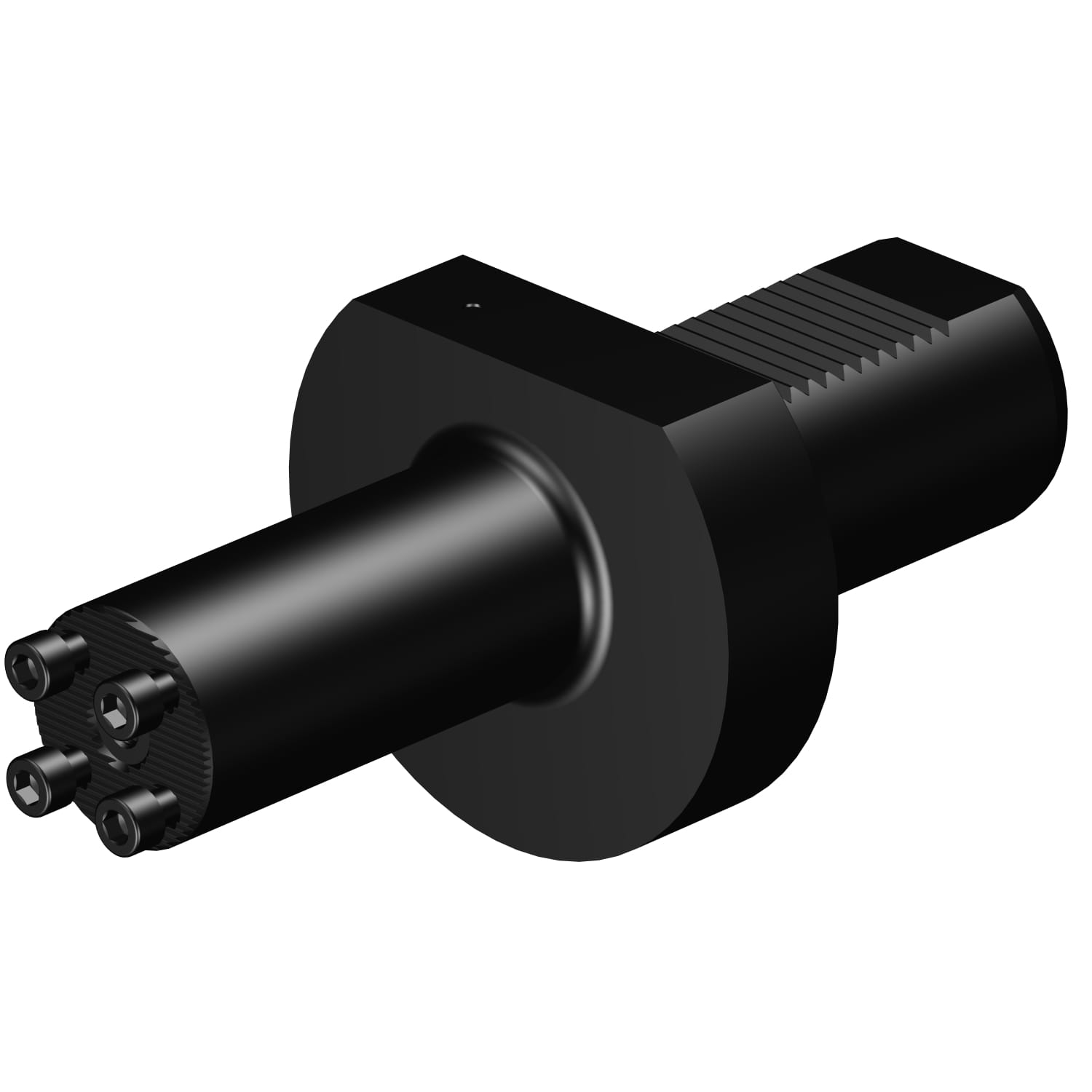

Adapter ze złącza VDI na złącze CoroTurn® SL VDI50-40-SL40N109 ID:7628239 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 800,39 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 089,75 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 471,05 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7628239
Opis
Adapter ze złącza VDI na złącze CoroTurn® SL
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza VDI na złącze CoroTurn® SL |
| Rodzina produktów | 1075 |
| Product Subfamily Code (Tsyc) | VDIxx..SLxxN |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

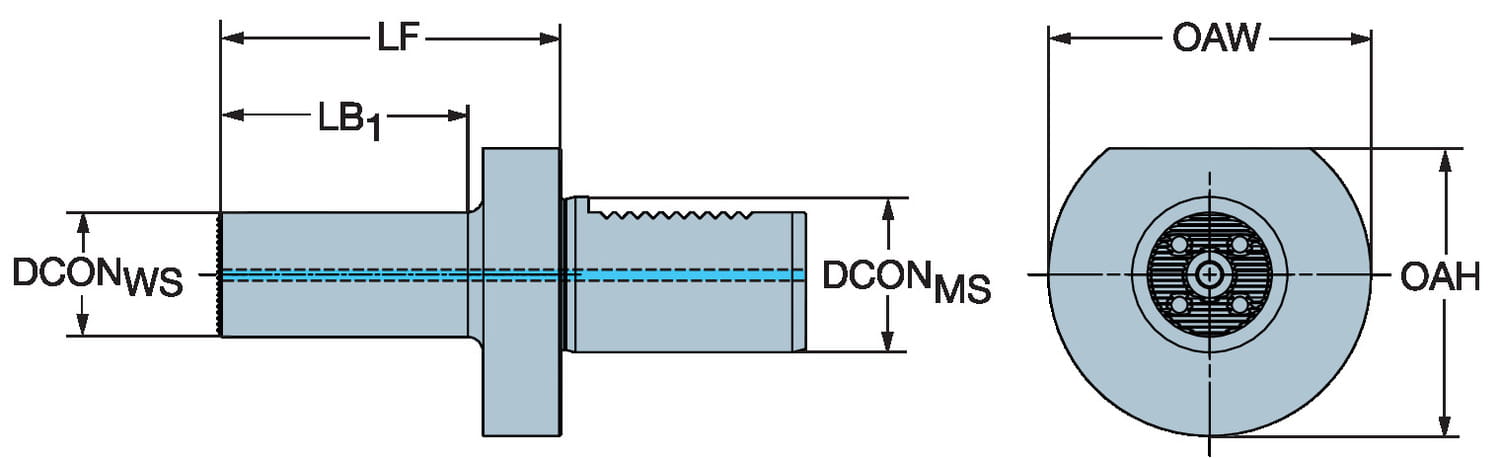

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dconws Connection Diameter | 1.5748 inch |
| Dconws Connection Diameter | 40 mm |
| Lf Functional Length | 4.29134 inch |
| Lf Functional Length | 109 mm |
| Oah Overall Height | 3.30709 inch |
| Oah Overall Height | 84 mm |
| Oaw Overall Width | 3.85827 inch |
| Oaw Overall Width | 98 mm |
| Waga | 7.82642 lb |
| Waga | 3.55 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | VDI machine interface -size 50 |
| Adintws Adaptive Interface Workpiece Direction | SL (screw mounted) -straight -size 40 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | yes |
| Dcps Data Chip Provision Size | D10/H4,5 |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 4.29134 inch |
| Ohx Maximum Overhang | 109 mm |
| Inne parametry | |
| Ean Number | 7323223993380 |
