Adapter ze złącza VDI na złącze Coromant Capto® C3-NC3000-V30-035 ID:6884856 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 246,28 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 639,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 819,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6884856
Opis

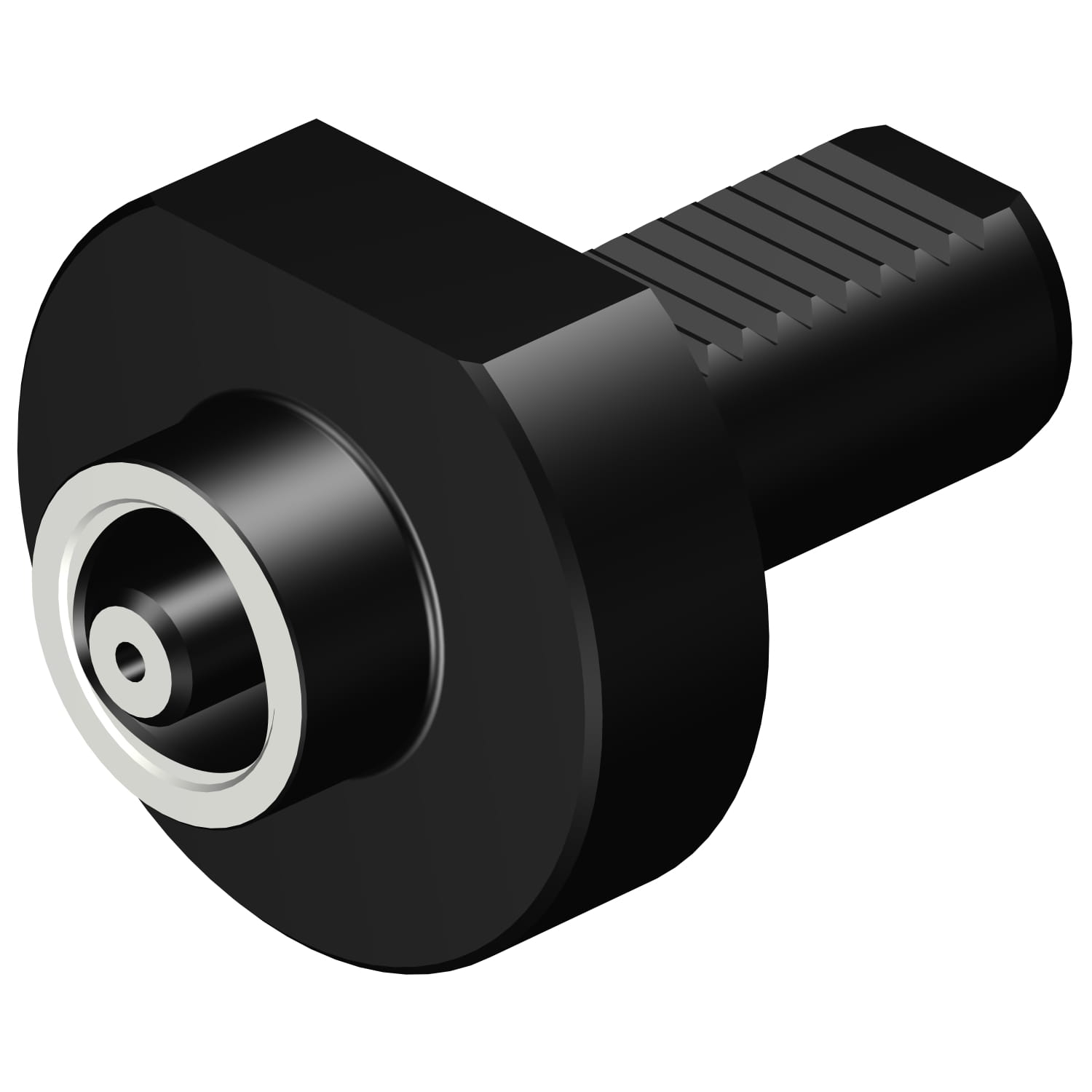

Adapter ze złącza VDI na złącze Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza VDI na złącze Coromant Capto® |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC3000-V |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

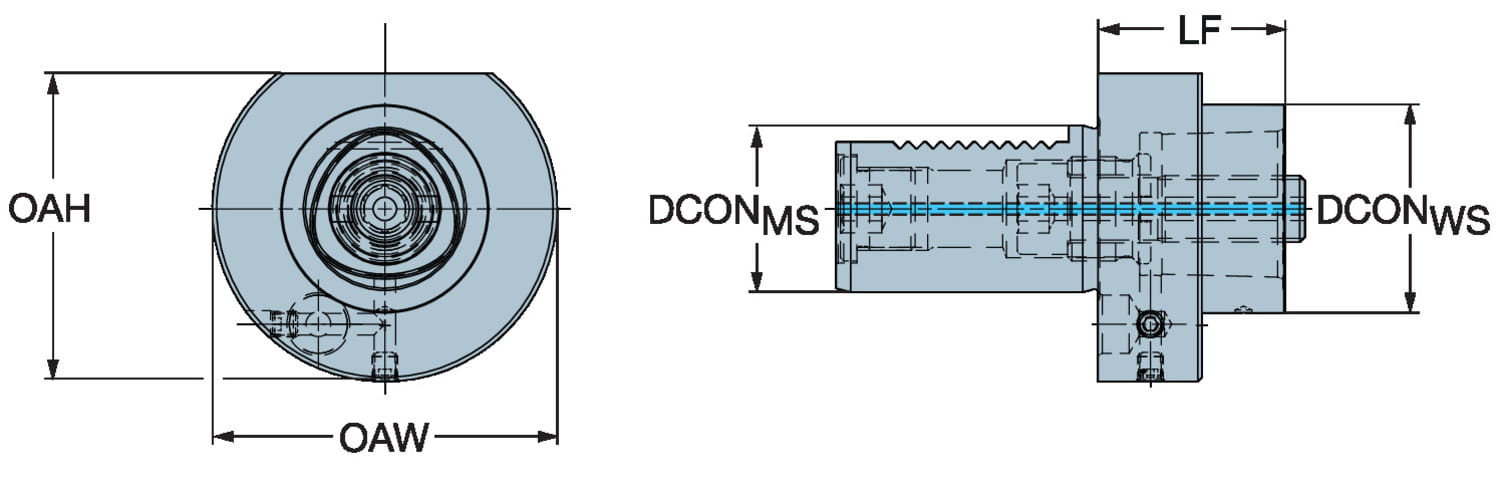

| Wymiary | |
| Dconms Connection Diameter | 1.1811 inch |
| Dconms Connection Diameter | 30 mm |
| Dconws Connection Diameter | 1.25984 inch |
| Dconws Connection Diameter | 32 mm |
| Dfc Functional Diameter | 0.866142 inch |
| Dfc Functional Diameter | 22 mm |
| Lf Functional Length | 1.37795 inch |
| Lf Functional Length | 35 mm |
| Oah Overall Height | 2.44094 inch |
| Oah Overall Height | 62 mm |
| Oaw Overall Width | 2.67717 inch |
| Oaw Overall Width | 68 mm |
| Waga | 1.84748 lb |
| Waga | 838 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | VDI machine interface -size 30 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (bolt clamping) -size C3 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 1.37795 inch |
| Ohx Maximum Overhang | 35 mm |
| Inne parametry | |
| Ean Number | 7323220353095 |
