Adapter ze złącza VDI na złącze Coromant Capto® C4-NC3000-V40-030 ID:6538647 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 246,28 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 639,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 819,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6538647
Opis

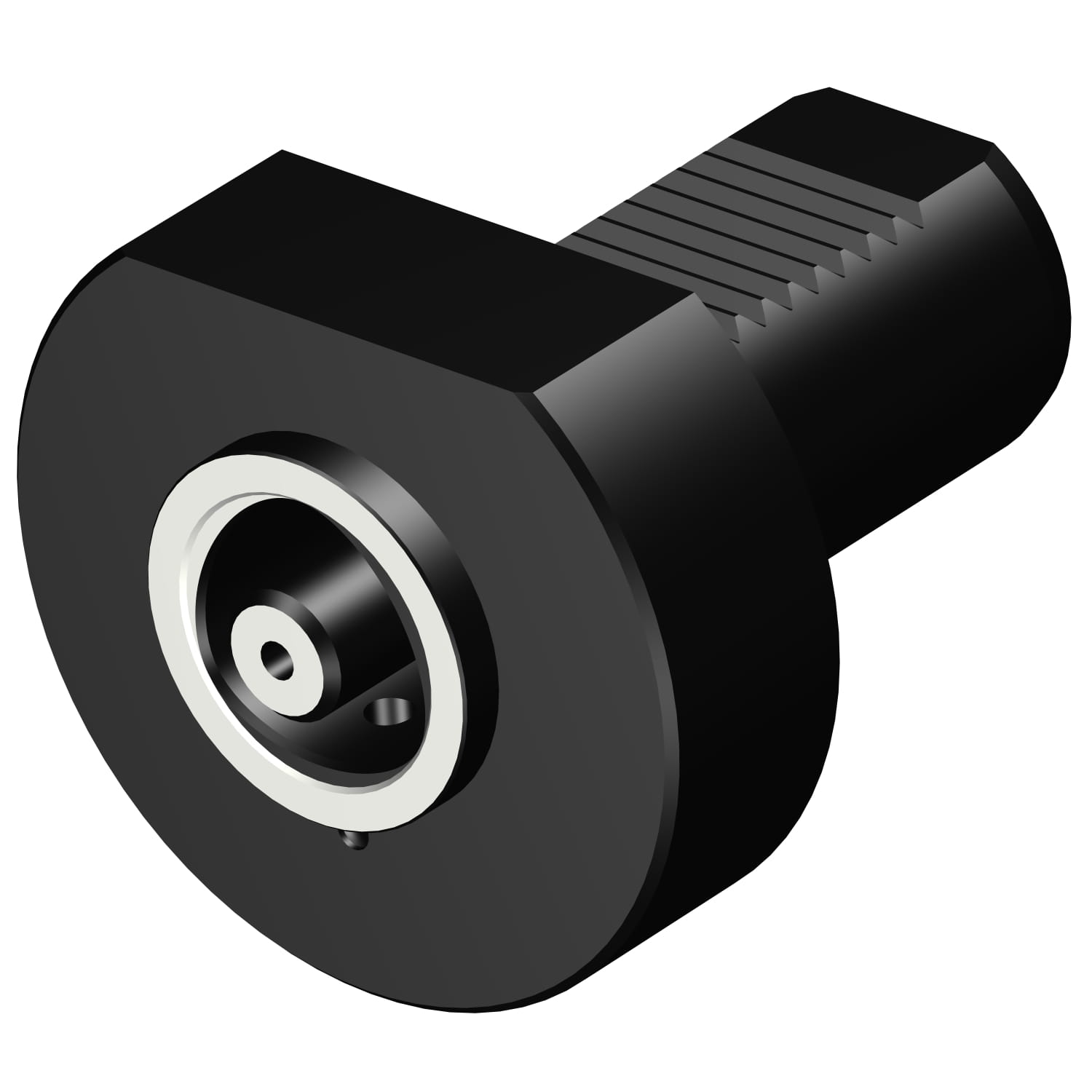

Adapter ze złącza VDI na złącze Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza VDI na złącze Coromant Capto® |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC3000-V |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

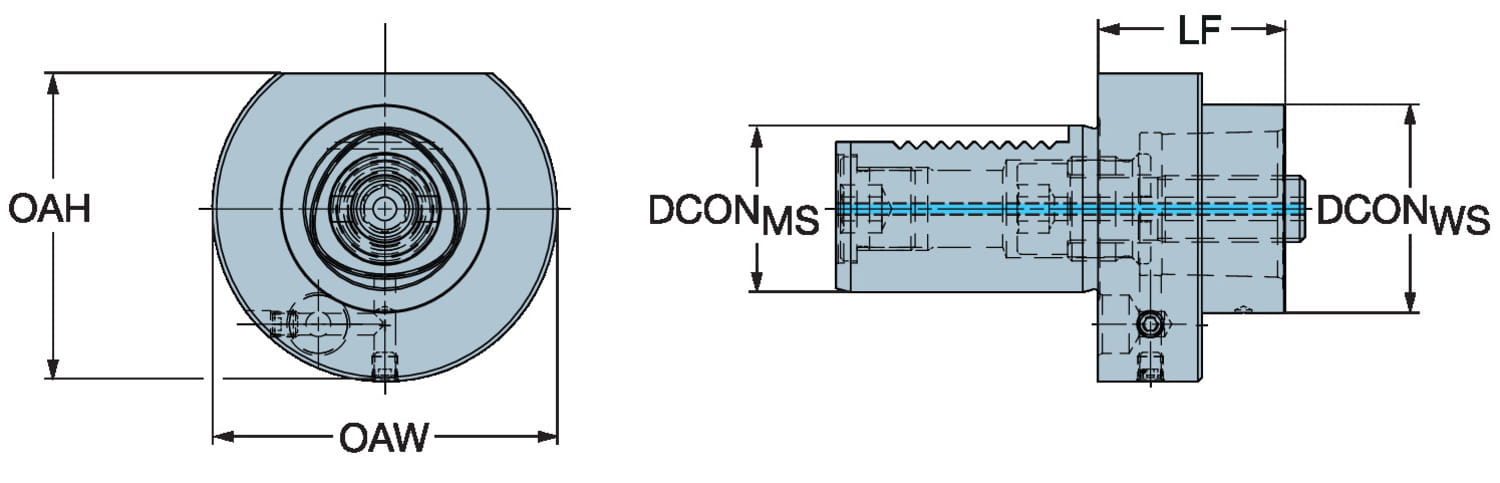

| Wymiary | |
| Dconms Connection Diameter | 1.5748 inch |
| Dconms Connection Diameter | 40 mm |
| Dconws Connection Diameter | 1.5748 inch |
| Dconws Connection Diameter | 40 mm |
| Dfc Functional Diameter | 1.10236 inch |
| Dfc Functional Diameter | 28 mm |
| Lf Functional Length | 1.1811 inch |
| Lf Functional Length | 30 mm |
| Oah Overall Height | 2.91339 inch |
| Oah Overall Height | 74 mm |
| Oaw Overall Width | 3.26772 inch |
| Oaw Overall Width | 83 mm |
| Waga | 3.21434 lb |
| Waga | 1.458 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | VDI machine interface -size 40 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (bolt clamping) -size C4 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 1.1811 inch |
| Ohx Maximum Overhang | 30 mm |
| Inne parametry | |
| Ean Number | 26538647 |
