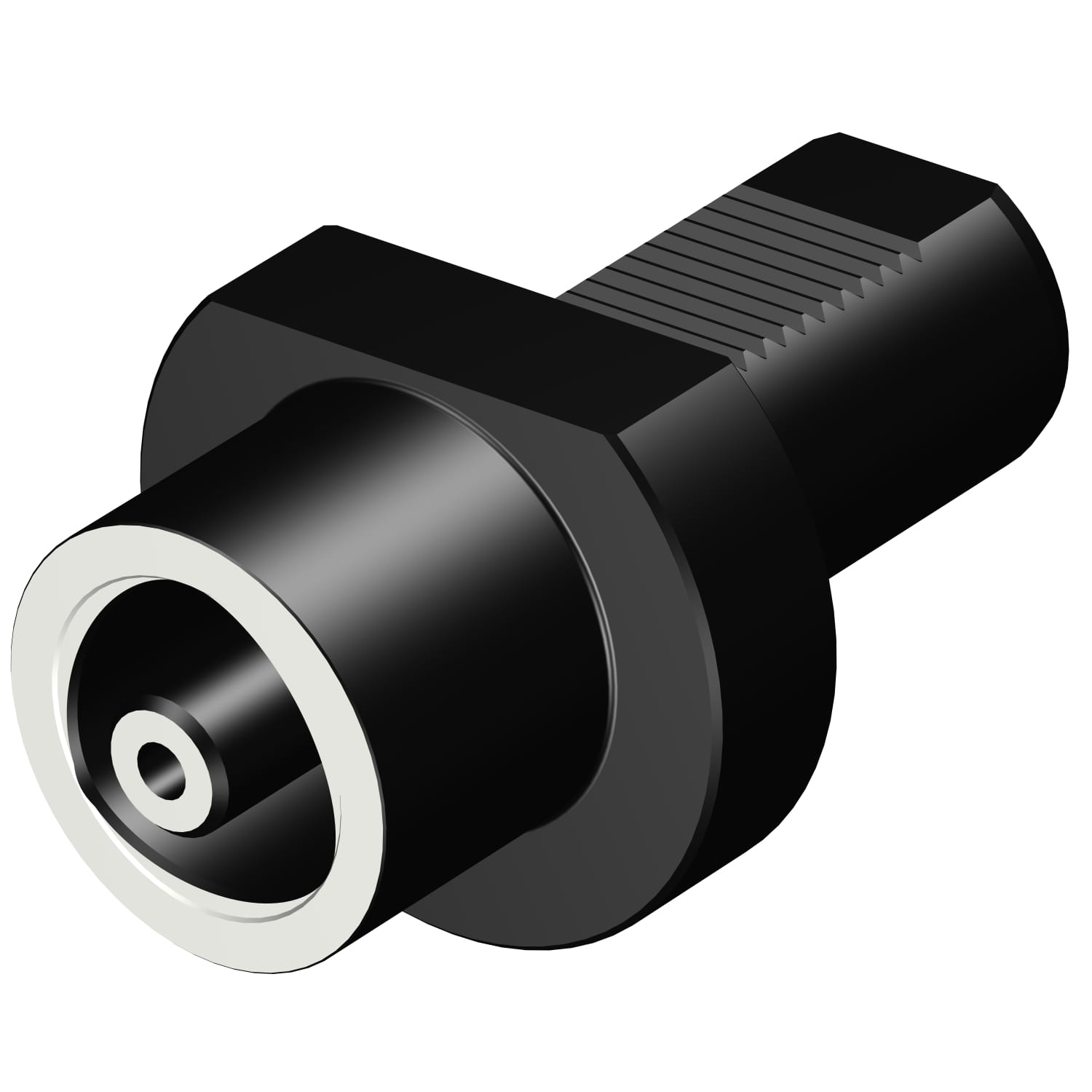

Adapter ze złącza VDI na złącze Coromant Capto® C6-NC3000-V50-070 ID:6538649 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 836,99 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 119,50 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 514,10 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6538649
Opis
Adapter ze złącza VDI na złącze Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza VDI na złącze Coromant Capto® |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC3000-V |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

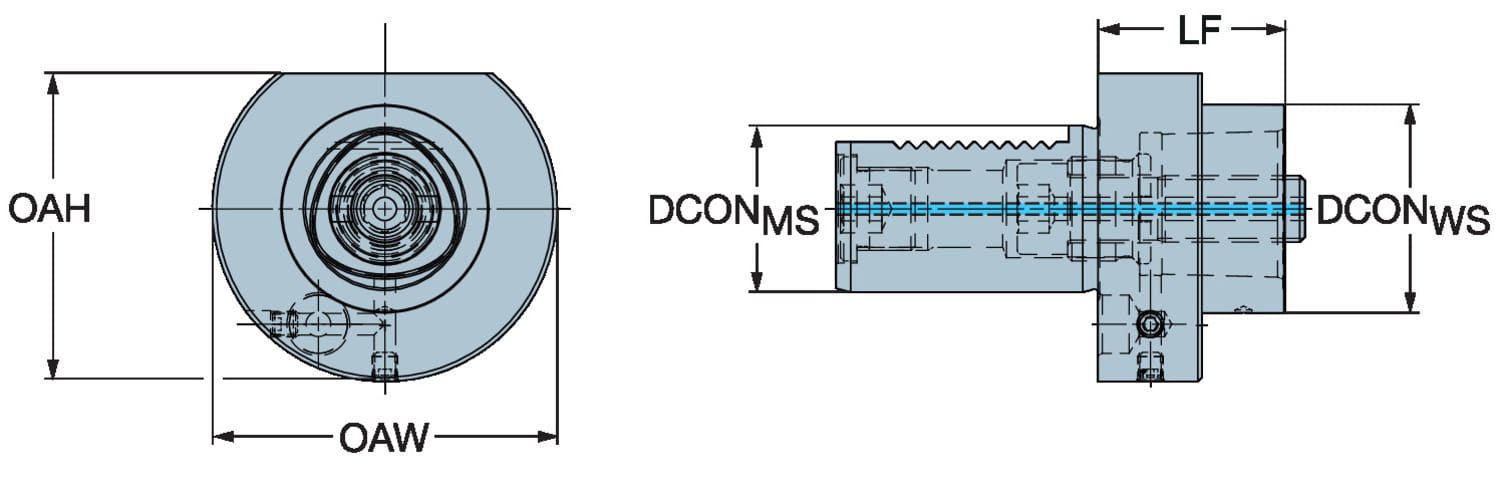

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dconws Connection Diameter | 2.48031 inch |
| Dconws Connection Diameter | 63 mm |
| Dfc Functional Diameter | 1.73228 inch |
| Dfc Functional Diameter | 44 mm |
| Lf Functional Length | 2.75591 inch |
| Lf Functional Length | 70 mm |
| Oah Overall Height | 3.30709 inch |
| Oah Overall Height | 84 mm |
| Oaw Overall Width | 3.85827 inch |
| Oaw Overall Width | 98 mm |
| Waga | 6.84095 lb |
| Waga | 3.103 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | VDI machine interface -size 50 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (bolt clamping) -size C6 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 2.75591 inch |
| Ohx Maximum Overhang | 70 mm |
| Inne parametry | |
| Ean Number | 26538649 |
