Adapter ze złącza VDI na złącze Coromant Capto® C8-NC3000-V60-085 ID:6538791 Sandvik
Dostępność:
duża ilość
Cena brutto:
4 197,68 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 412,75 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 938,45 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6538791
Opis

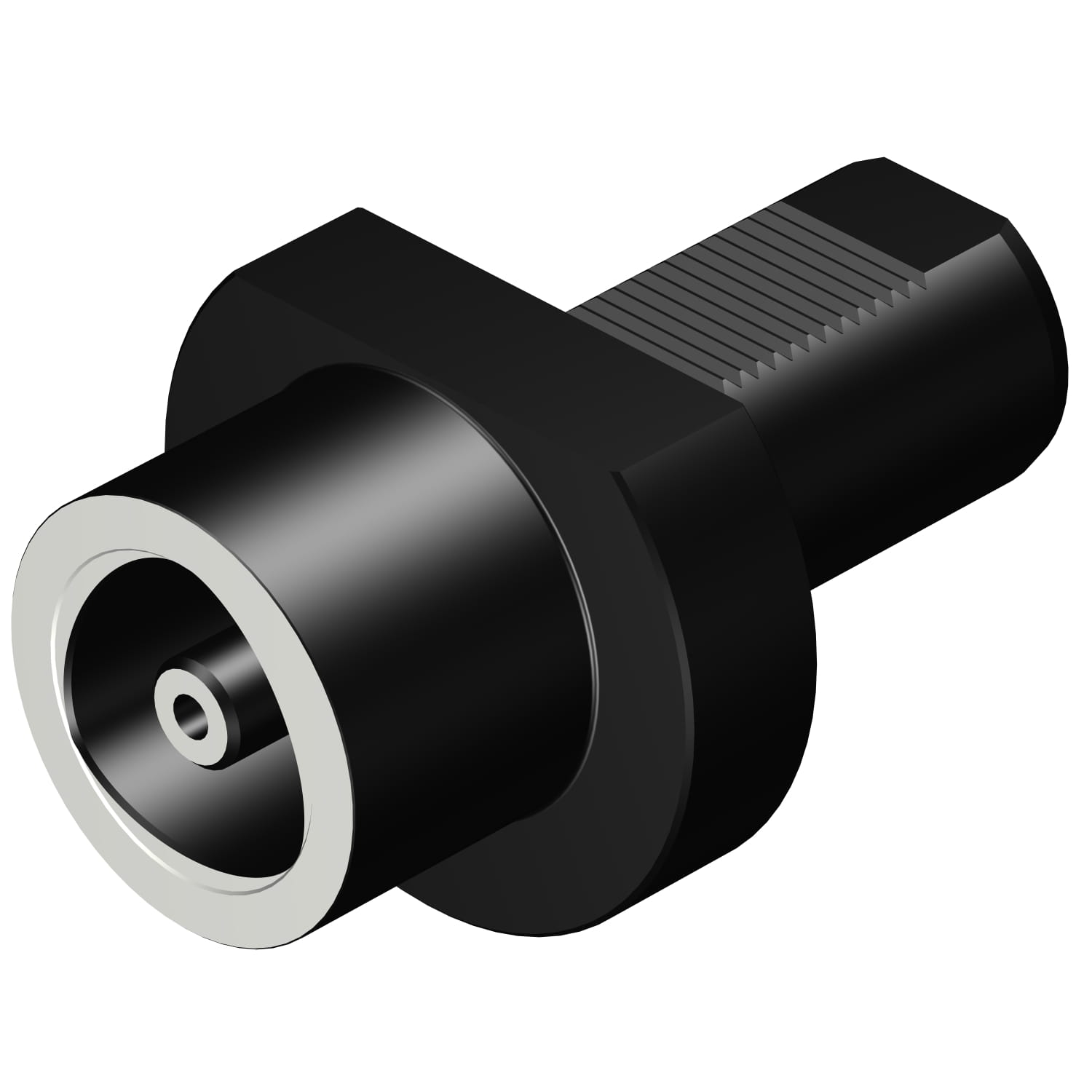

Adapter ze złącza VDI na złącze Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Adapter ze złącza VDI na złącze Coromant Capto® |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC3000-V |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

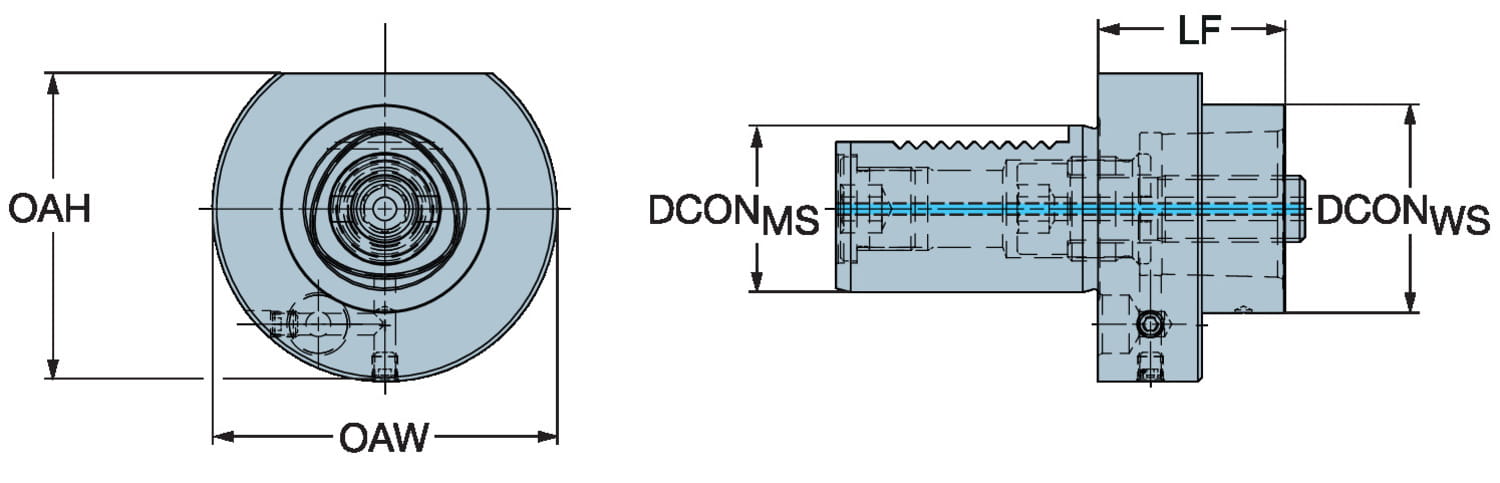

| Wymiary | |
| Dconms Connection Diameter | 2.3622 inch |
| Dconms Connection Diameter | 60 mm |
| Dconws Connection Diameter | 3.14961 inch |
| Dconws Connection Diameter | 80 mm |
| Dfc Functional Diameter | 2.16535 inch |
| Dfc Functional Diameter | 55 mm |
| Lf Functional Length | 3.34646 inch |
| Lf Functional Length | 85 mm |
| Oah Overall Height | 4.09449 inch |
| Oah Overall Height | 104 mm |
| Oaw Overall Width | 4.84252 inch |
| Oaw Overall Width | 123 mm |
| Waga | 12.3679 lb |
| Waga | 5.61 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | VDI machine interface -size 60 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (bolt clamping) -size C8 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 7: decentral over flange and axial |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 3.34646 inch |
| Ohx Maximum Overhang | 85 mm |
| Inne parametry | |
| Ean Number | 26538791 |
