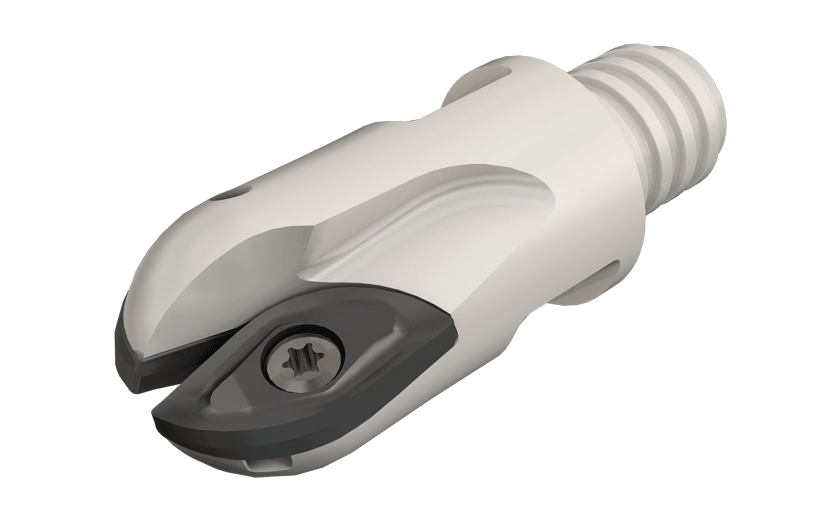

BCM D.75-MMT12-DROPMILL, Ball nose endmills with MULTI-MASTER threaded adaptation that mount tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges.
Dostępność:
duża ilość
Cena brutto:
1 013,94 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
824,34 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 126,60 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3104293
Opis
BCM D.75-MMT12
| Podstawowe informacje | |
|---|---|
| FamilyName | BCM-MM |
| ToolType | Tool |
| Unit | I |
| PackSize | 1 |
| product_code | ISC3104293 |
| ProductName | BCM D.75-MMT12 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242106 |
| FamilyDesc | DROPMILL, Ball nose endmills with MULTI-MASTER threaded adaptation that mount tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges. |
| FamilyShortDesc | Ball Nose Endmills with MULTI-MASTER Threaded Adaptation that Mount Tangent Straight Edge Inserts for Finish Profiling |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3104293 |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, click on More Info |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| APP1Name | Helical Interpolation |
| APP2Name | Plunging & Recessing |
| APP3Name | Profiling |
| APP4Name | Rampdown |
| ItemRemark | |
| Tool Type | Ball nose endmills |
| Point Shape | |
| Measurement Type | Inch |
| Thread Standard | |
| Package Weight | 0.2668 |
| Style | |
| MSDS | 07995 |
| LocalField1 | 2 |
| Body Material | Steel |
| ManufacturerNo | 3104293 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 0.72" |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.37" |
| Cutting Diameter (DC) | 3/4" |
| Cutting Diameter (DC/DCX) | 3/4" |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 2 |
| Depth of Cut Maximum (APMX) | 0.61" |
| Drive Size (DRVS) | 0.56" |
| Functional Length (LF) | 1.38" |
| Master Insert Identification (MIID) | BCR D.75-QT |
| Overall Length (OAL) | 1.902" |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
