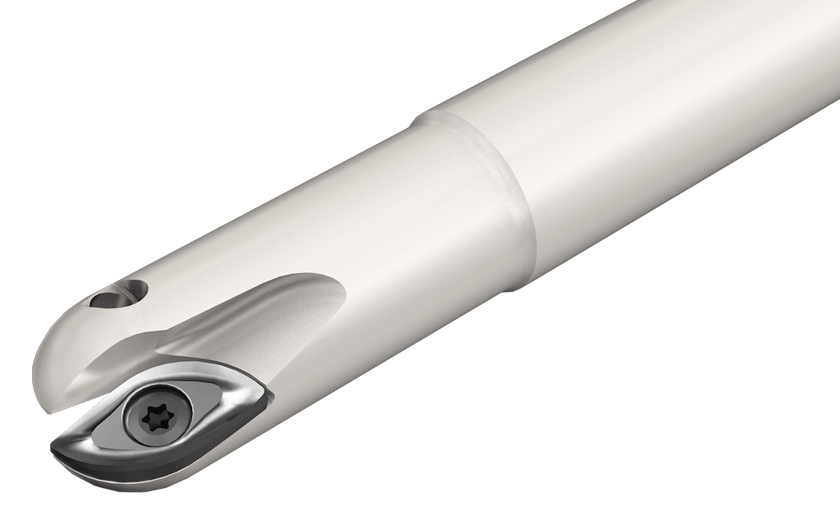

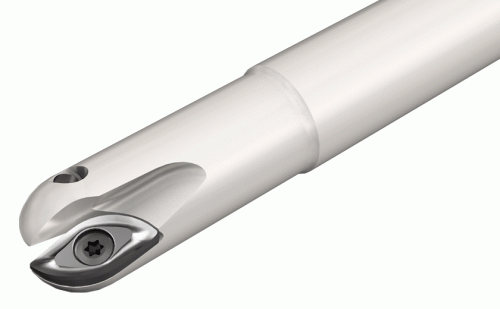

BCM D20-B-C25-CC-DROPMILL, Ball nose endmills carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges even at small depths of cut
Dostępność:
duża ilość
Cena brutto:
1 265,49 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 028,85 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 406,10 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3381960
Opis
BCM D20-B-C25-CC
| Podstawowe informacje | |
|---|---|
| FamilyName | BCM |
| ToolType | Tool |
| Unit | M |
| PackSize | 1 |
| product_code | ISC3381960 |
| ProductName | BCM D20-B-C25-CC |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242106 |
| FamilyDesc | DROPMILL, Ball nose endmills carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges even at small depths of cut |
| FamilyShortDesc | Ball Nose Endmills with Tangent Straight Edge Inserts for Finish Profiling |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3381960 |
| Remarks | For adaptation, click on More Info |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| APP1Name | Helical Interpolation |
| APP2Name | Plunging & Recessing |
| APP3Name | Profiling |
| APP4Name | Rampdown |
| ItemRemark | The product features center-cutting capabilities |
| Tool Type | Ball nose endmills |
| Point Shape | |
| Measurement Type | Metric |
| Thread Standard | |
| Package Weight | 0.6530 |
| Style | |
| MSDS | 07995 |
| LocalField1 | 2 |
| Body Material | Steel |
| ManufacturerNo | 3381960 |
| Body Half Taper Angle (BHTA) | 1.5 Degrees |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Corner Radius (RE) | 10 mm |
| Cutting Diameter (DC) | 20 mm |
| Cutting Diameter (DC/DCX) | 20 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 2 |
| Depth of Cut Maximum (APMX) | 17 mm |
| Front Type | B |
| Functional Length (LF) | 200 mm |
| Head Length (LH) | 90 mm |
| Master Insert Identification (MIID) | BCR D200-QT |
| Overall Length (OAL) | 200 mm |
| Shank Type | Round |
