BLR D1.0-MFW IC830-Round segment double-sided inserts for ball nose milling cutters

Dostępność: duża ilość

Cena brutto: 126,55 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

126.55

Cena netto: 102,89 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 140,61 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393642

BLR D1.0-MFW IC830

Podstawowe informacje
FamilyName	BLR
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC3393642
ProductName	BLR D1.0-MFW IC830
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Round segment double-sided inserts for ball nose milling cutters
FamilyShortDesc	Round Segment Double-Sided Inserts for Ball Nose Milling Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3393642

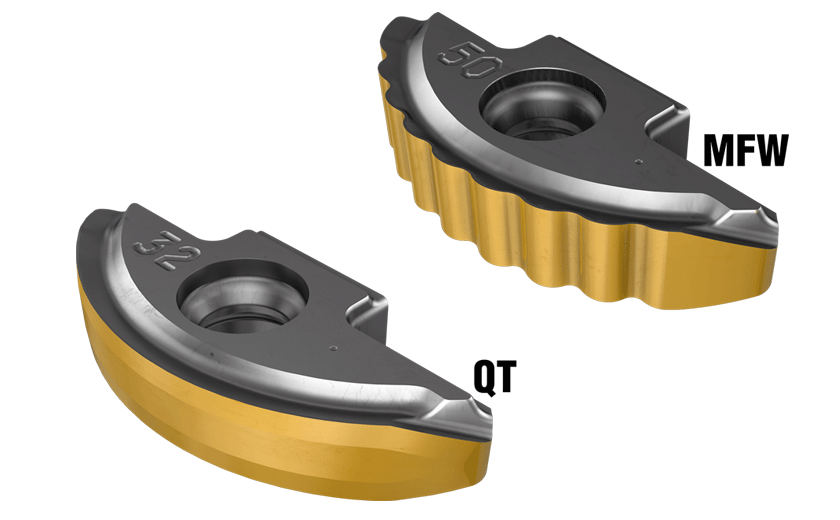

Remarks	MFW - Serrated cutting edge for roughing operations QT - Round edge for finishing applications
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \|
APP1Name	Drill Mill
APP2Name	Helical Interpolation
APP3Name	Plunging & Recessing
APP4Name	Profiling
APP5Name	Rampdown
ItemRemark
Coating	AlTiN+TiN
Cutting Edge Material	Carbide
Tool Type	Double sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0134
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3393642
Grade	IC830
Corner Radius (RE)	1/2"
Cutting Direction (HAND)	Neutral
Insert Length (INSL)	0.818"
Insert Thickness (S)	0.15"
Insert Width (W1)	0.357"
Maximum Feed per Tooth (fz(max))	0.006 "/tooth
Minimum Feed per Tooth (fz(min))	0.003 "/tooth
