BLR D1.25-QT IC808-Round segment double-sided inserts for ball nose milling cutters

Dostępność: duża ilość

Cena brutto: 146,67 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

146.67

Cena netto: 119,24 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 162,97 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393645

BLR D1.25-QT IC808

Podstawowe informacje
FamilyName	BLR
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC3393645
ProductName	BLR D1.25-QT IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Round segment double-sided inserts for ball nose milling cutters
FamilyShortDesc	Round Segment Double-Sided Inserts for Ball Nose Milling Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3393645

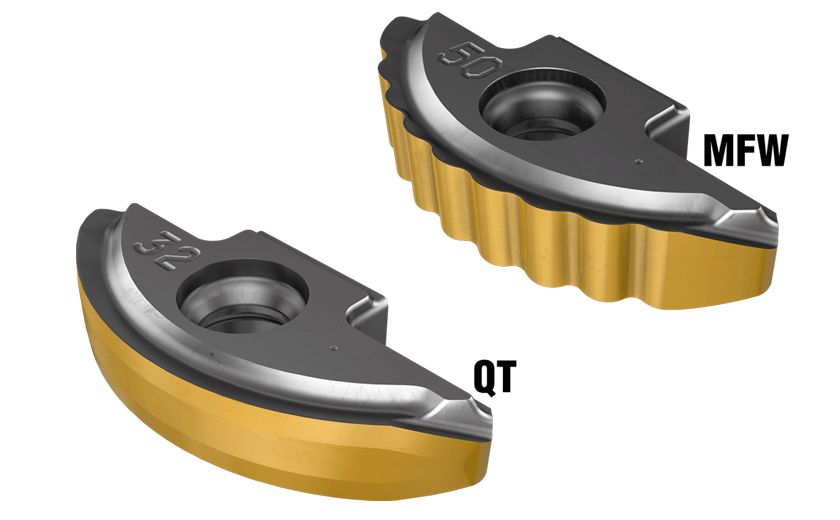

Remarks	MFW - Serrated cutting edge for roughing operations QT - Round edge for finishing applications
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \|
APP1Name	Drill Mill
APP2Name	Helical Interpolation
APP3Name	Plunging & Recessing
APP4Name	Profiling
APP5Name	Rampdown
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Tool Type	Double sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0262
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3393645
Grade	IC808
Corner Radius (RE)	5/8"
Cutting Direction (HAND)	Neutral
Insert Length (INSL)	1.025"
Insert Thickness (S)	0.18"
Insert Width (W1)	0.427"
Maximum Feed per Tooth (fz(max))	0.006 "/tooth
Minimum Feed per Tooth (fz(min))	0.003 "/tooth
