BLR D2.00-MFW IC830-Round segment double-sided inserts for ball nose milling cutters

Dostępność: duża ilość

Cena brutto: 381,61 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

381.61

Cena netto: 310,25 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 296,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393648

BLR D2.00-MFW IC830

Podstawowe informacje
FamilyName	BLR
ToolType	Insert
Unit	I
PackSize	5
product_code	ISC3393648
ProductName	BLR D2.00-MFW IC830
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Round segment double-sided inserts for ball nose milling cutters
FamilyShortDesc	Round Segment Double-Sided Inserts for Ball Nose Milling Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3393648

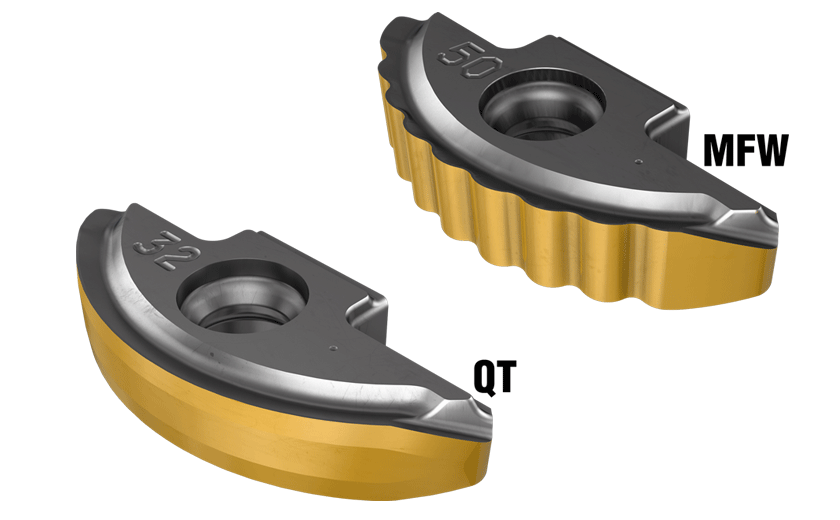

Remarks	MFW - Serrated cutting edge for roughing operations QT - Round edge for finishing applications
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \|
APP1Name	Drill Mill
APP2Name	Helical Interpolation
APP3Name	Plunging & Recessing
APP4Name	Profiling
APP5Name	Rampdown
ItemRemark
Coating	AlTiN+TiN
Cutting Edge Material	Carbide
Tool Type	Double sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.1032
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3393648
Grade	IC830
Corner Radius (RE)	1"
Cutting Direction (HAND)	Neutral
Insert Length (INSL)	1.637"
Insert Thickness (S)	0.29"
Insert Width (W1)	0.714"
Maximum Feed per Tooth (fz(max))	0.006 "/tooth
Minimum Feed per Tooth (fz(min))	0.003 "/tooth
