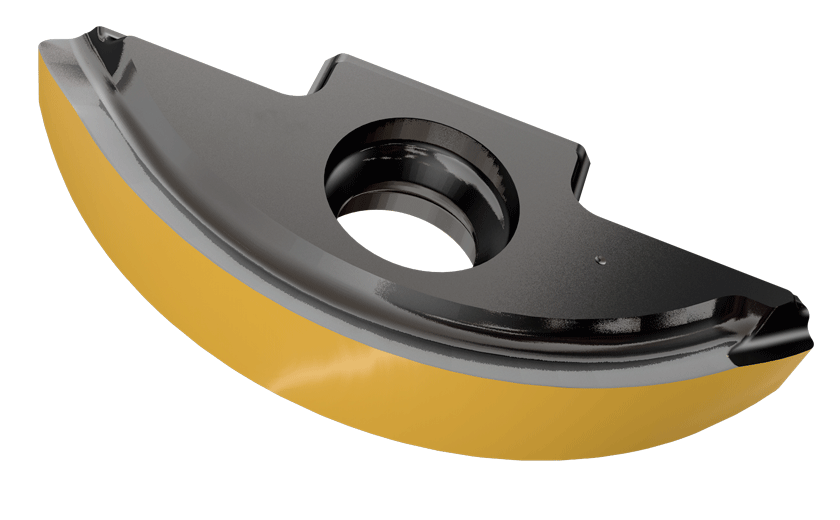

BLR D250-QT IC882-Round segment double-sided inserts for ball nose milling cutters

Dostępność: duża ilość

Cena brutto: 275,25 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

275.25

Cena netto: 223,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 187,48 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3309410

BLR D250-QT IC882

Podstawowe informacje
FamilyName	BLR
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3309410
ProductName	BLR D250-QT IC882
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Round segment double-sided inserts for ball nose milling cutters
FamilyShortDesc	Round Segment Double-Sided Inserts for Ball Nose Milling Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3309410
Remarks	MFW - Serrated cutting edge for roughing operations QCS - Chip splitting cutting edge for semi-finish applications QT - Round edge for finishinging applications
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \|
APP1Name	Drill Mill
APP2Name	Helical Interpolation
APP3Name	Plunging & Recessing
APP4Name	Profiling
APP5Name	Rampdown
ItemRemark
Coating	AlTiN+TiAlSiN+TiSiN
Cutting Edge Material	Carbide
Tool Type	Double sided Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0076
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3309410
Grade	IC882
Corner Radius (RE)	12.5 mm
Cutting Direction (HAND)	Neutral
Insert Length (INSL)	0 mm
Insert Thickness (S)	3.8 mm
Insert Width (W1)	8.9 mm
Maximum Feed per Tooth (fz(max))	0.15 mm/tooth
Minimum Feed per Tooth (fz(min))	0.08 mm/tooth
Number of Cutting Edges	2
