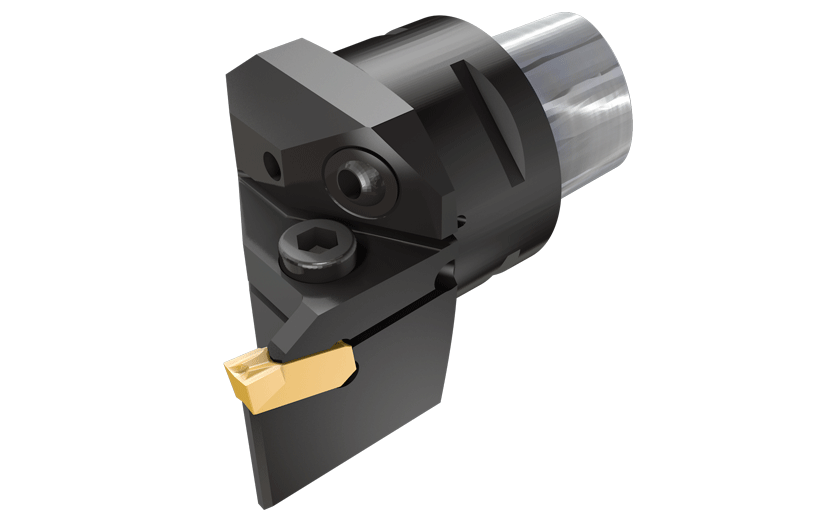

C6 GHDR-5-External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

Dostępność: duża ilość

Cena brutto: 1 474,47 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1474.47

Cena netto: 1 198,76 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 638,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2861105

C6 GHDR-5

Podstawowe informacje
FamilyName	C#-GHDR/L
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2861105
ProductName	C6 GHDR-5
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
FamilyShortDesc	External Grooving, Turning and Parting Toolholders with CAMFIX Exchangeable Tapered Shanks
Link	https://www.Iscar.com/ecat/e.asp?cat=2861105
Remarks	When using GPV and TIP inserts, toolholder must be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Parting \| Pulley V Grooving \| Threading (Ext.) Groove Turn T \|
APP1Name	Ext. Grooving
APP2Name	Ext. Grooving & Turning
APP3Name	Ext. Profiling
APP4Name	Parting
APP5Name	Pulley V Grooving
APP6Name	Threading (Ext.) Groove Turn T
ItemRemark
Tool Type	Parting & Grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	1.2950
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	2861105
Connection Diameter Machine Side (DCONMS)	63 mm
Cutting Depth Maximum (CDX)	12 mm
Cutting Width Maximum (CWX)	6.4 mm
Cutting Width Minimum (CWN)	5 mm
Functional Width (WF)	32 mm
Overall Length (OAL)	93 mm
