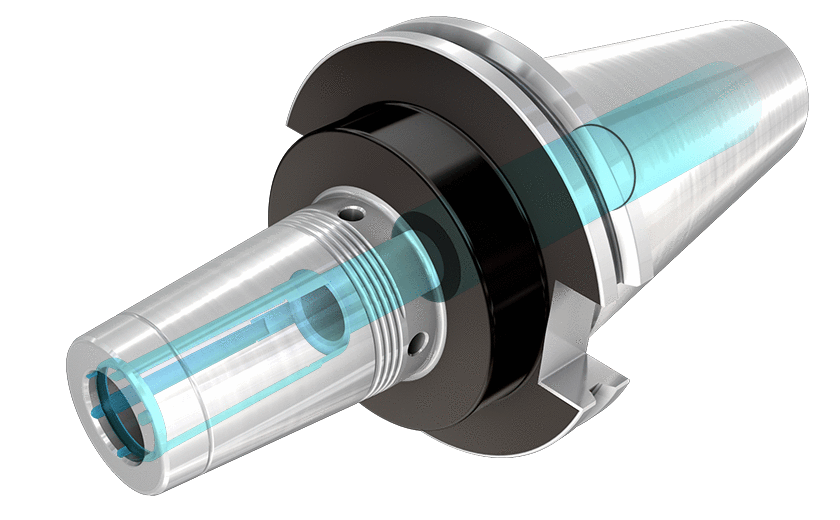

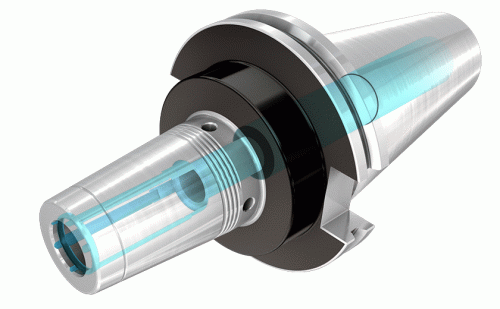

» CAT40 SRKIN 1-1/4X4.00 CX-Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

CAT40 SRKIN 1-1/4X4.00 CX-Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

Dostępność: duża ilość

Cena brutto: 1 041,03 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1041.03

Cena netto: 846,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 156,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 4517251

CAT40 SRKIN 1-1/4X4.00 CX

Podstawowe informacje
FamilyName	CAT-SRKIN-CX
ToolType	Holder
Unit	I
PackSize	1
product_code	ISC4517251
ProductName	CAT40 SRKIN 1-1/4X4.00 CX
COO	Israel
UOM	EA
UNSPSC	23231001
FamilyDesc	Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance
FamilyShortDesc	Thermal Shrink Chucks with Caterpillar Form AD Tapered Shank and Jet Coolant Grooves along the Shank Bore
Link	https://www.Iscar.com/ecat/e.asp?cat=4517251
Remarks	Preset screw CX allows supply of coolant via JET groove - do not remove
FamilyBrand	Iscar
BrandName	Iscar
APP1Name	CAT ANSI/ASME B5.5 1994
APP2Name	SHRINKIN
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	3.5340
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	4517251
Body Diameter (BD)	2.087"
Body Diameter_2 (BD_2)	1.752"
Body Length (LB)	2.251"
Body Length_2 (LB_2)	2.62"
Body Length Maximum (LBX)	3-1/4"
Body Taper End Diameter (BTED)	1.732"
Clamping Length Workpiece Side (LSCWS)	2.16"
Connection Diameter Workpiece Side (DCONWS)	1-1/4"
Protruding Length (LPR)	4"
Shank Size (SS)	40
