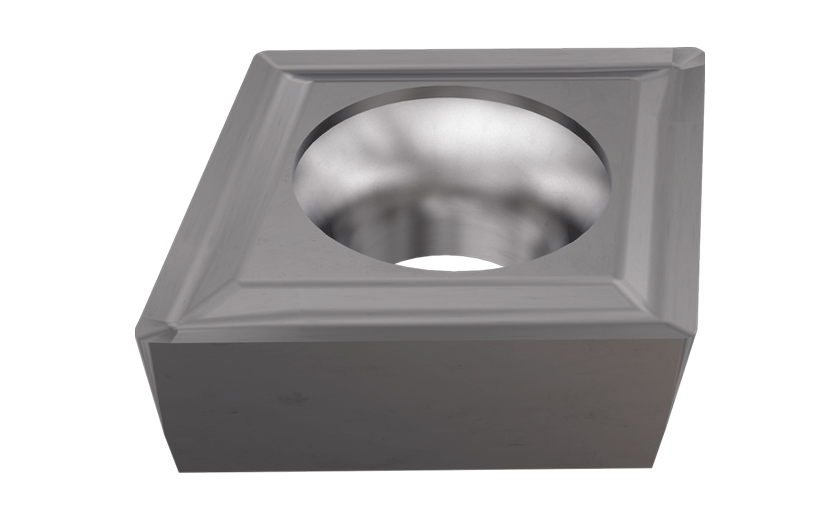

CCGT 060202L IC20-80° rhombic 7° positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
Dostępność:
duża ilość
Cena brutto:
71,54 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
58,16 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
63,64 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5504411
Opis
CCGT 060202L IC20
| Podstawowe informacje | |
|---|---|
| FamilyName | CCMT/CCGT |
| ToolType | Insert |
| Unit | M |
| PackSize | 10 |
| product_code | ISC5504411 |
| ProductName | CCGT 060202L IC20 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242105 |
| FamilyDesc | 80° rhombic 7° positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys. |
| FamilyShortDesc | 80° Rhombic Inserts with a 7° Positive Flank for Semi-Finish and Finish Turning |
| Link | https://www.Iscar.com/ecat/e.asp?cat=5504411 |
| Remarks | For dimensions and tolerances, Click on More Info Left-hand inserts for left-hand external tools and for right-hand internal tools. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | |
| APP1Name | Ext. 80° Diamond 91° Approach |
| APP2Name | Ext. 80° Diamond 95° Approach |
| APP3Name | Int. 80° Diamond 90° Approach |
| APP4Name | Int. 80° Diamond 95° Approach |
| APP5Name | Int. Back Turning 80° Diamond |
| APP6Name | Int. Chamfering 80° Diamond |
| ItemRemark | Left-hand insert |
| Coating | Uncoated |
| Cutting Edge Material | Carbide |
| Tool Type | Turn Positive Inserts |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0022 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 5504411 |
| Grade | IC20 |
| Chip Breaker Type | T |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Edge Length (L) | 6.45 mm |
| Depth of Cut Maximum (APMX) | 2 mm |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Insert Thickness (S) | 2.38 mm |
| Insert Size | 2-0L |
| Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Min D.O.C. | 0.5 mm |
| Min. Turning Feed (ft(min)) | 0.1 mm/rev |
