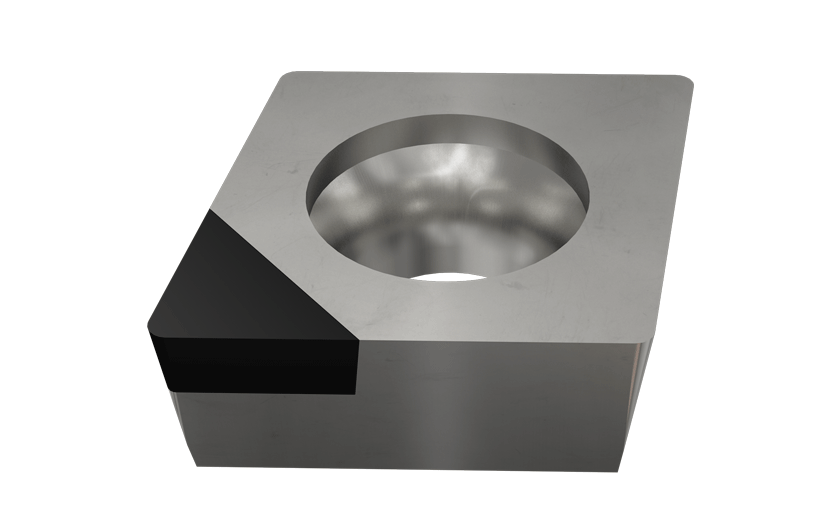

CCGW 060208S BI25H-Positive 80° rhombic inserts with CBN Tips with a Flat rake angle for hardened steel and cast iron

Dostępność: duża ilość

Cena brutto: 266,26 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

266.26

Cena netto: 216,47 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 295,84 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3433559

CCGW 060208S BI25H

Podstawowe informacje
FamilyName	CCGW (CBN)
ToolType	Insert
Unit	M
PackSize	2
product_code	ISC3433559
ProductName	CCGW 060208S BI25H
COO	Germany
UOM	EA
UNSPSC	23242105
FamilyDesc	Positive 80° rhombic inserts with CBN Tips with a Flat rake angle for hardened steel and cast iron
FamilyShortDesc	Positive 80° Rhombic Inserts with CBN Tips with a Flat Rake Angle for Hardened Steel and Cast Iron
Link	https://www.Iscar.com/ecat/e.asp?cat=3433559
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Diamond 91° Approach \| Ext. 80° Diamond 95° Approach \| Int. 80° Diamond 90° Approach \| Int. 80° Diamond 95° Approach \| Int. Back Turning 80° Diamond \|
APP1Name	Ext. 80° Diamond 91° Approach
APP2Name	Ext. 80° Diamond 95° Approach
APP3Name	Int. 80° Diamond 90° Approach
APP4Name	Int. 80° Diamond 95° Approach
APP5Name	Int. Back Turning 80° Diamond
ItemRemark
Coating
Cutting Edge Material	PCBN
Tool Type	Turn Ultra hard Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Hard Materials \|
Thread Standard
Package Weight
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3433559
Grade	BI25H
Corner Radius (RE)	0.8 mm
Cutting Edge Length (L)	6.4 mm
Depth of Cut Maximum (APMX)	0.5 mm
Fixing Hole Diameter (D1)	2.8 mm
Inscribed Circle Diameter (IC)	6.35 mm
Insert Thickness (S)	2.38 mm
Insert Size	21.52S
Max. Turning Feed (ft(max))	0.3 mm/rev
Min D.O.C.	0.05 mm
Min. Turning Feed (ft(min))	0.05 mm/rev
