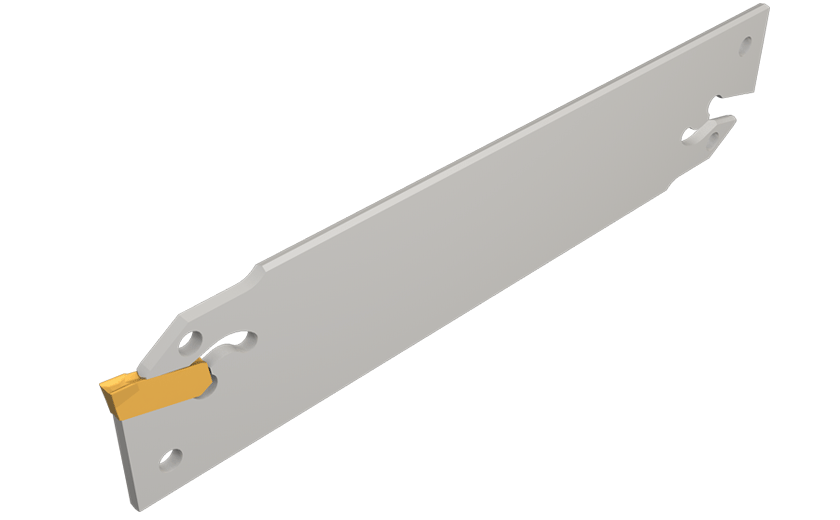

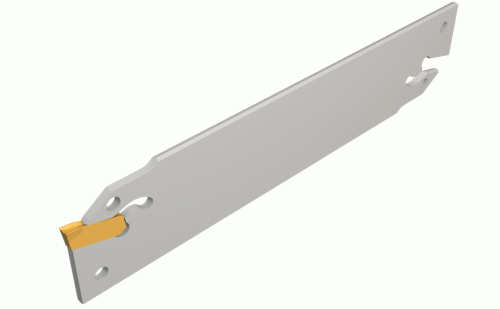

CGHN 32-6DG-CUT-GRIP double-ended blades for external grooving and turning self-clamped inserts.

Dostępność: duża ilość

Cena brutto: 506,97 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

506.97

Cena netto: 412,17 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 563,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2800793

CGHN 32-6DG

Podstawowe informacje
FamilyName	CGHN-DG
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2800793
ProductName	CGHN 32-6DG
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	CUT-GRIP double-ended blades for external grooving and turning self-clamped inserts.
FamilyShortDesc	Double-Ended Blades for External Grooving and Turning Self-Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2800793
Remarks	DO-GRIP clamping insert is self-retained for long overhang When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Parting \| Threading (Ext.) Groove Turn T \|
APP1Name	Ext. Grooving
APP2Name	Ext. Grooving & Turning
APP3Name	Ext. Profiling
APP4Name	Parting
APP5Name	Threading (Ext.) Groove Turn T
ItemRemark
Tool Type	Blades and adapters for Parting & Grooving
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1780
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2800793
Body Width (WB)	5.2 mm
Body Width_2 (WB_2)	5.2 mm
Cutting Direction (HAND)	Neutral
Cutting Width Maximum (CWX)	6.4 mm
Cutting Width Minimum (CWN)	5.5 mm
Number of Pocket (NOP)	2
Overall Length (OAL)	150 mm
Shank Height (H)	32 mm
Tool Assembly Length (LTA)	37.03 mm
