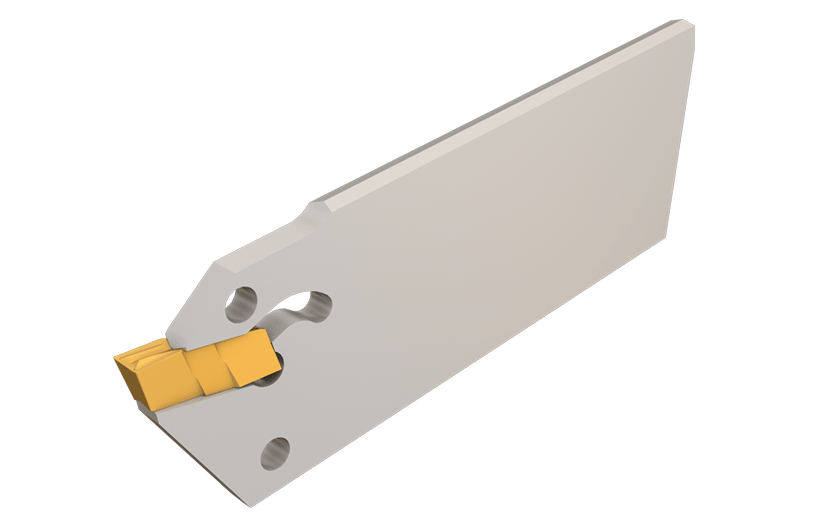

CGHN 32-6DGM-Internal single-ended grooving and turning blades using self-clamped inserts.

Dostępność: duża ilość

Cena brutto: 288,70 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

288.70

Cena netto: 234,72 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 320,78 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2800815

CGHN 32-6DGM

Podstawowe informacje
FamilyName	CGHN 32-DGM
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2800815
ProductName	CGHN 32-6DGM
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Internal single-ended grooving and turning blades using self-clamped inserts.
FamilyShortDesc	Internal Grooving and Turning Blades for GHIC...-85 Bars (self-clamping)
Link	https://www.Iscar.com/ecat/e.asp?cat=2800815
Remarks	Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and it depends on the bore diameter (D) For grooving capacity, click More Info CGHN 32...DGM can be modified from external double-sided CGHN-DG blades When TIP inserts are used, the seat needs to be modified to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. Groove & Turn \| Int. Grooving \| Int. Profiling \| Threading (Int.) \|
APP1Name	Int. Groove & Turn
APP2Name	Int. Grooving
APP3Name	Int. Profiling
APP4Name	Threading (Int.)
ItemRemark
Tool Type	Blades and adapters for Parting & Grooving
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1050
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2800815
Body Width (WB)	5.2 mm
Cutting Direction (HAND)	Neutral
Cutting Width Maximum (CWX)	6.4 mm
Cutting Width Minimum (CWN)	5.6 mm
Minimum Bore Diameter (DMIN)	93 mm
Overall Length (OAL)	90 mm
Shank Height (H)	32 mm
Tool Assembly Length (LTA)	37.03 mm
