CoroCut® 1-2, wytaczak do profilowania RAX123L094-24B-020 ID:5739841 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 195,55 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 785,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 583,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5739841
Opis

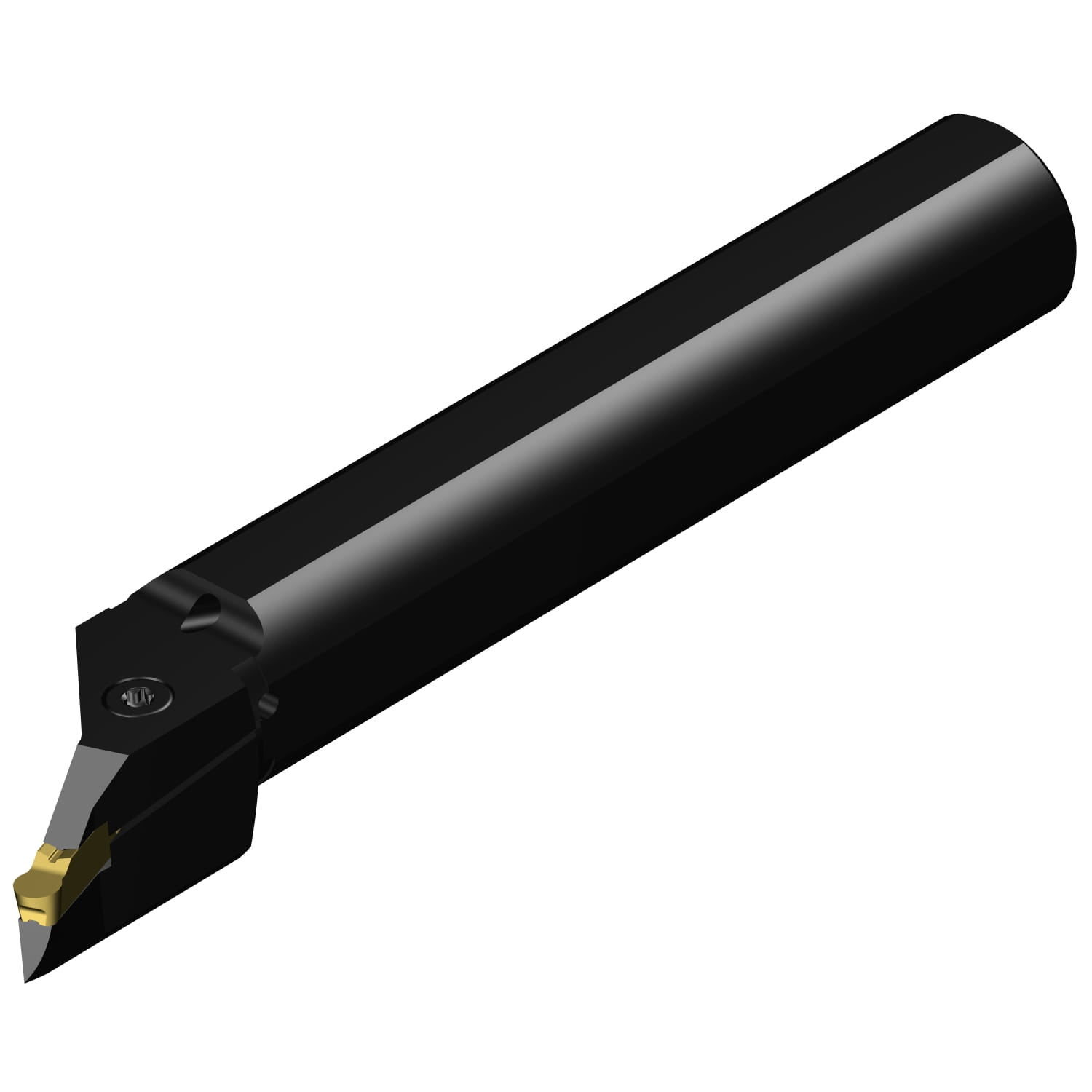

CoroCut® 1-2, wytaczak do profilowania
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroCut® 1-2, wytaczak do profilowania |
| Rodzina produktów | 1073 |
| Product Subfamily Code (Tsyc) | R/LAX123..B-020 (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | US |
| Wymiary | |
| Dconms Connection Diameter | 1.5 inch |
| Dconms Connection Diameter | 38.1 mm |
| Dmin1 Minimum Bore Diameter | 2.5 inch |
| Dmin1 Minimum Bore Diameter | 63.5 mm |
| H Shank Height | 1.37402 inch |
| H Shank Height | 34.9 mm |
| Lf Functional Length | 10 inch |
| Lf Functional Length | 254 mm |
| Waga | 3.89116 lb |
| Waga | 1.765 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 1 1/2 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 20 deg |
| Bmc Body Material Code | Steel |
| Cdx Cutting Depth Maximum | 0.940945 inch |
| Cdx Cutting Depth Maximum | 23.9 mm |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroCut 2 -size L (N123L2-AM) |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 6 inch |
| Ohx Maximum Overhang | 152.4 mm |
| Rmpx Maximum Ramping Angle | 20 deg |
| Inne parametry | |
| Ean Number | 11433041 |
