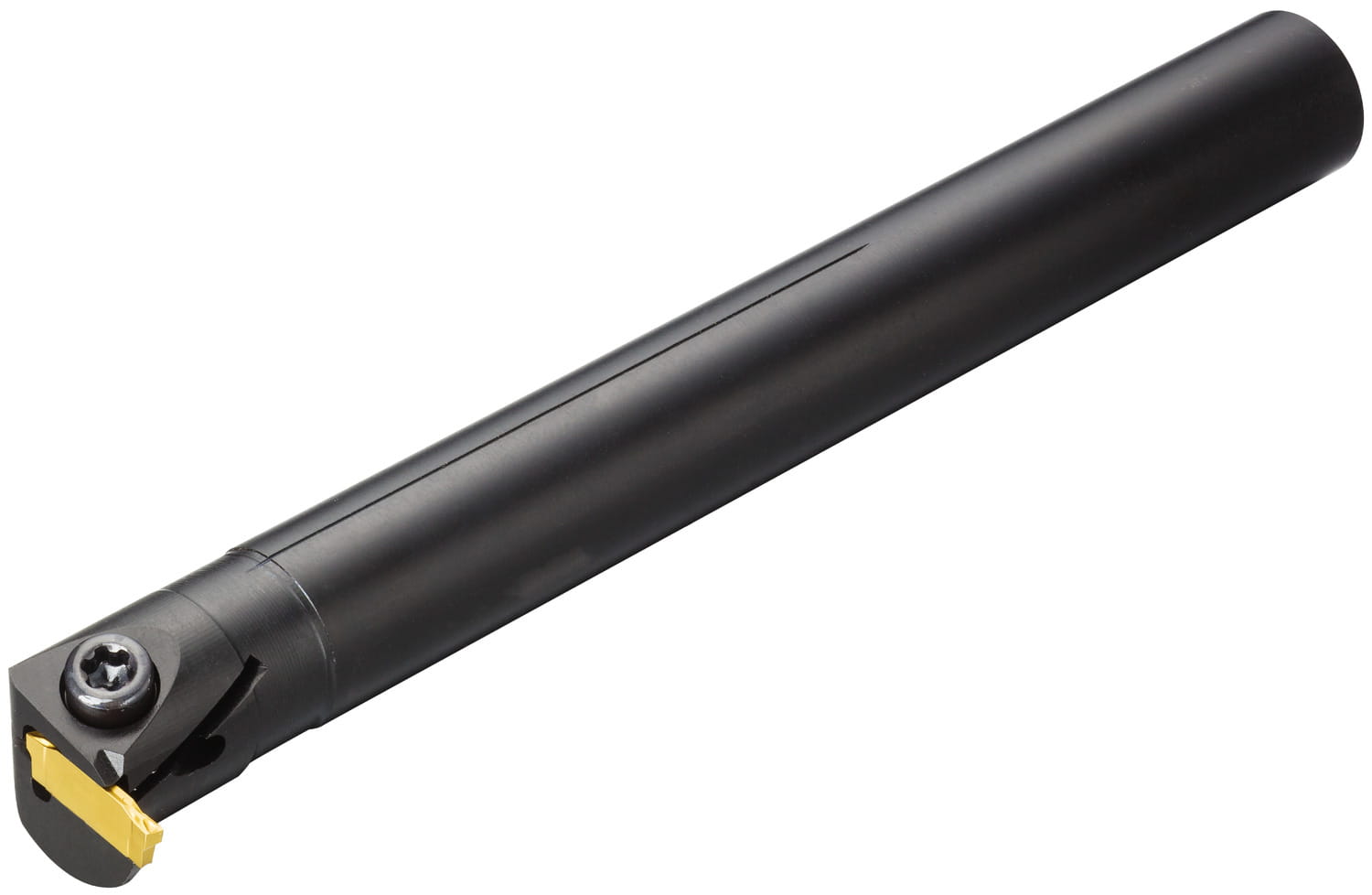

CoroCut® 1-2, wytaczak do rowków LAG123D016-10B ID:5734814 Sandvik
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
CoroCut® 1-2, wytaczak do rowków

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroCut® 1-2, wytaczak do rowków |
| Rodzina produktów | 1073 |
| Product Subfamily Code (Tsyc) | R/LAG123..B-R (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | US |

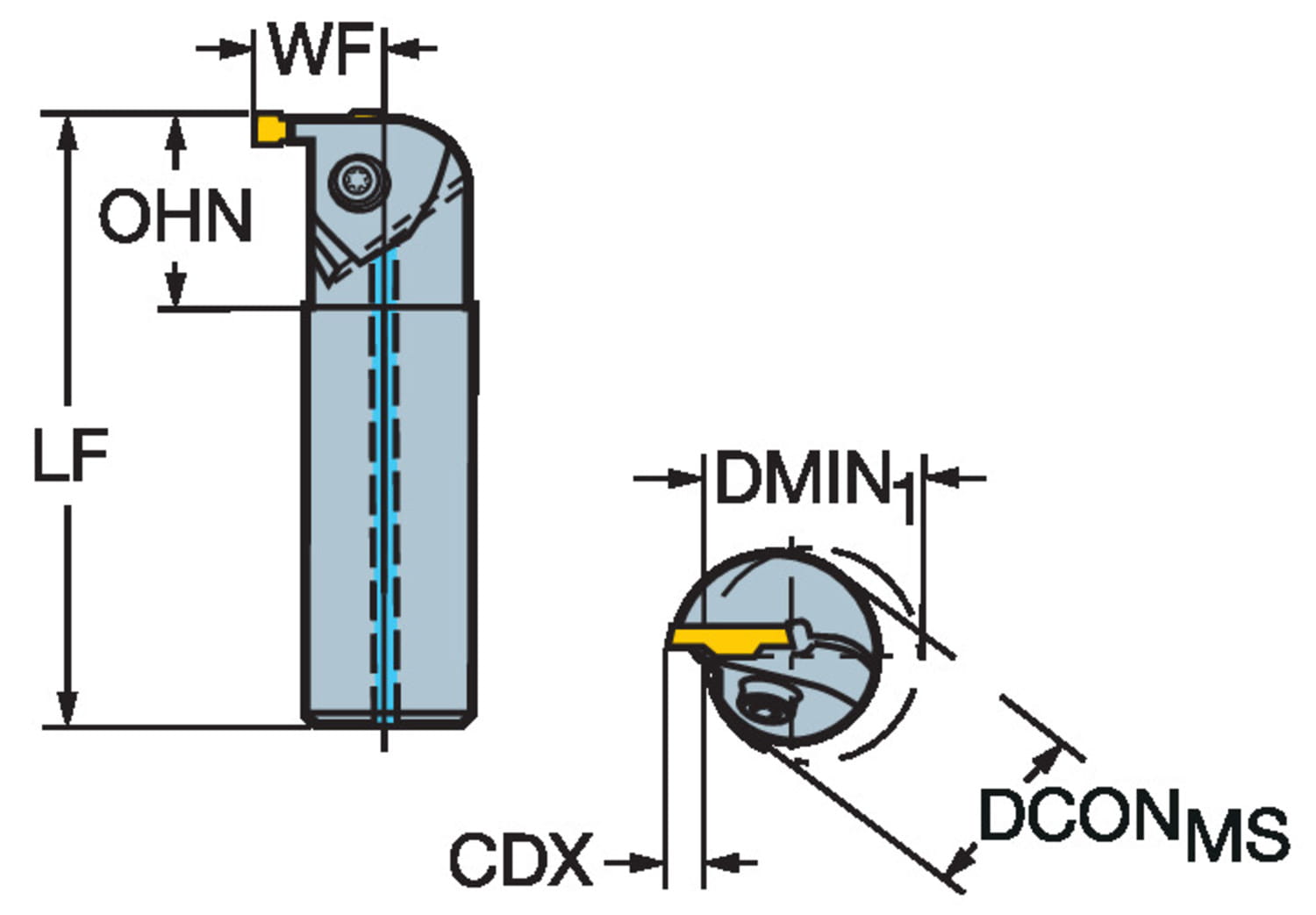

| Wymiary | |
| Dconms Connection Diameter | 0.625 inch |
| Dconms Connection Diameter | 15.875 mm |
| Dmin1 Minimum Bore Diameter | 0.984252 inch |
| Dmin1 Minimum Bore Diameter | 25 mm |
| Lf Functional Length | 5.90551 inch |
| Lf Functional Length | 150 mm |
| Waga | 0.480608 lb |
| Waga | 218 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank without clamping features -inch: 5/8 |
| Baws Workpiece Side Body Angle | 90 deg |
| Cdx Cutting Depth Maximum | 0.177165 inch |
| Cdx Cutting Depth Maximum | 4.5 mm |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroCut 2 -size D (N123D2-CM) |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Hand Hand | L |
| Locap Location Aid Property | yes |
| Ohx Maximum Overhang | 2.5 inch |
| Ohx Maximum Overhang | 63.5 mm |
| Ssc Insert Seat Size Code | D |
| Inne parametry | |
| Ean Number | 11497463 |
| Product Replacement Description - Pl-Pl | W pełni zamienny z oryginalnym produktem. |
| Replacement Product - Material Id | 8446752 |
| Replacement Product - Ordering Code | C2R-CEA10-LD04GB |
| Replacement Product Url | https://www.sandvik.coromant.com/en-us/product-details?c=C2R-CEA10-LD04GB |
Informacje o zamienniku:
W pełni zamienny z oryginalnym produktem.
Kod zamiennika: C2R-CEA10-LD04GB
ID materiału zamiennika: 8446752
