CoroTurn® 107, część tokarska C3-SVQBR-13070-11-B1 ID:5727159 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 613,75 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 125,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 404,65 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5727159
Opis

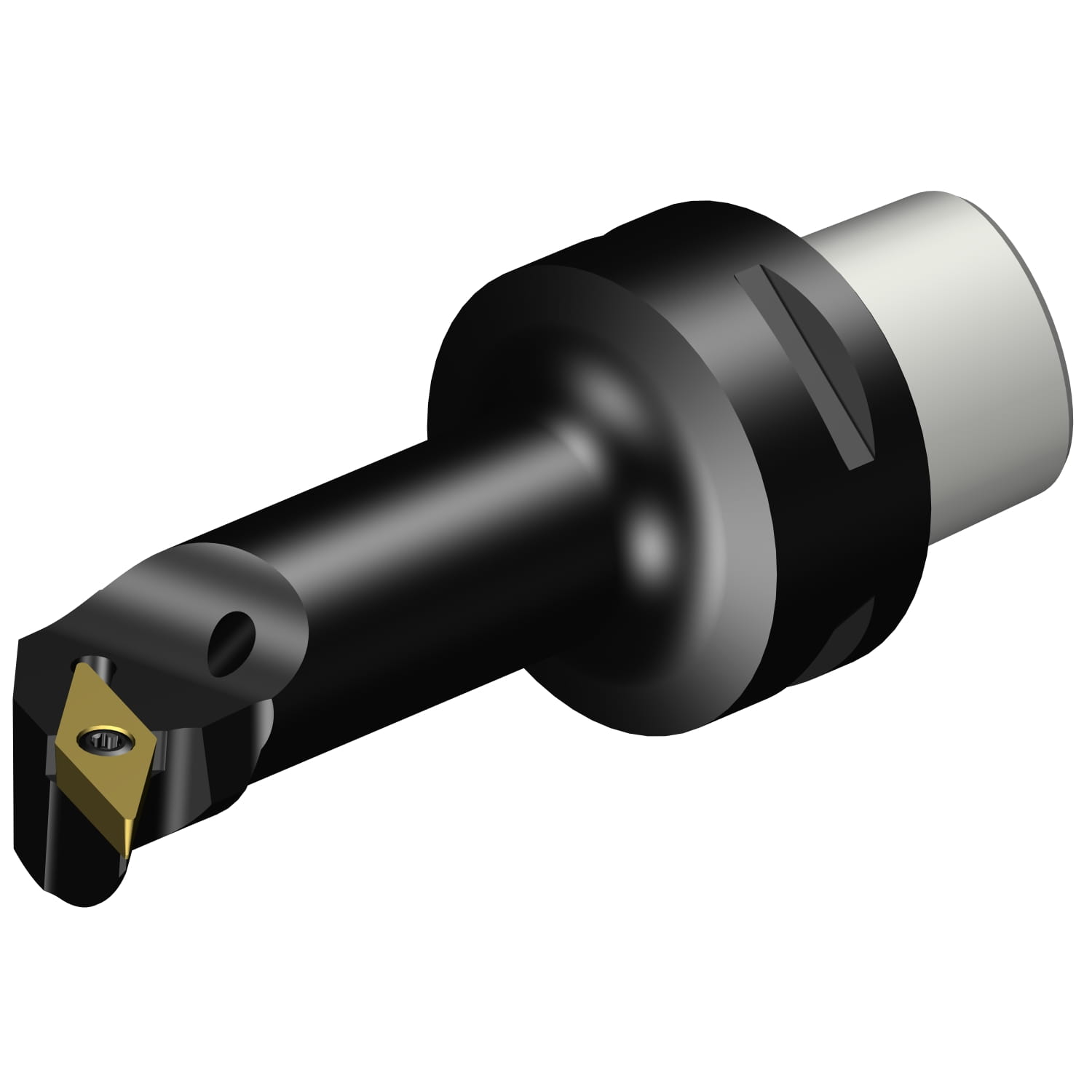

CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SVQBR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

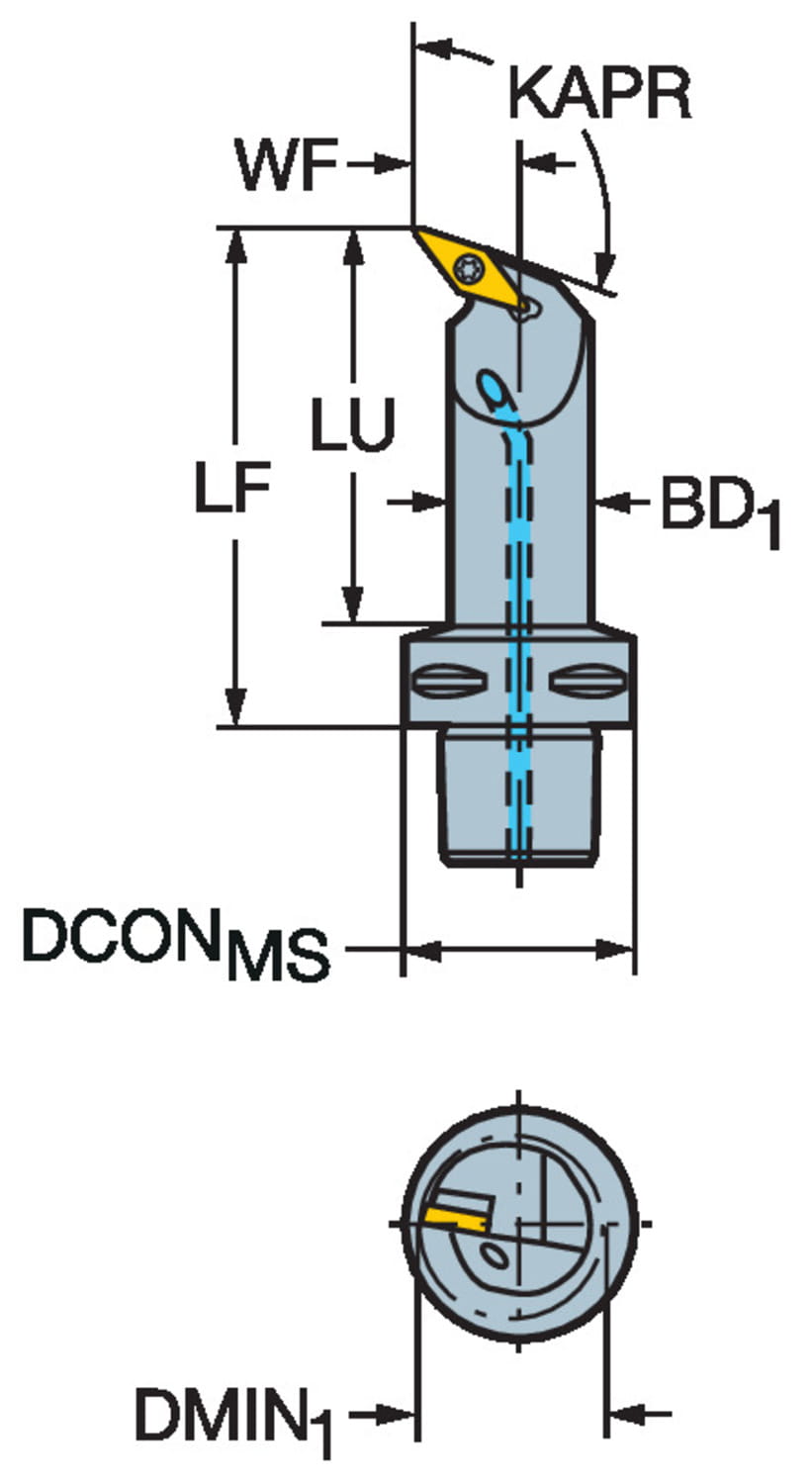

| Wymiary | |
| Dconms Connection Diameter | 1.25984 inch |
| Dconms Connection Diameter | 32 mm |
| Dmin1 Minimum Bore Diameter | 0.866142 inch |
| Dmin1 Minimum Bore Diameter | 22 mm |
| Lf Functional Length | 2.75591 inch |
| Lf Functional Length | 70 mm |
| Lu Usable Length | 2.08661 inch |
| Lu Usable Length | 53 mm |
| Waga | 0.460767 lb |
| Waga | 209 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C3 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VBMT 110304/ VCMT 110304 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 107.5 deg |
| Ohx Maximum Overhang | 2.75591 inch |
| Ohx Maximum Overhang | 70 mm |
| Psir Tool Lead Angle | -17.5 deg |

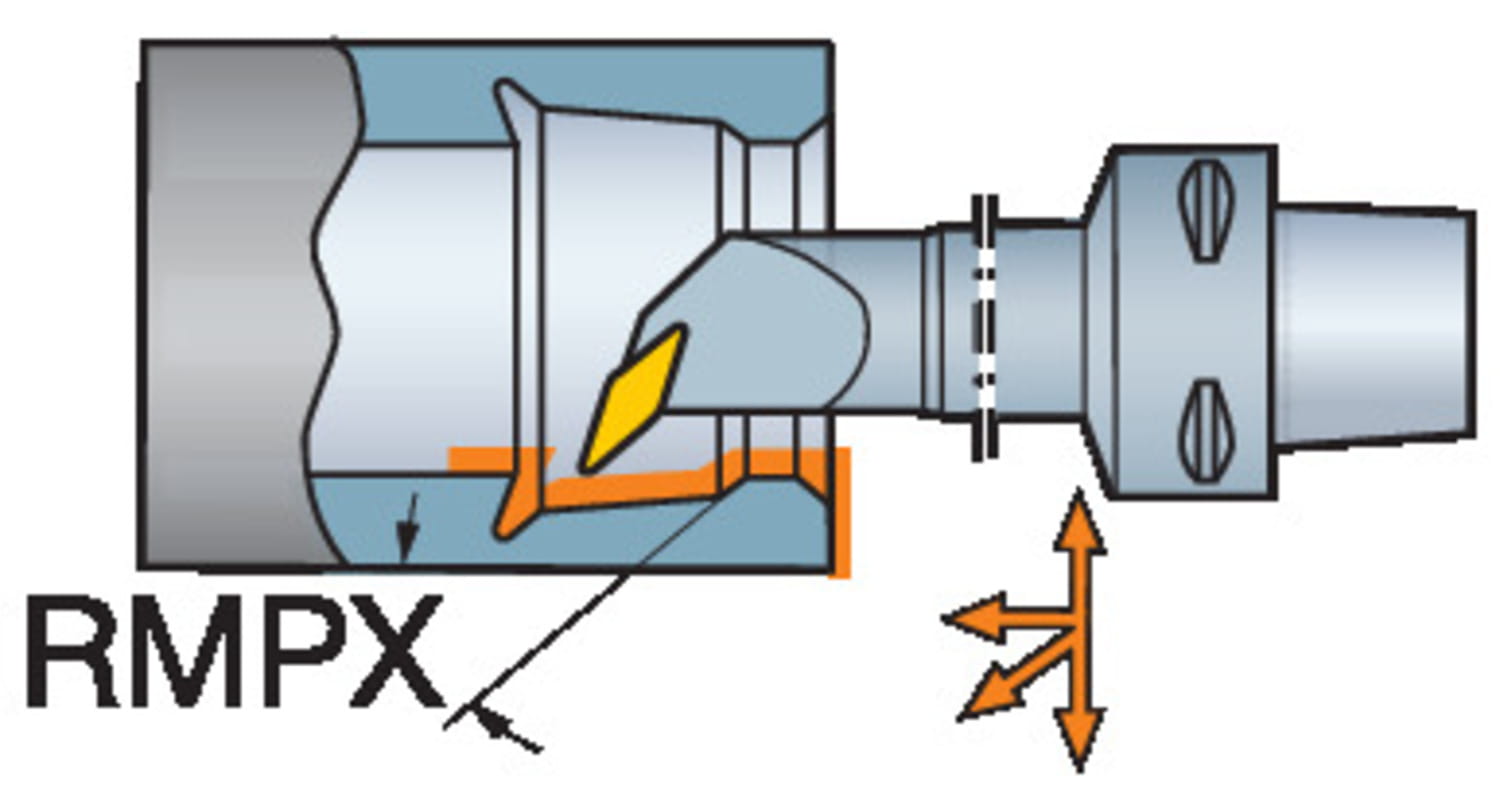

| Rmpx Maximum Ramping Angle | 35 deg |
| Inne parametry | |
| Ean Number | 12162684 |
