CoroTurn® 107, część tokarska C5-SRDCN00060-10AHPA ID:6537684 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 576,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 095,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 367,75 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6537684
Opis

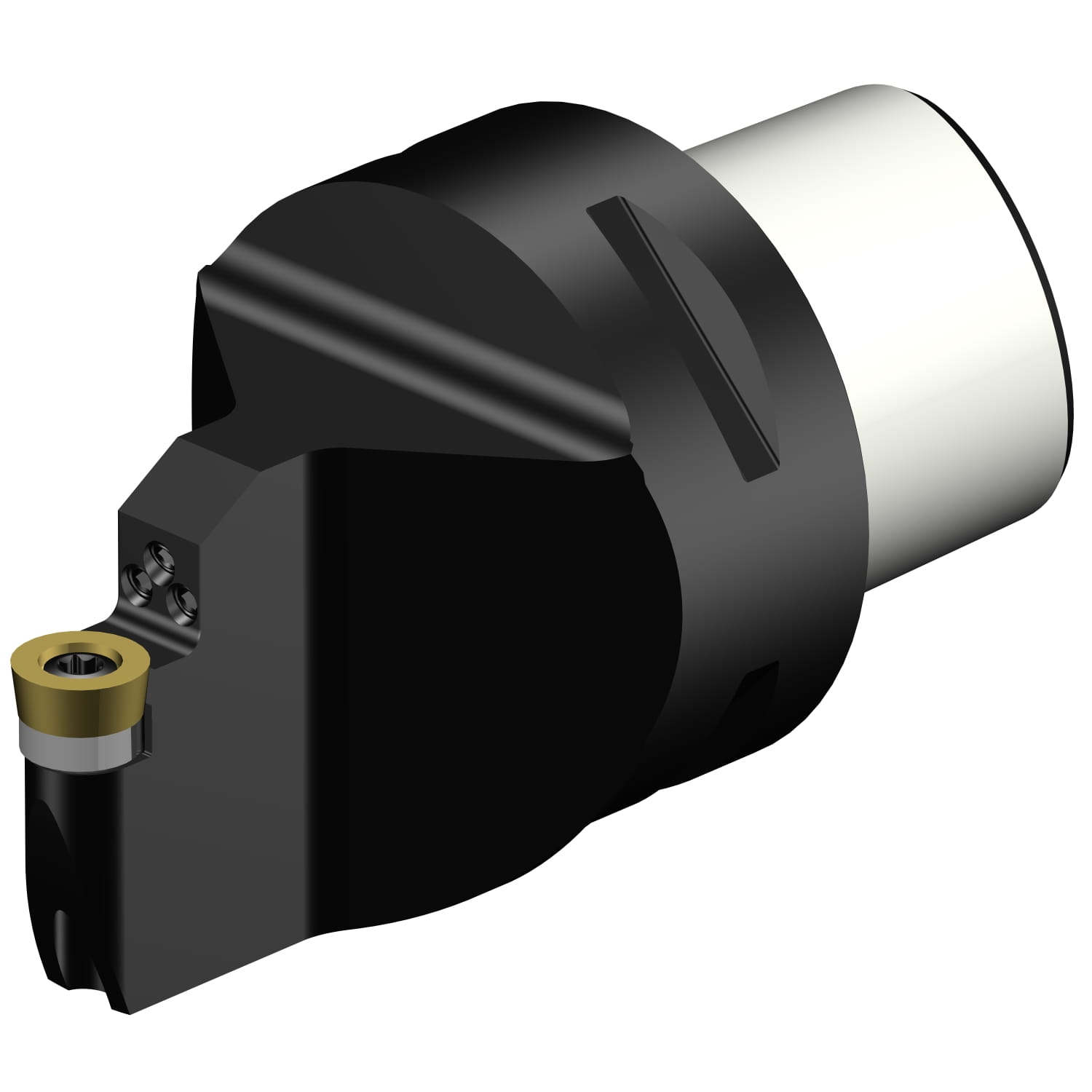

CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SRDCN..HPA |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

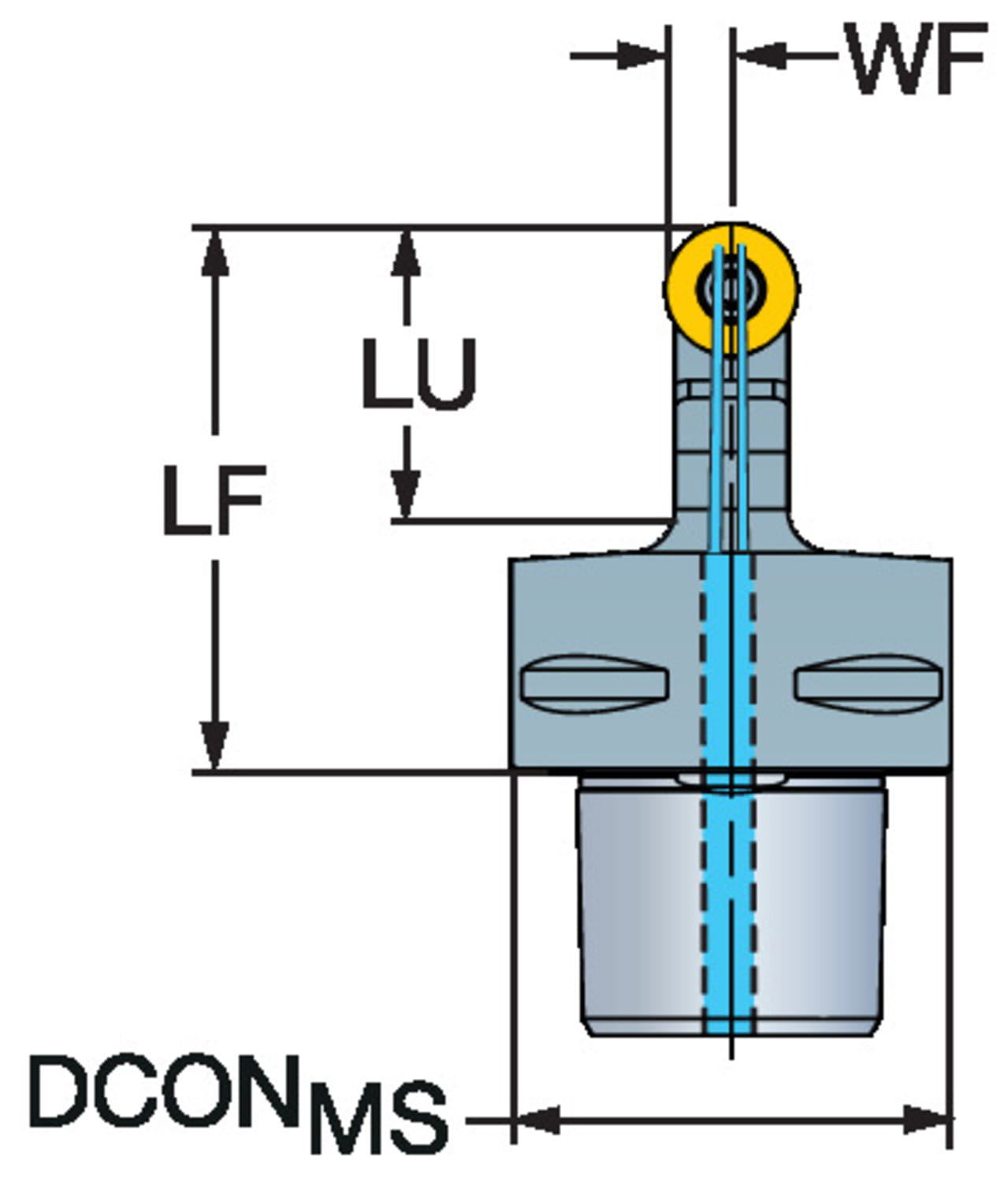

| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |

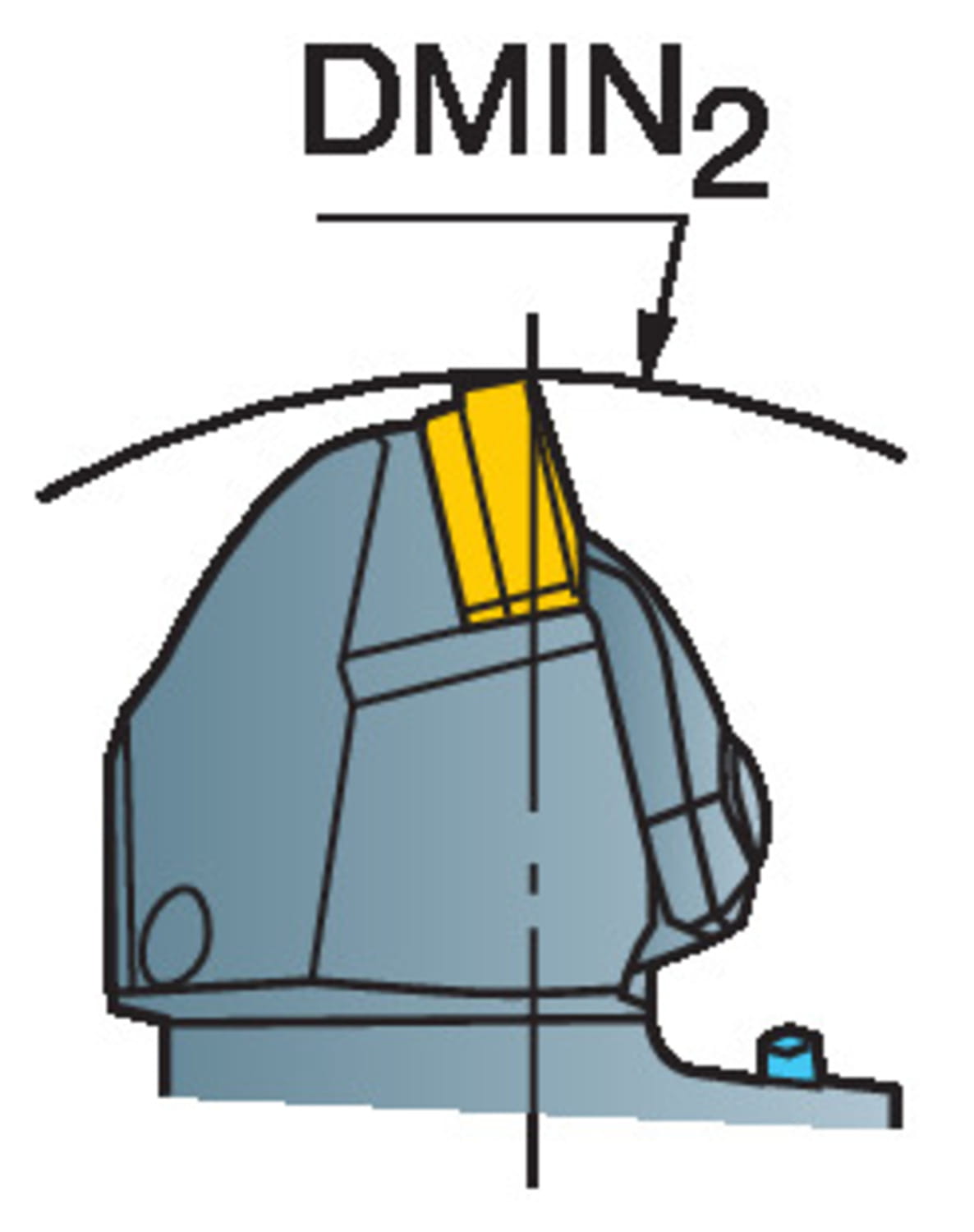

| Dmin2 Minimum Bore Diameter | 6.49606 inch |
| Dmin2 Minimum Bore Diameter | 165 mm |
| Lf Functional Length | 2.3622 inch |
| Lf Functional Length | 60 mm |
| Lu Usable Length | 0.984252 inch |
| Lu Usable Length | 25 mm |
| Waga | 1.26325 lb |
| Waga | 573 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cdx Cutting Depth Maximum | 0.984252 inch |
| Cdx Cutting Depth Maximum | 25 mm |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | metric RCMT 10T3M0 |
| Cxsc Coolant Exit Style Code | 6: decentral exit with nozzles, adjustable |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 2.3622 inch |
| Ohx Maximum Overhang | 60 mm |

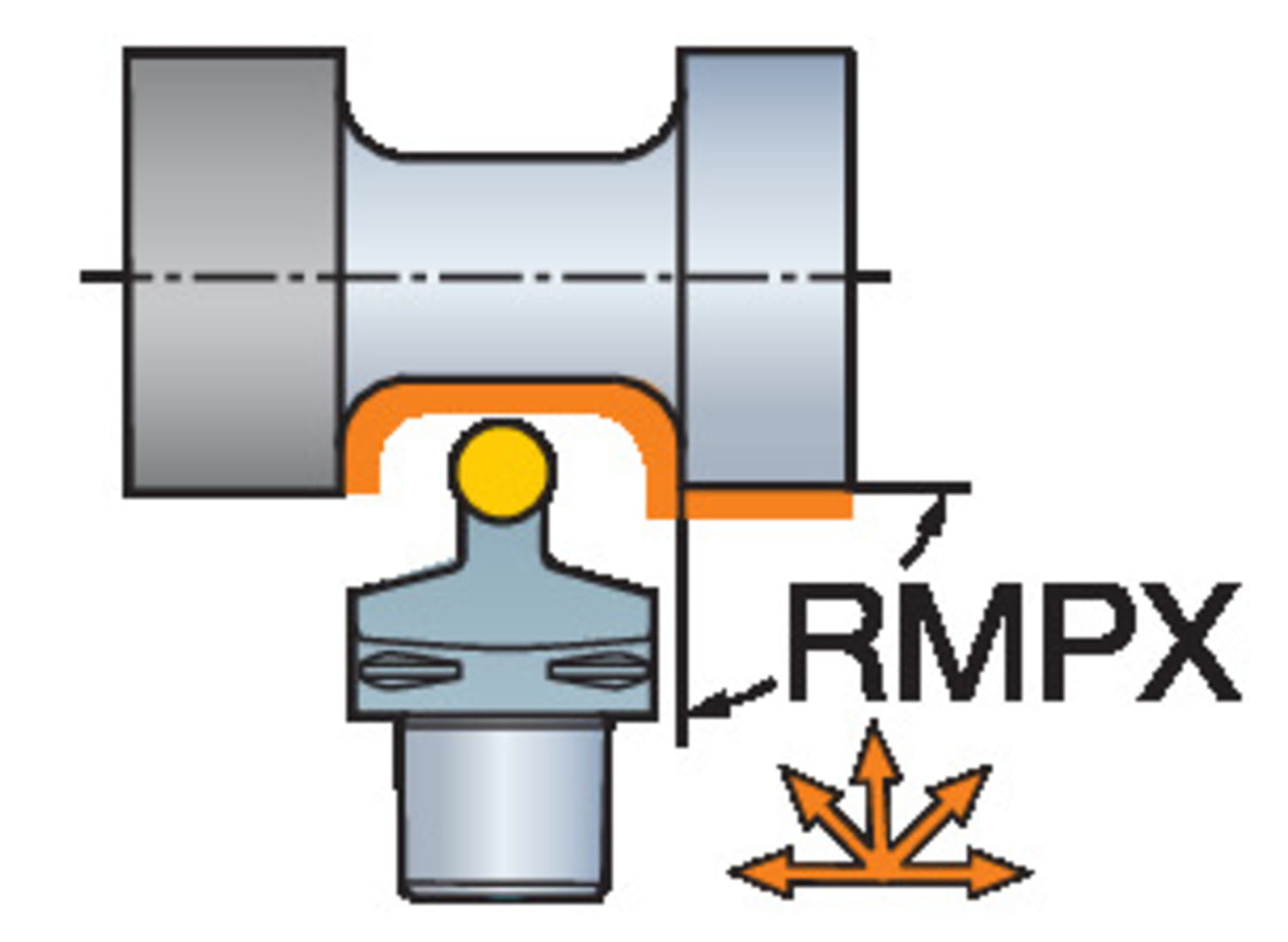

| Rmpx Maximum Ramping Angle | 90 deg |
| Inne parametry | |
| Ean Number | 26537684 |
