CoroTurn® 107, część tokarska C5-SRSCL-35060-12HP ID:5907952 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 576,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 095,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 373,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5907952
Opis

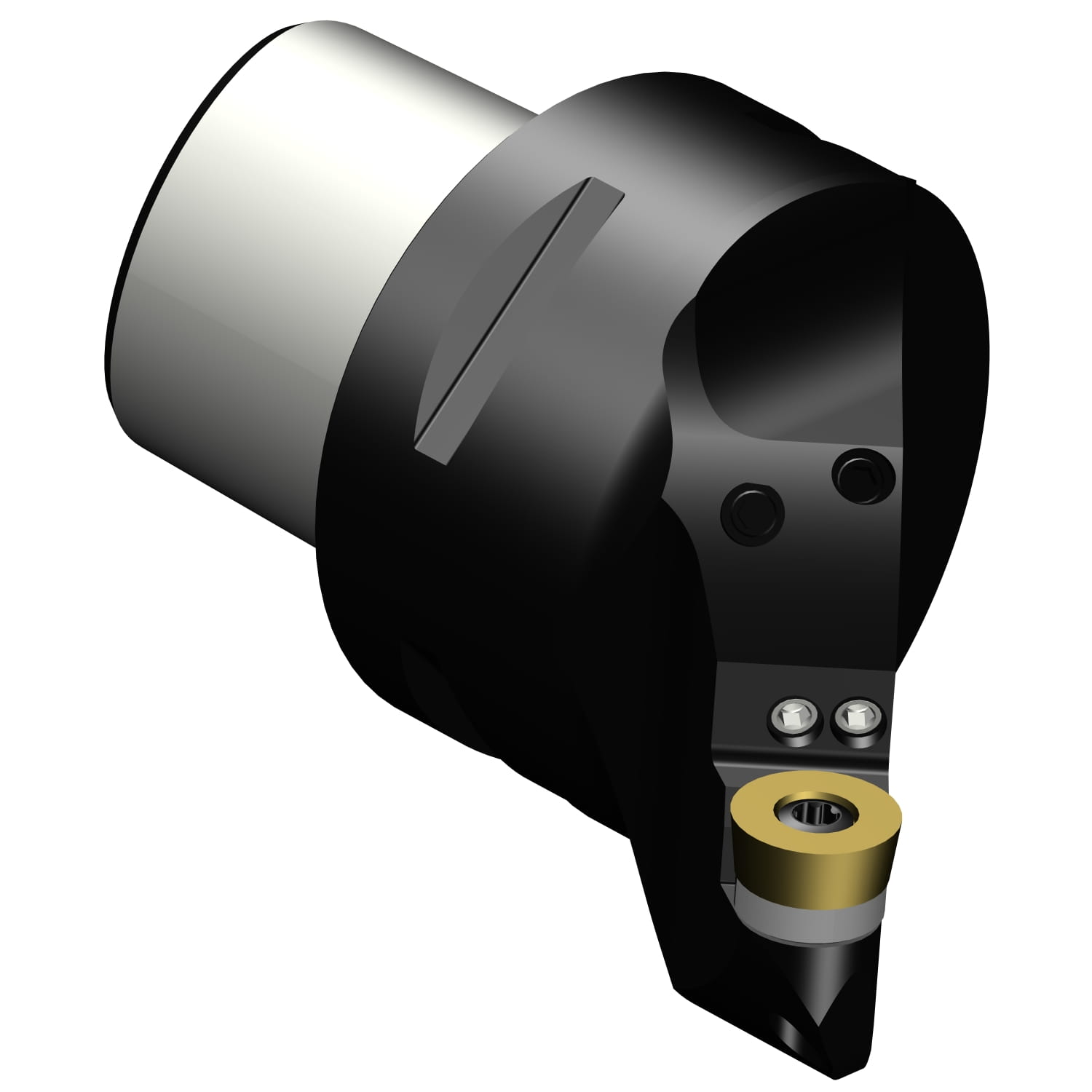

CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SRSCR/L..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

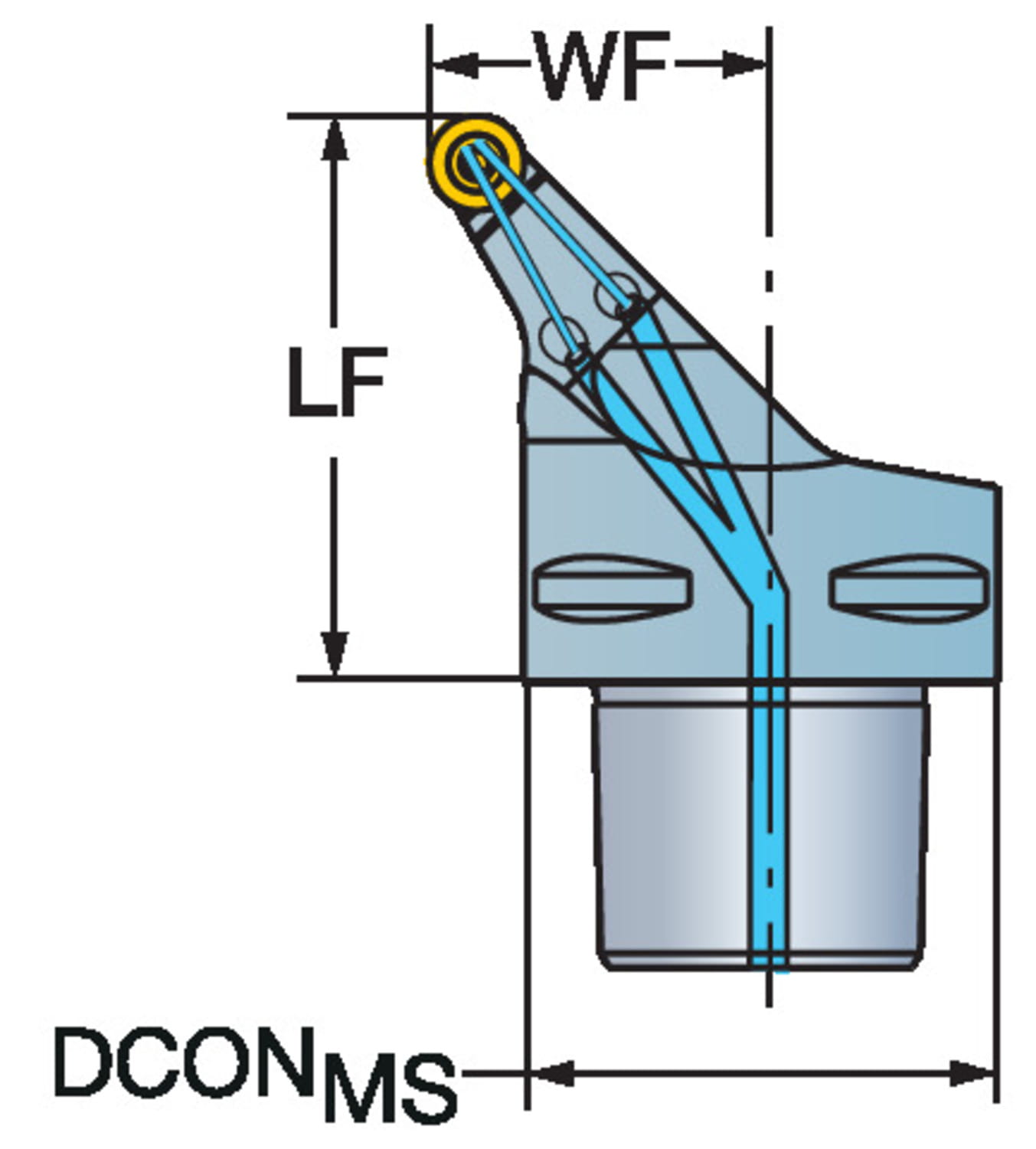

| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |

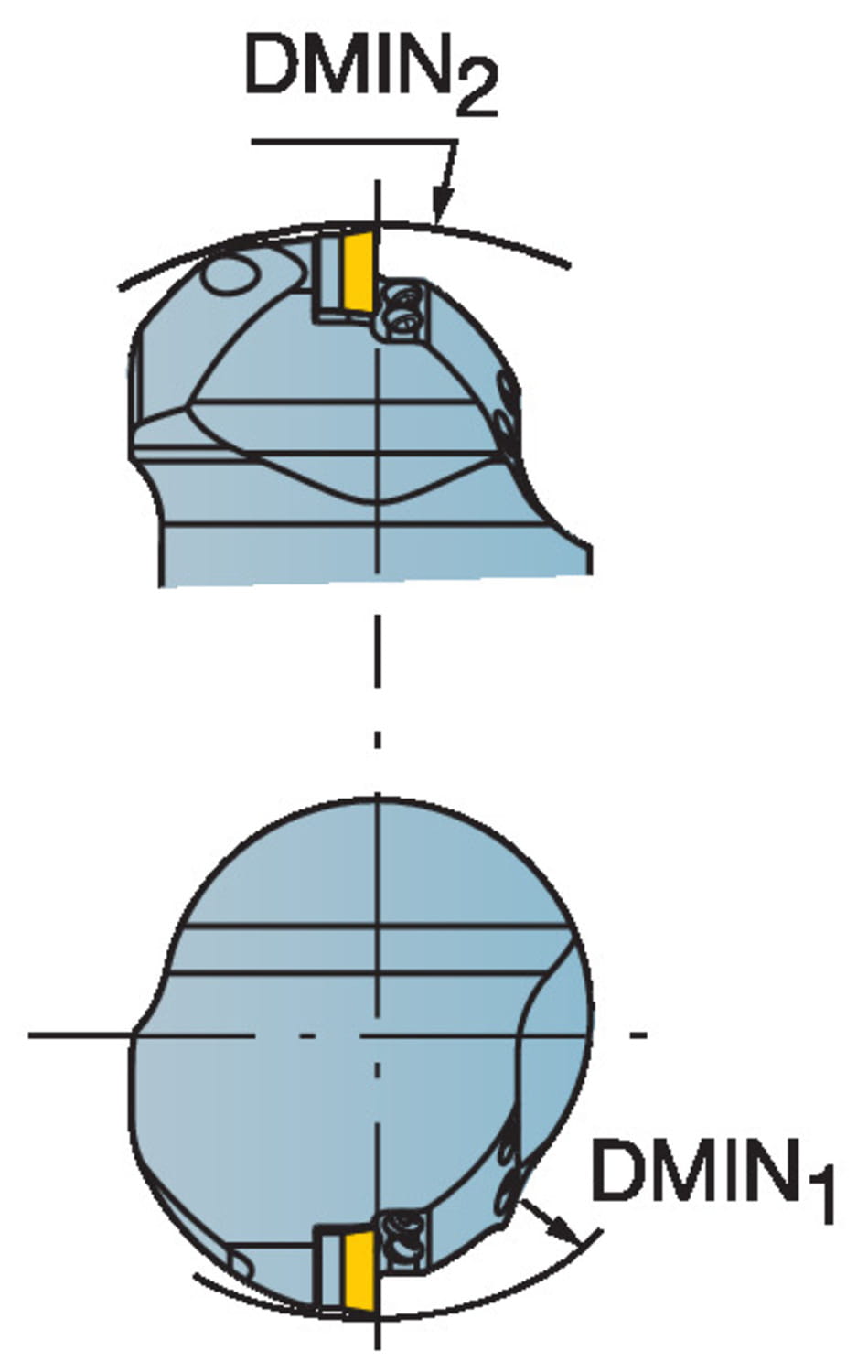

| Dmin1 Minimum Bore Diameter | 5.11811 inch |
| Dmin1 Minimum Bore Diameter | 130 mm |
| Dmin2 Minimum Bore Diameter | 10.6299 inch |
| Dmin2 Minimum Bore Diameter | 270 mm |
| Lf Functional Length | 2.3622 inch |
| Lf Functional Length | 60 mm |
| Waga | 1.5278 lb |
| Waga | 693 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | metric RCMT 1204M0 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | L |
| Ohx Maximum Overhang | 2.3622 inch |
| Ohx Maximum Overhang | 60 mm |

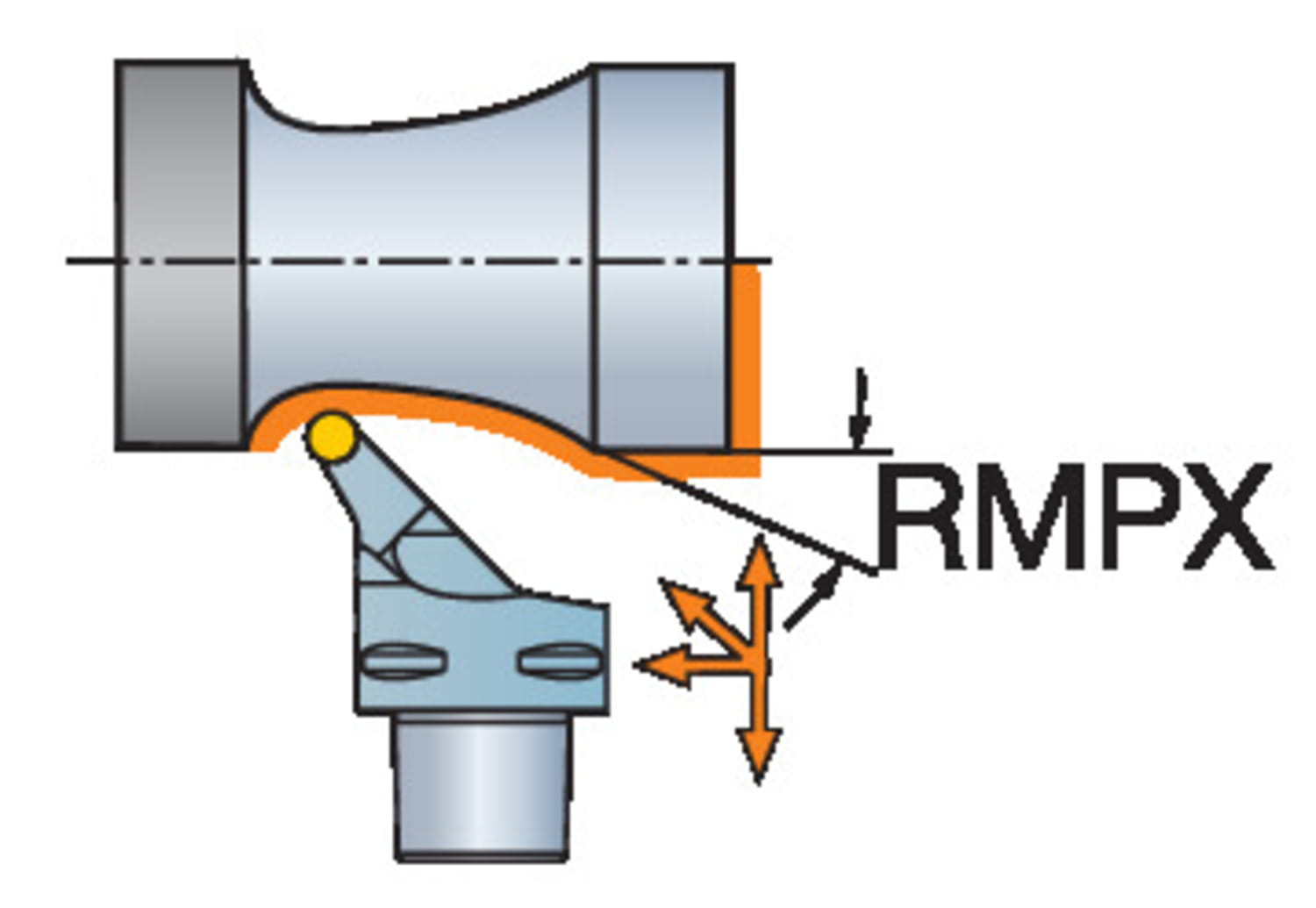

| Rmpx Maximum Ramping Angle | 45 deg |
| Inne parametry | |
| Ean Number | 25907952 |
