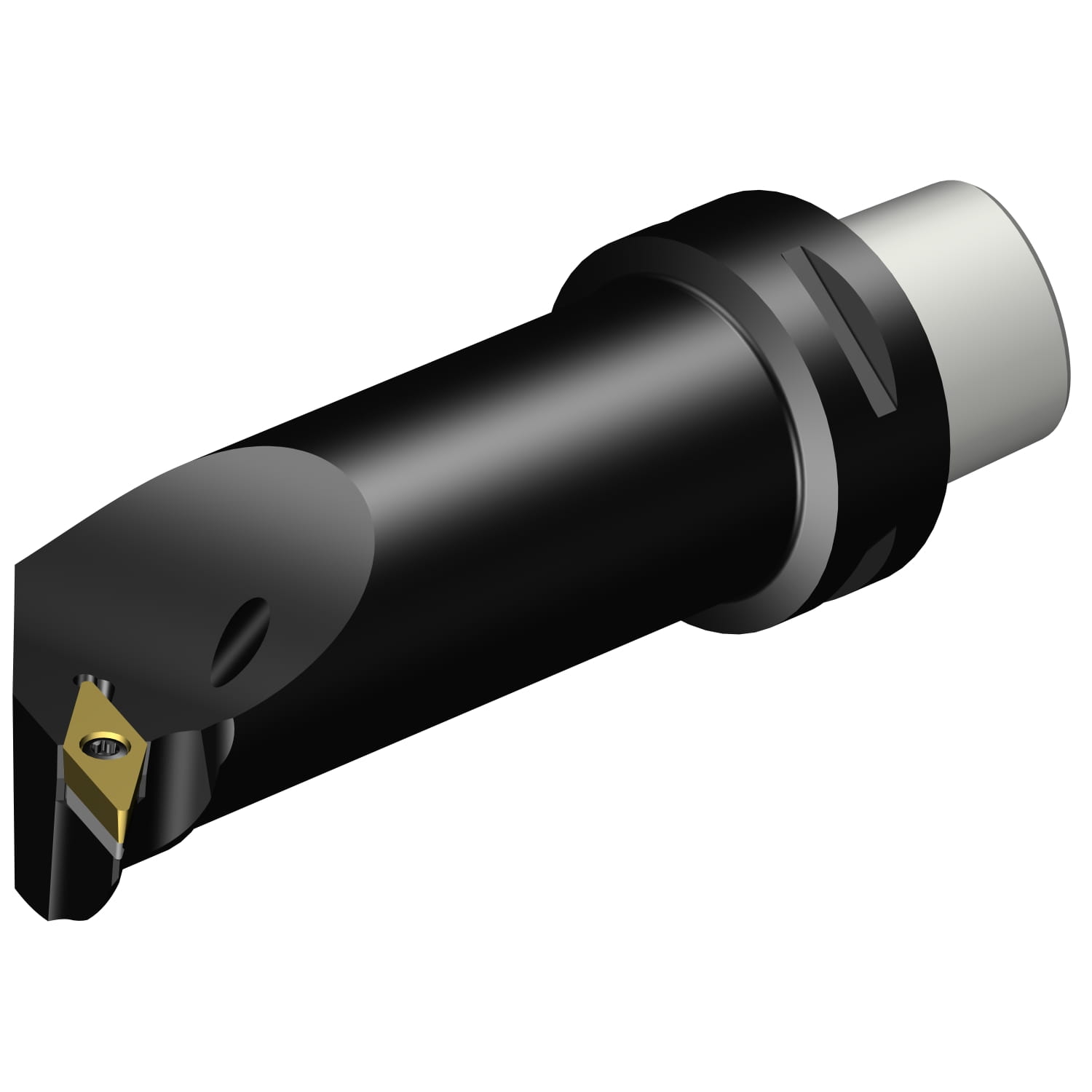

CoroTurn® 107, część tokarska C5-SVQBR-27140-16 ID:5729271 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 902,80 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 360,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 675,25 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5729271
Opis
CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SVQBR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

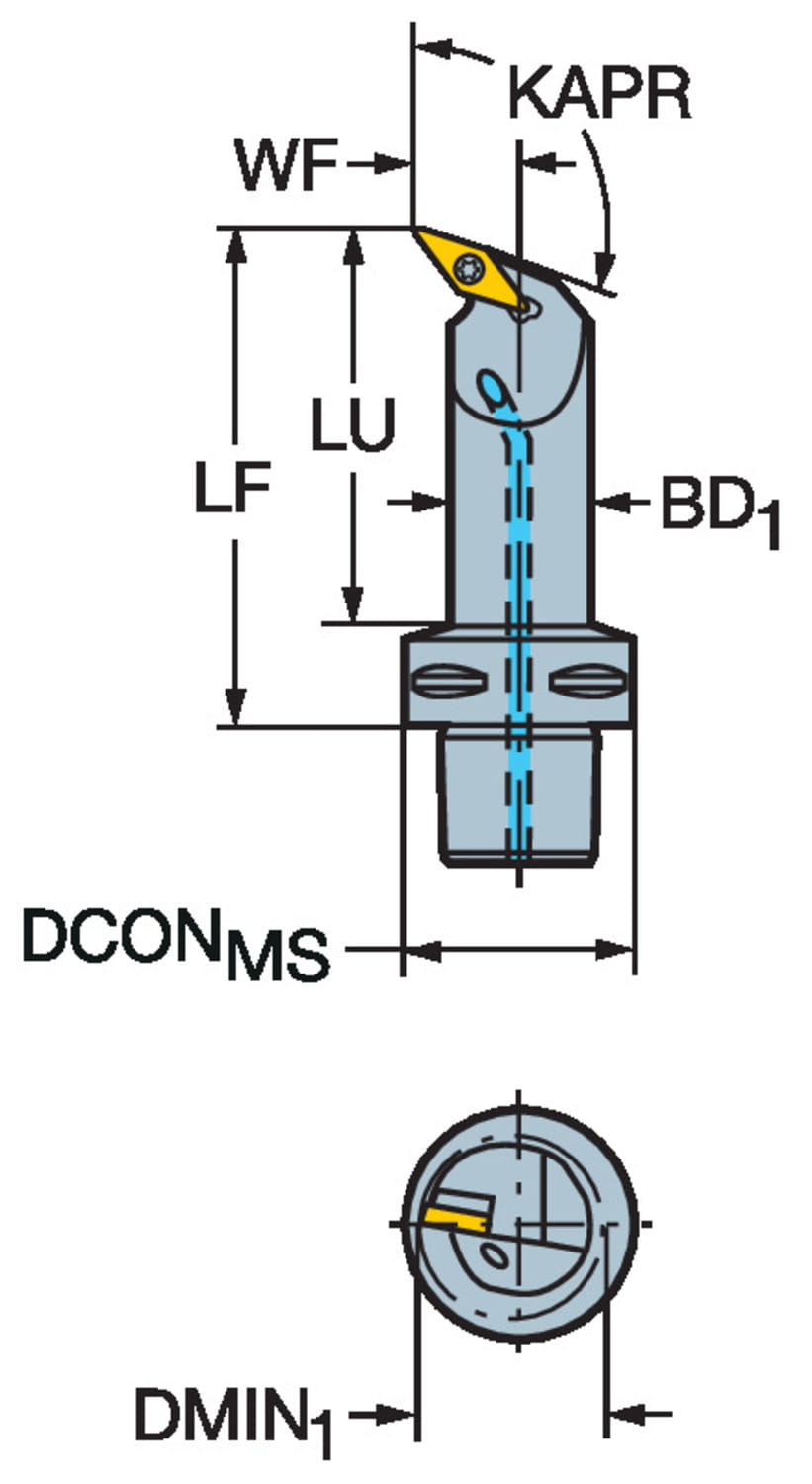

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dmin1 Minimum Bore Diameter | 1.9685 inch |
| Dmin1 Minimum Bore Diameter | 50 mm |
| Lf Functional Length | 5.51181 inch |
| Lf Functional Length | 140 mm |
| Lu Usable Length | 4.68504 inch |
| Lu Usable Length | 119 mm |
| Waga | 3.08427 lb |
| Waga | 1.399 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VBMT 160408/ VCMT 160408 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 107.5 deg |
| Ohx Maximum Overhang | 5.51181 inch |
| Ohx Maximum Overhang | 140 mm |
| Psir Tool Lead Angle | -17.5 deg |

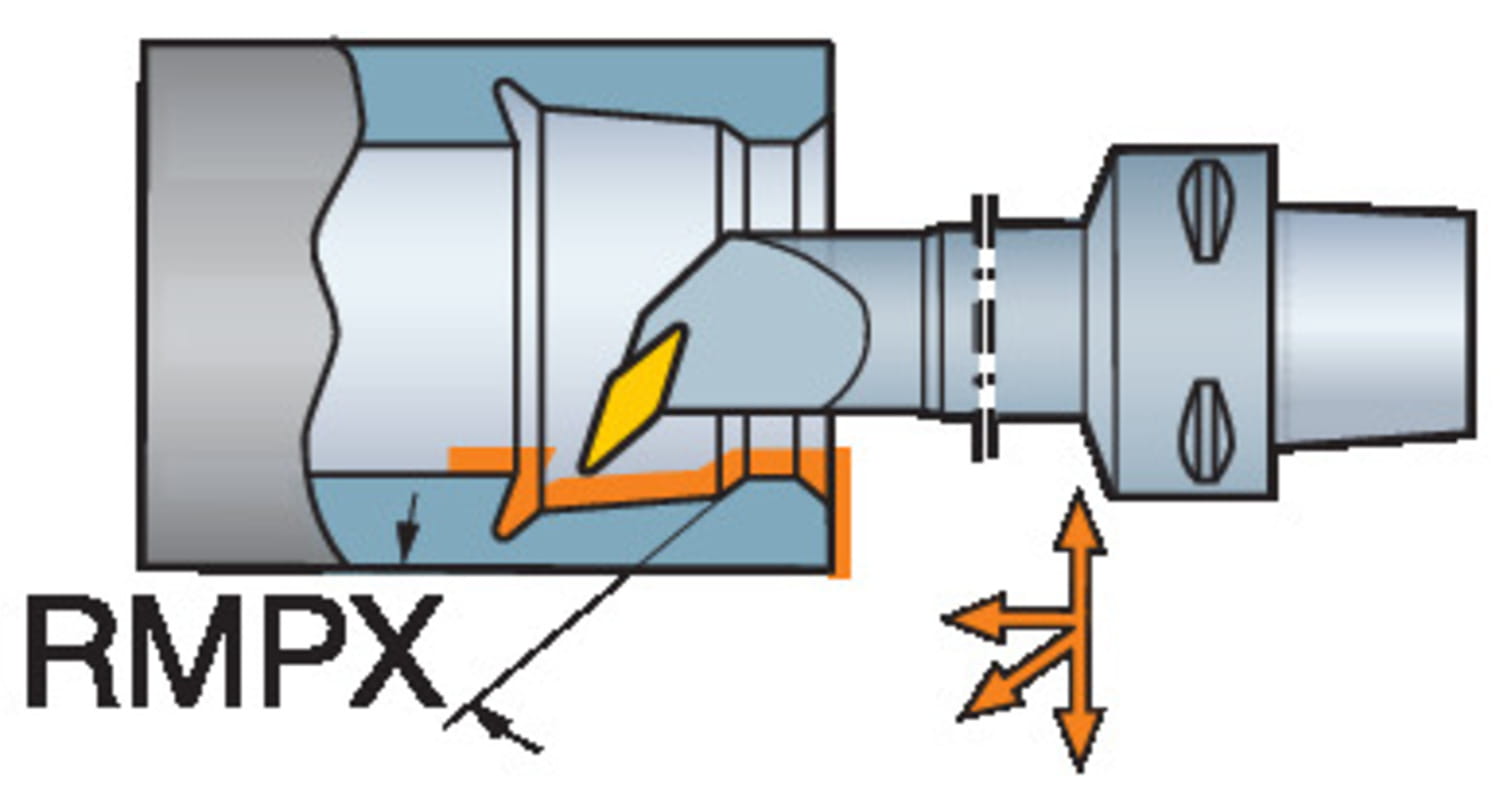

| Rmpx Maximum Ramping Angle | 35 deg |
| Inne parametry | |
| Ean Number | 10056620 |
