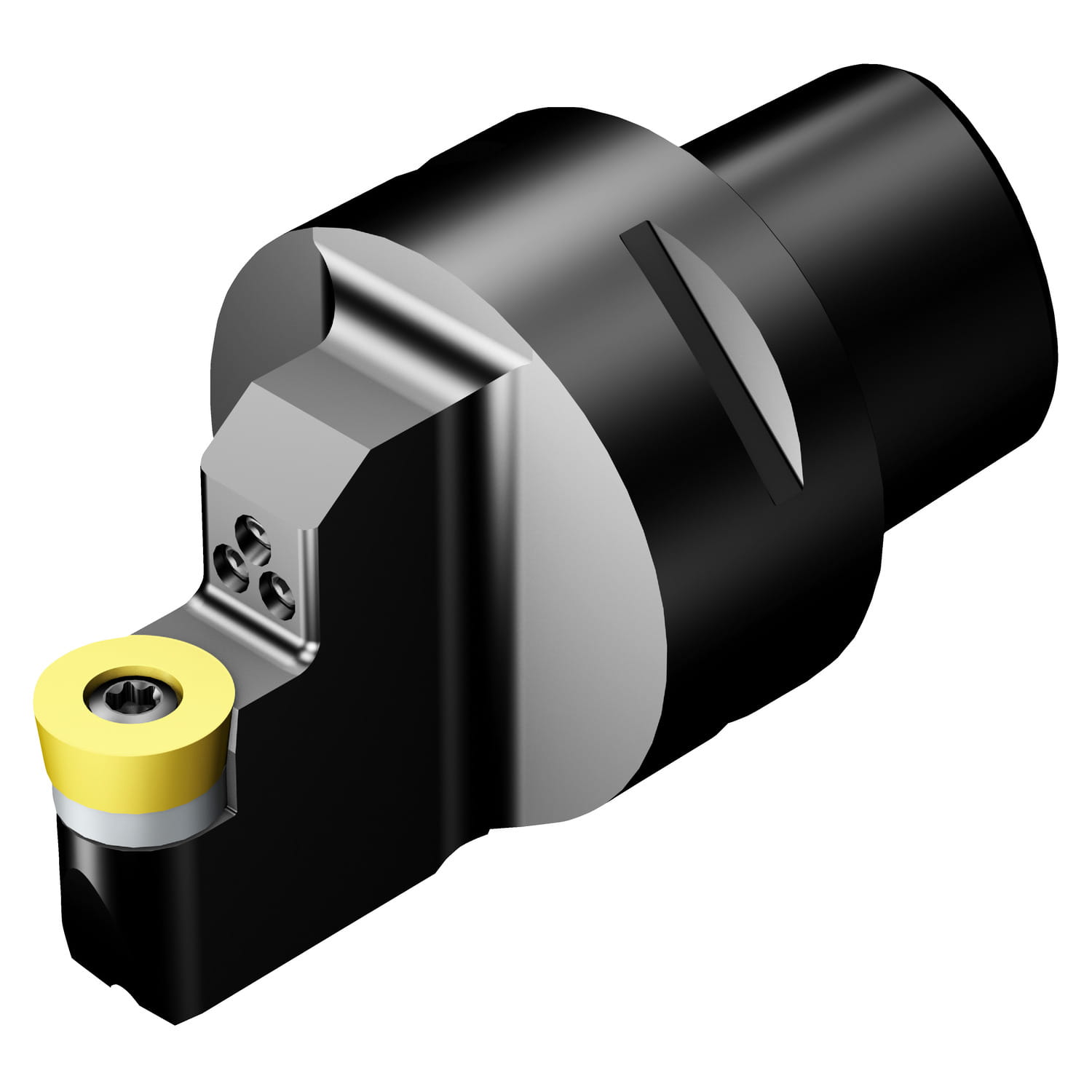

CoroTurn® 107, część tokarska C6-SRDCN-00065-12HP ID:5730182 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 964,30 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 410,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 724,45 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5730182
Opis
CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SRDCN..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

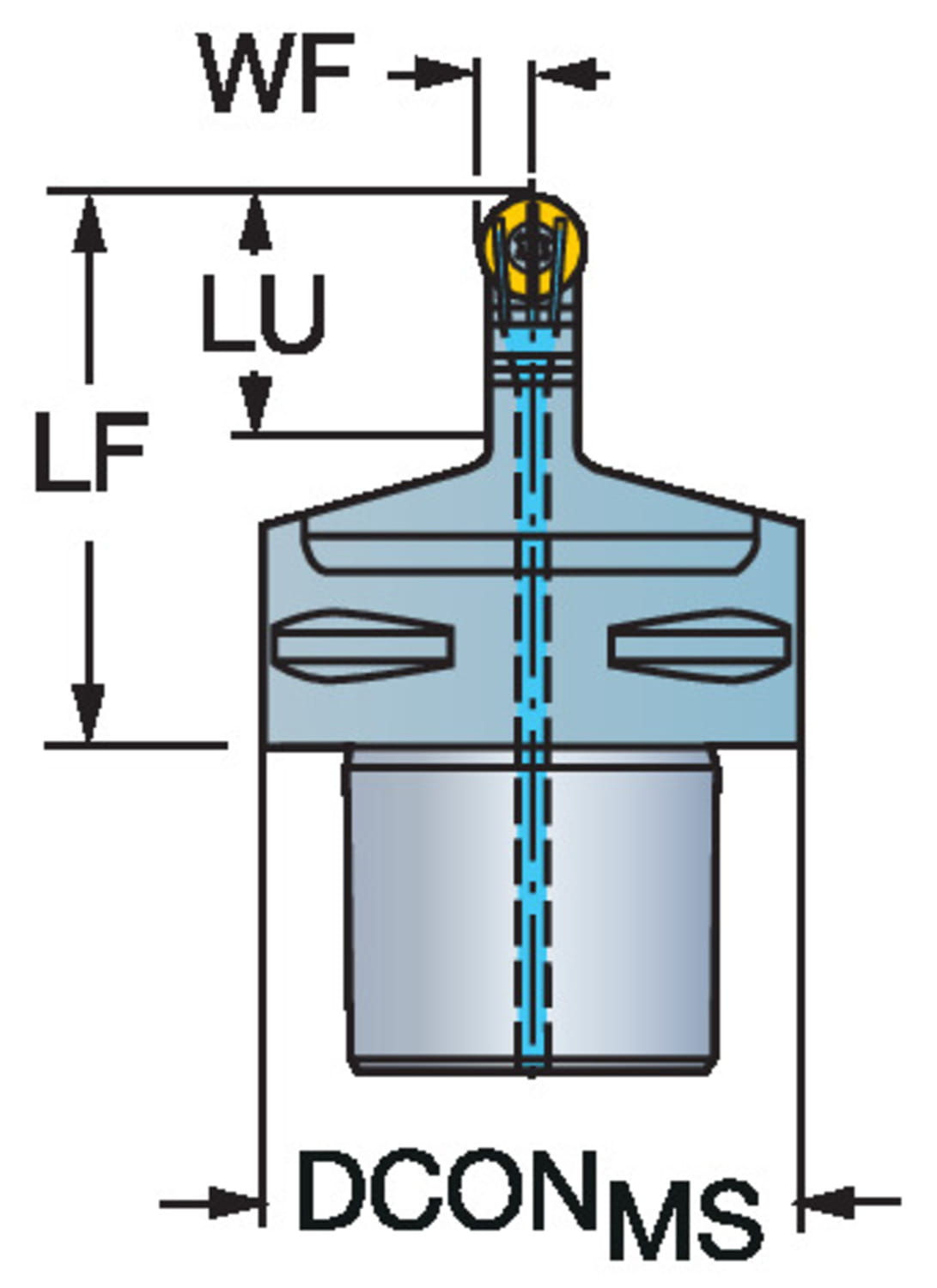

| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |
| Dmin2 Minimum Bore Diameter | 7.48031 inch |
| Dmin2 Minimum Bore Diameter | 190 mm |
| Lf Functional Length | 2.55906 inch |
| Lf Functional Length | 65 mm |
| Lu Usable Length | 1.10236 inch |
| Lu Usable Length | 28 mm |
| Waga | 2.35674 lb |
| Waga | 1.069 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | metric RCMT 1204M0 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 2.55906 inch |
| Ohx Maximum Overhang | 65 mm |

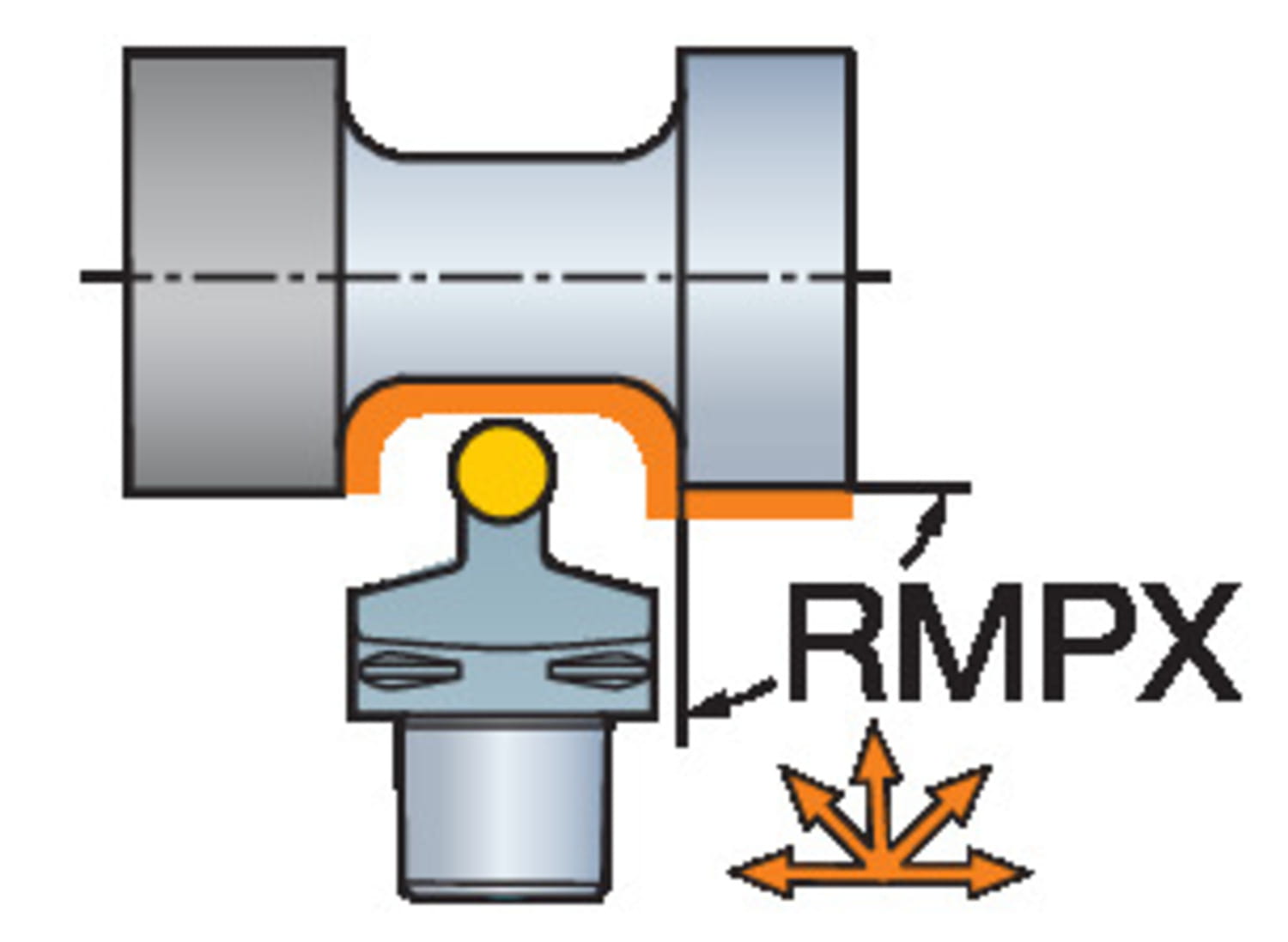

| Rmpx Maximum Ramping Angle | 90 deg |
| Inne parametry | |
| Ean Number | 12290213 |
