CoroTurn® 107, część tokarska C6-SRDCN00065-16AHPA ID:6537695 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 964,30 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 410,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 730,60 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6537695
Opis

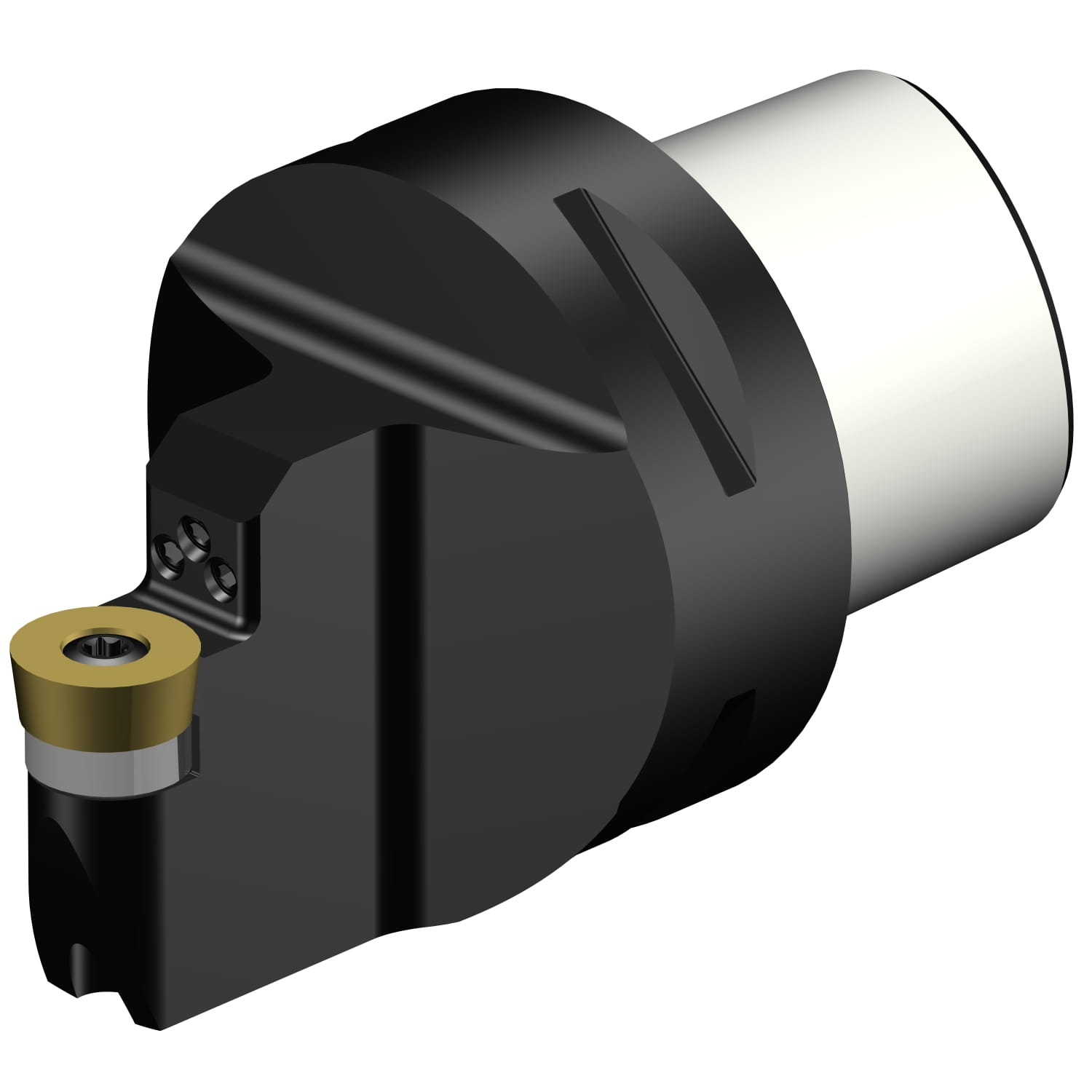

CoroTurn® 107, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, część tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | Cx-SRDCN..HPA |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |

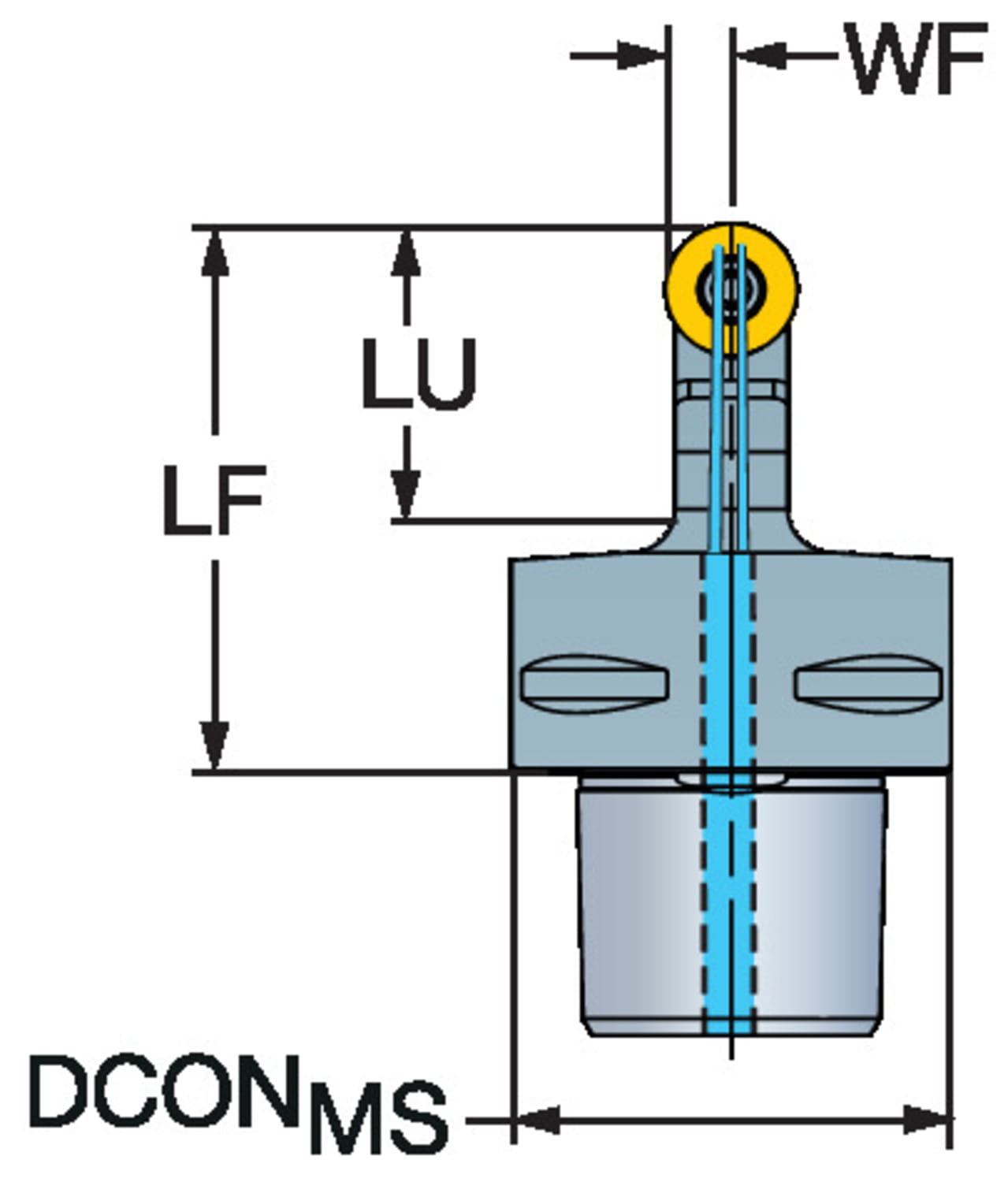

| Wymiary | |
| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |

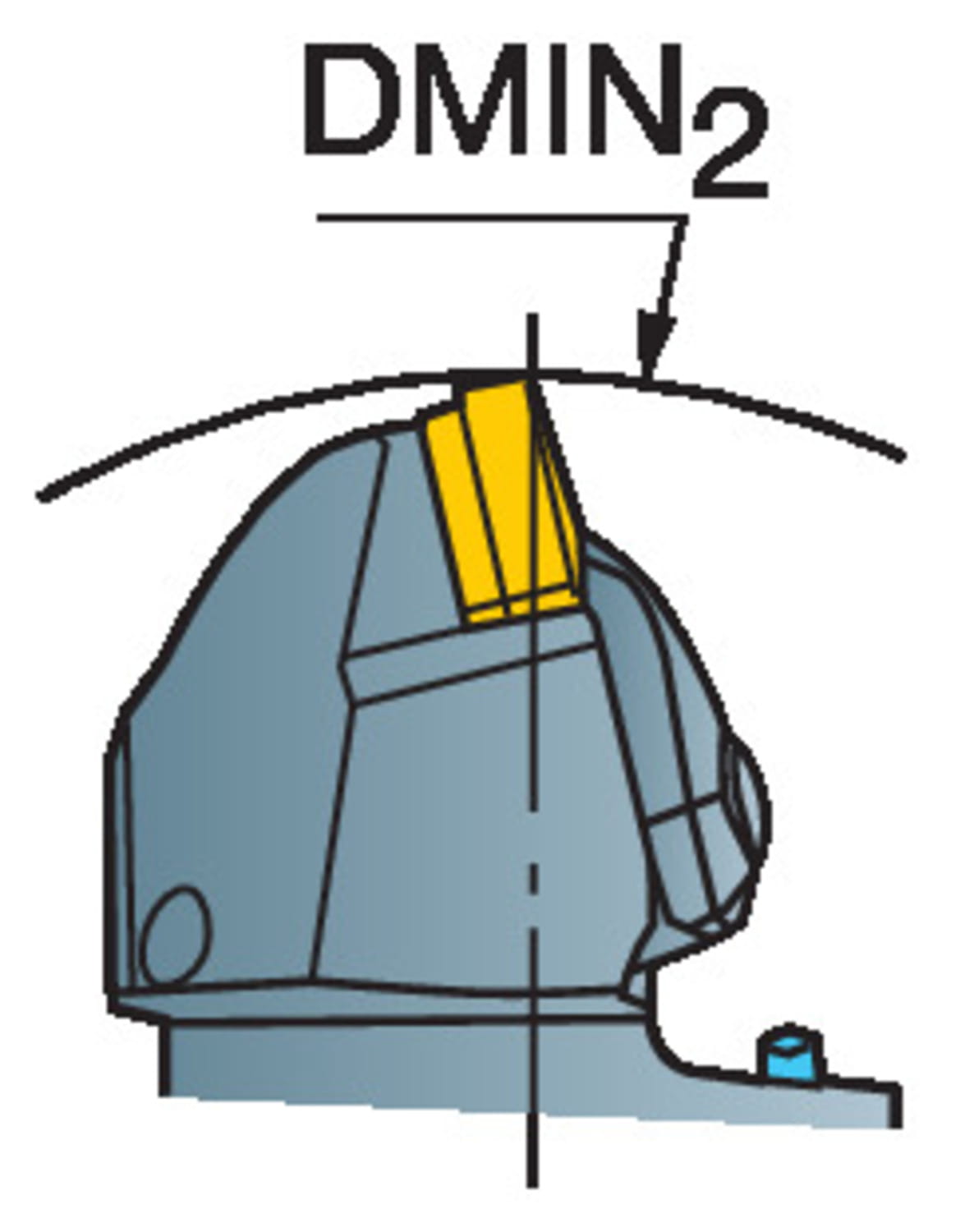

| Dmin2 Minimum Bore Diameter | 7.48031 inch |
| Dmin2 Minimum Bore Diameter | 190 mm |
| Lf Functional Length | 2.55906 inch |
| Lf Functional Length | 65 mm |
| Lu Usable Length | 1.37795 inch |
| Lu Usable Length | 35 mm |
| Waga | 2.04589 lb |
| Waga | 0.928 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cdx Cutting Depth Maximum | 1.37795 inch |
| Cdx Cutting Depth Maximum | 35 mm |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | metric RCMT 1606M0 |
| Cxsc Coolant Exit Style Code | 6: decentral exit with nozzles, adjustable |
| Dpc Damping Property | no |
| Hand Hand | N |
| Ohx Maximum Overhang | 2.55906 inch |
| Ohx Maximum Overhang | 65 mm |

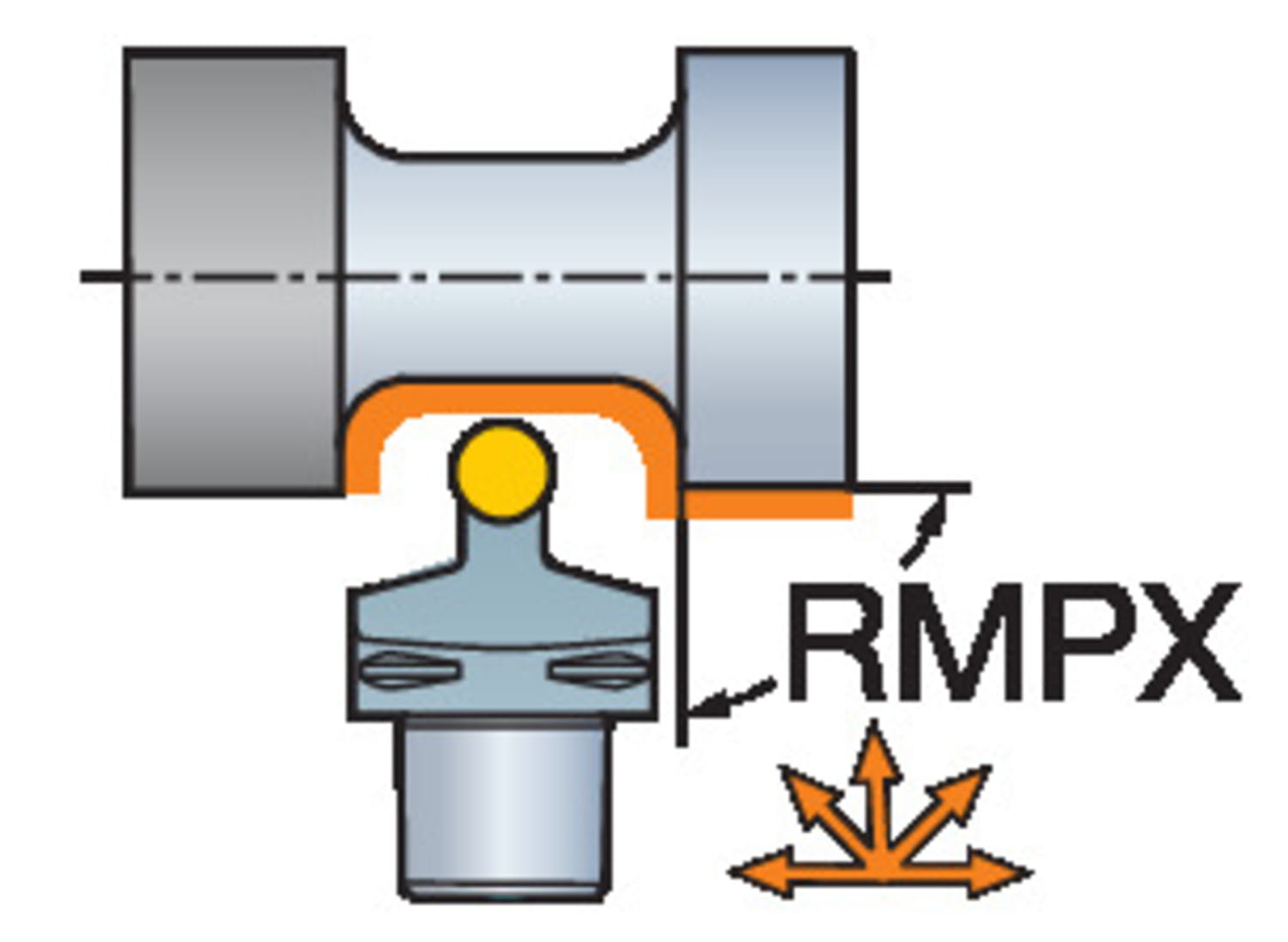

| Rmpx Maximum Ramping Angle | 90 deg |
| Inne parametry | |
| Ean Number | 26537695 |
