CoroTurn® 107, głowica tokarska 570-STFCR-16-09 ID:5764416 Sandvik
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

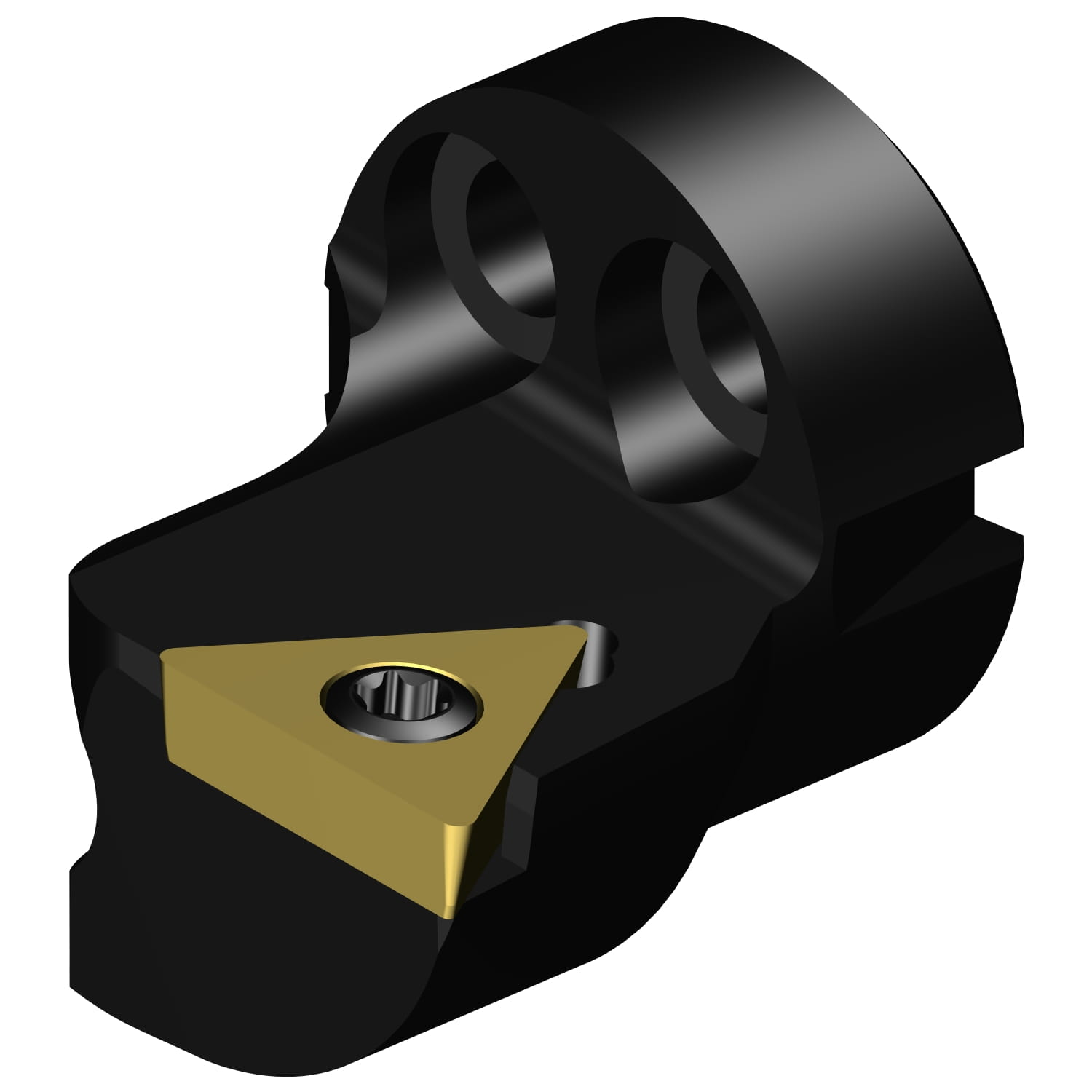

CoroTurn® 107, głowica tokarska

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | 570-STFCR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |

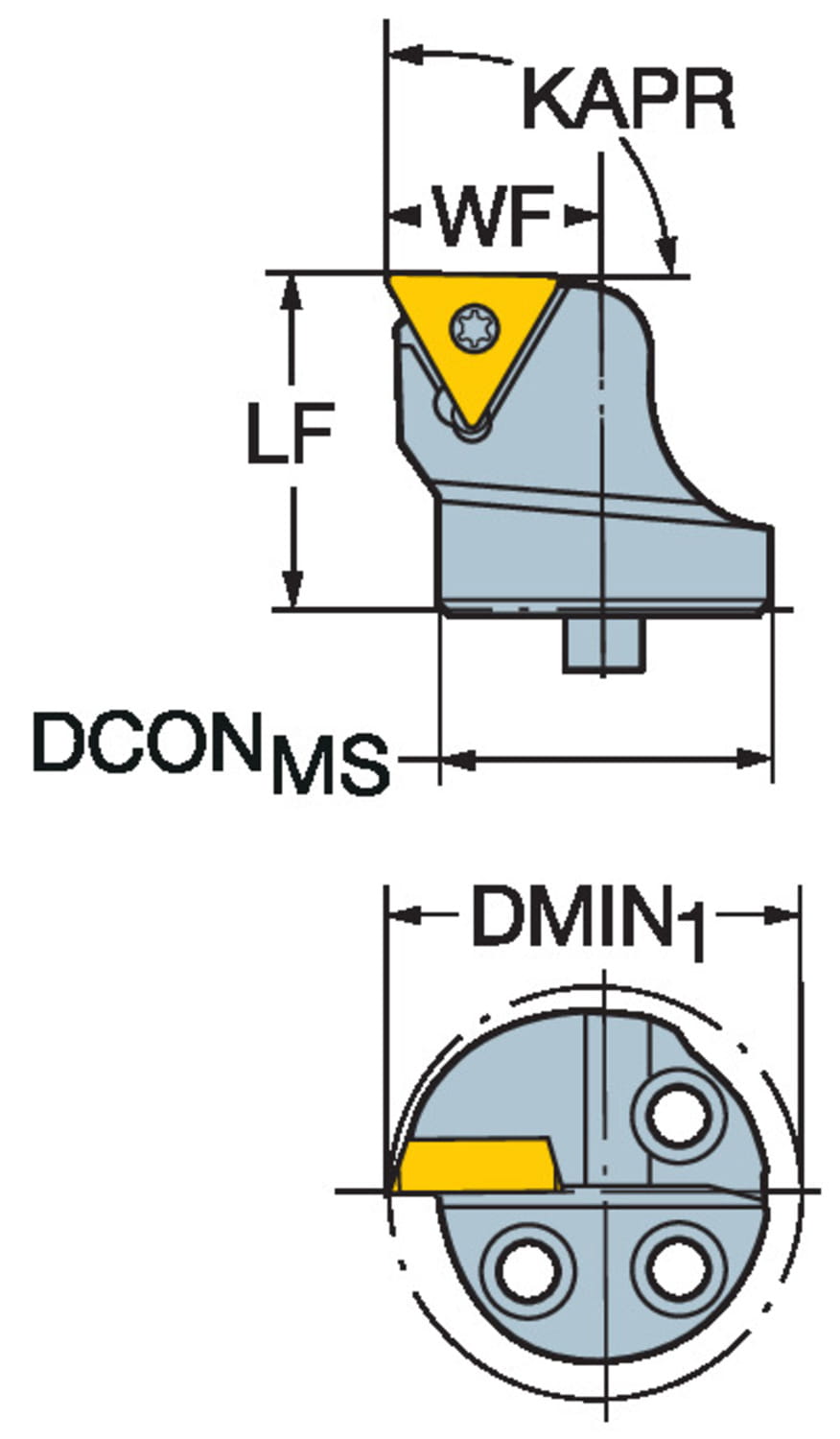

| Wymiary | |
| Dconms Connection Diameter | 0.629921 inch |
| Dconms Connection Diameter | 16 mm |
| Dmin1 Minimum Bore Diameter | 0.787402 inch |
| Dmin1 Minimum Bore Diameter | 20 mm |
| Lf Functional Length | 0.787402 inch |
| Lf Functional Length | 20 mm |
| Waga | 0.084128 lb |
| Waga | 38.16 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 16, -slot coolant |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 8: decentral over slots on the shank |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | TCMT 090204 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 91 deg |
| Ohx Maximum Overhang | 0.787402 inch |
| Ohx Maximum Overhang | 20 mm |
| Psir Tool Lead Angle | -1 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12054534 |
| Product Replacement Description - Pl-Pl | W pełni zamienny z oryginalnym produktem. |
| Replacement Product - Material Id | 8665130 |
| Replacement Product - Ordering Code | SL-STFCR-16-09-11D |
| Replacement Product Url | https://www.sandvik.coromant.com/en-us/product-details?c=SL-STFCR-16-09-11D |
Informacje o zamienniku:
W pełni zamienny z oryginalnym produktem.
Kod zamiennika: SL-STFCR-16-09-11D
ID materiału zamiennika: 8665130
