CoroTurn® 107, głowica tokarska 570-SVPBR-40-16-L ID:5764431 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 066,40 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 680,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 795,80 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5764431
Opis

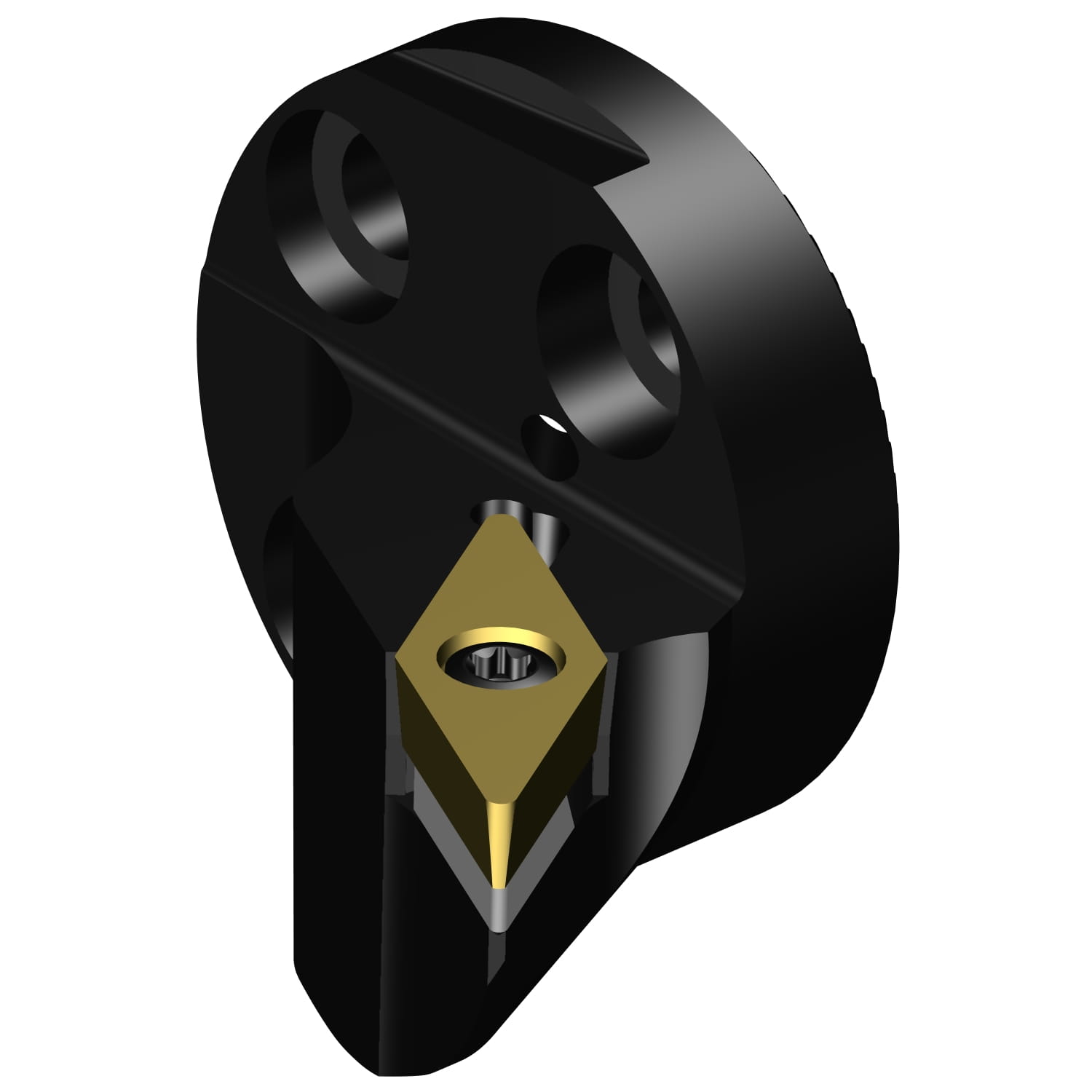

CoroTurn® 107, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | 570-SVPBR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |
| Wymiary | |

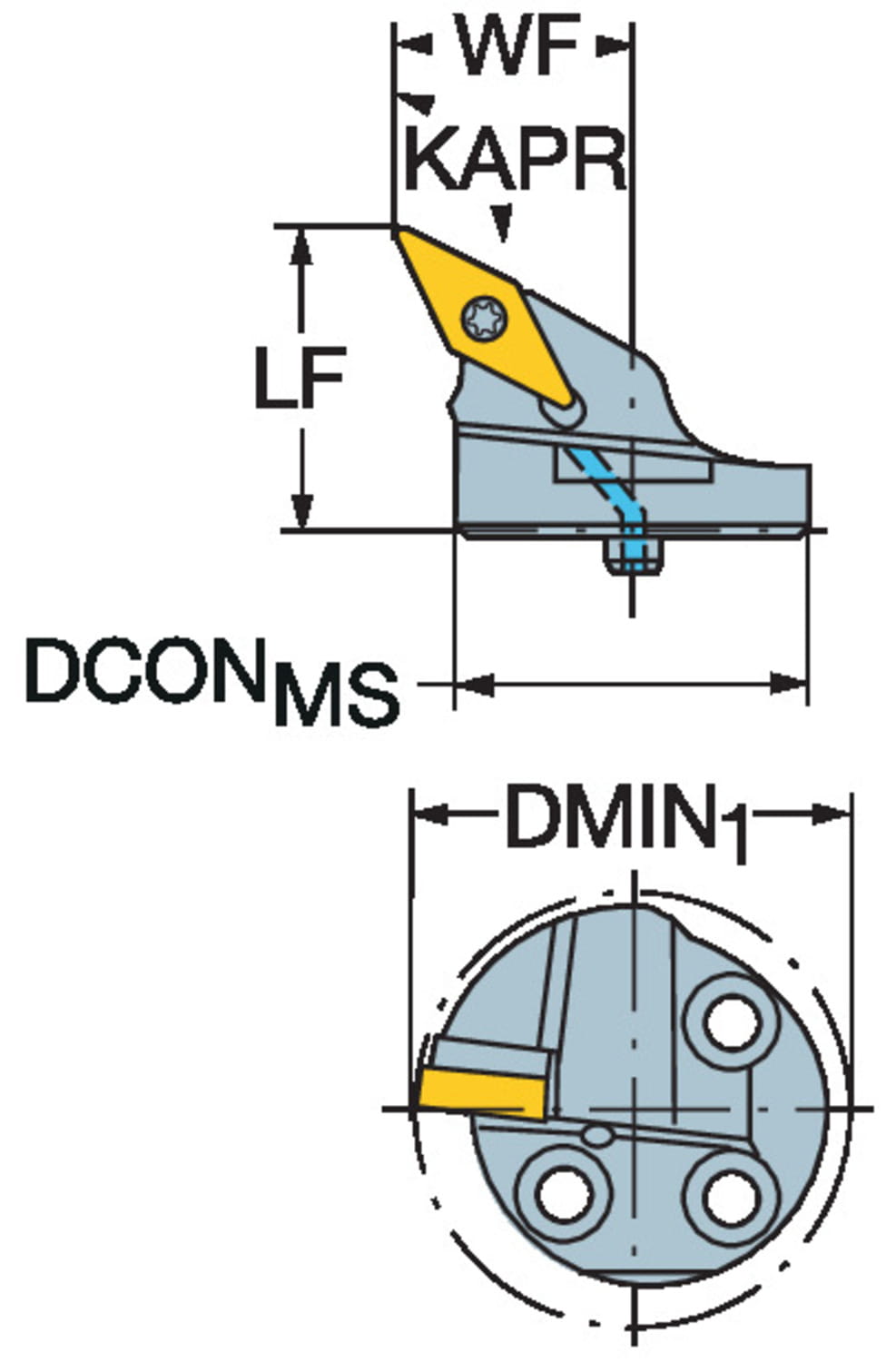

| Dconms Connection Diameter | 1.5748 inch |
| Dconms Connection Diameter | 40 mm |
| Dmin1 Minimum Bore Diameter | 1.9685 inch |
| Dmin1 Minimum Bore Diameter | 50 mm |
| Lf Functional Length | 1.33858 inch |
| Lf Functional Length | 34 mm |
| Waga | 0.28594 lb |
| Waga | 129.7 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 40 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VBMT 160408/ VCMT 160408 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 117.5 deg |
| Ohx Maximum Overhang | 1.33858 inch |
| Ohx Maximum Overhang | 34 mm |
| Psir Tool Lead Angle | -27.5 deg |

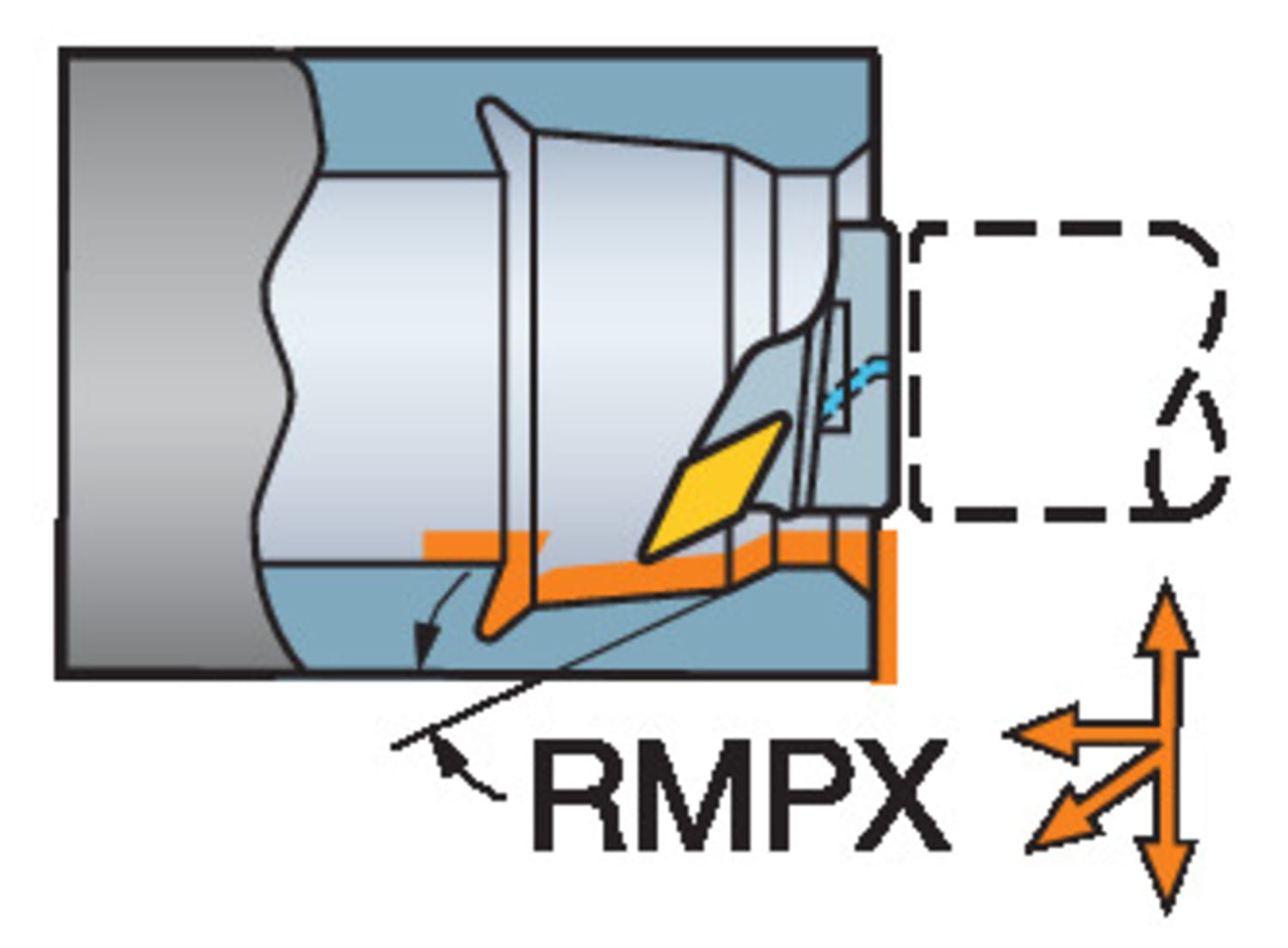

| Rmpx Maximum Ramping Angle | 25 deg |
| Inne parametry | |
| Ean Number | 11797166 |
