CoroTurn® 107, głowica tokarska SL-SCLCR-25-09HP ID:6536141 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 238,60 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 820,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 152,50 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6536141
Opis

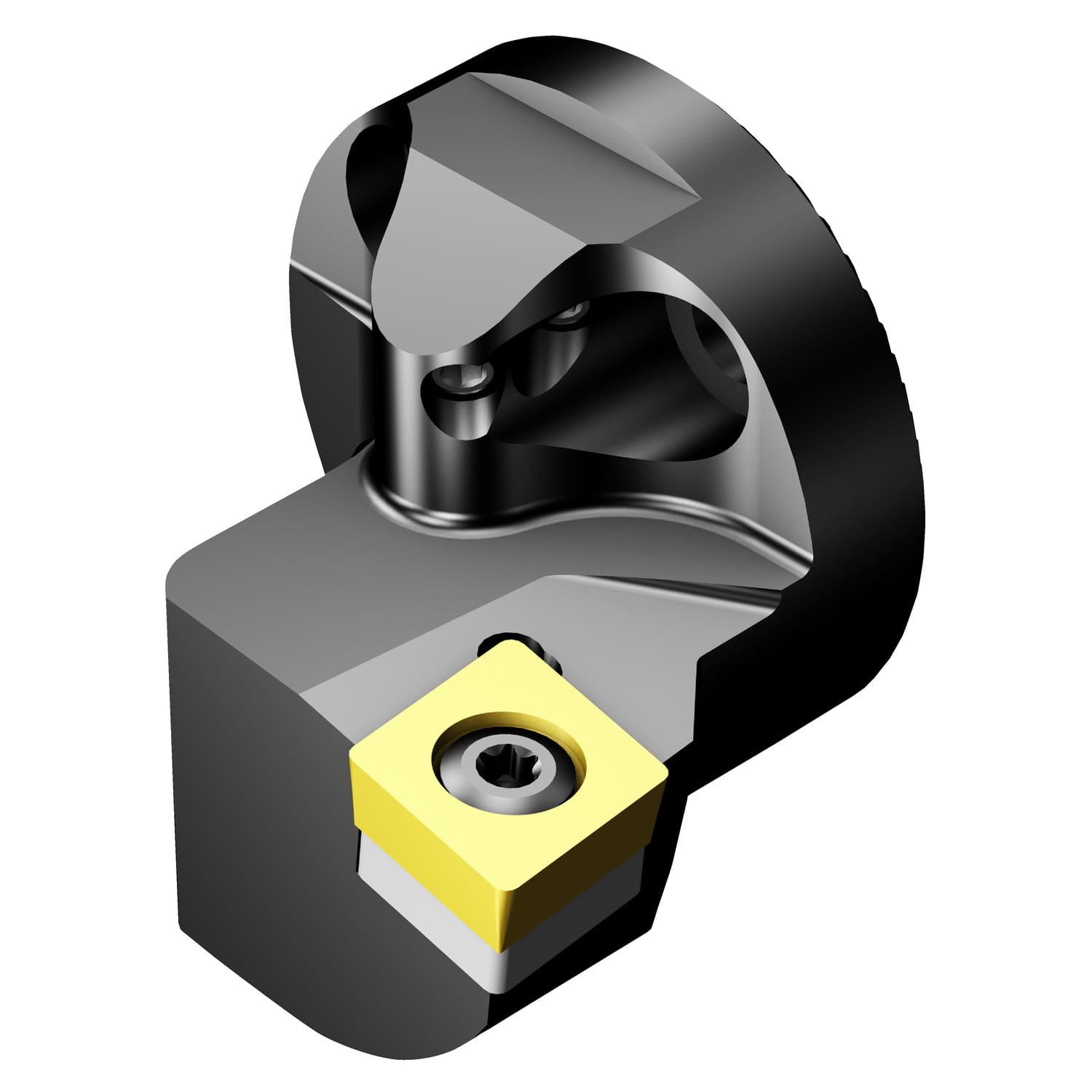

CoroTurn® 107, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | SL-SCLCR/L..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |

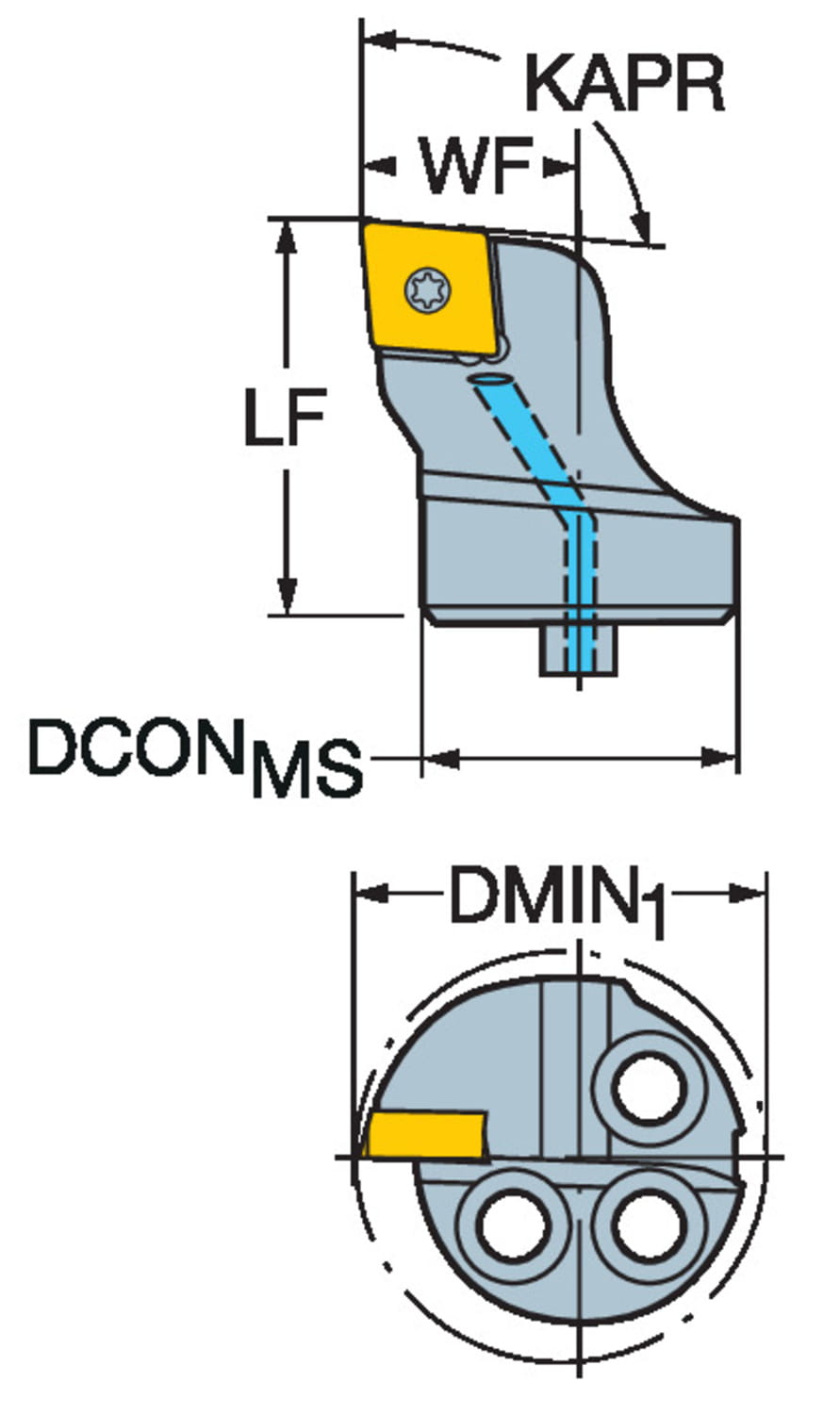

| Wymiary | |
| Dconms Connection Diameter | 0.984252 inch |
| Dconms Connection Diameter | 25 mm |
| Dmin1 Minimum Bore Diameter | 1.25984 inch |
| Dmin1 Minimum Bore Diameter | 32 mm |
| Lf Functional Length | 0.787402 inch |
| Lf Functional Length | 20 mm |
| Waga | 0.132277 lb |
| Waga | 60 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 25 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CCMT 09T308 |
| Cxsc Coolant Exit Style Code | 7: axial inclined focused exit with nozzle |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 0.787402 inch |
| Ohx Maximum Overhang | 20 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 26536141 |
