CoroTurn® 107, głowica tokarska SL-SCLCR-32-09-QC ID:5750320 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 257,05 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 835,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 961,85 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5750320
Opis

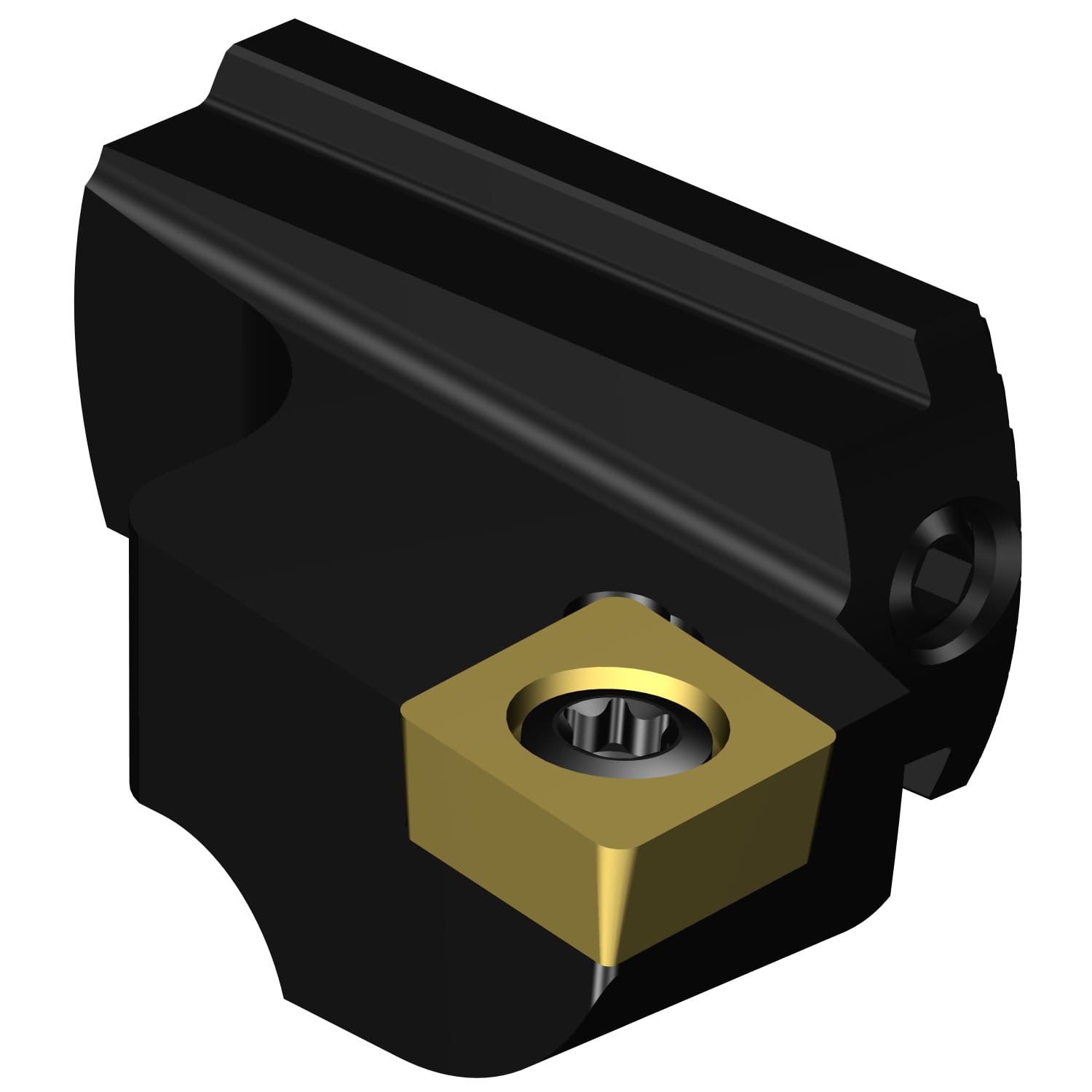

CoroTurn® 107, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | SL-SCLCR/L-QC |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |

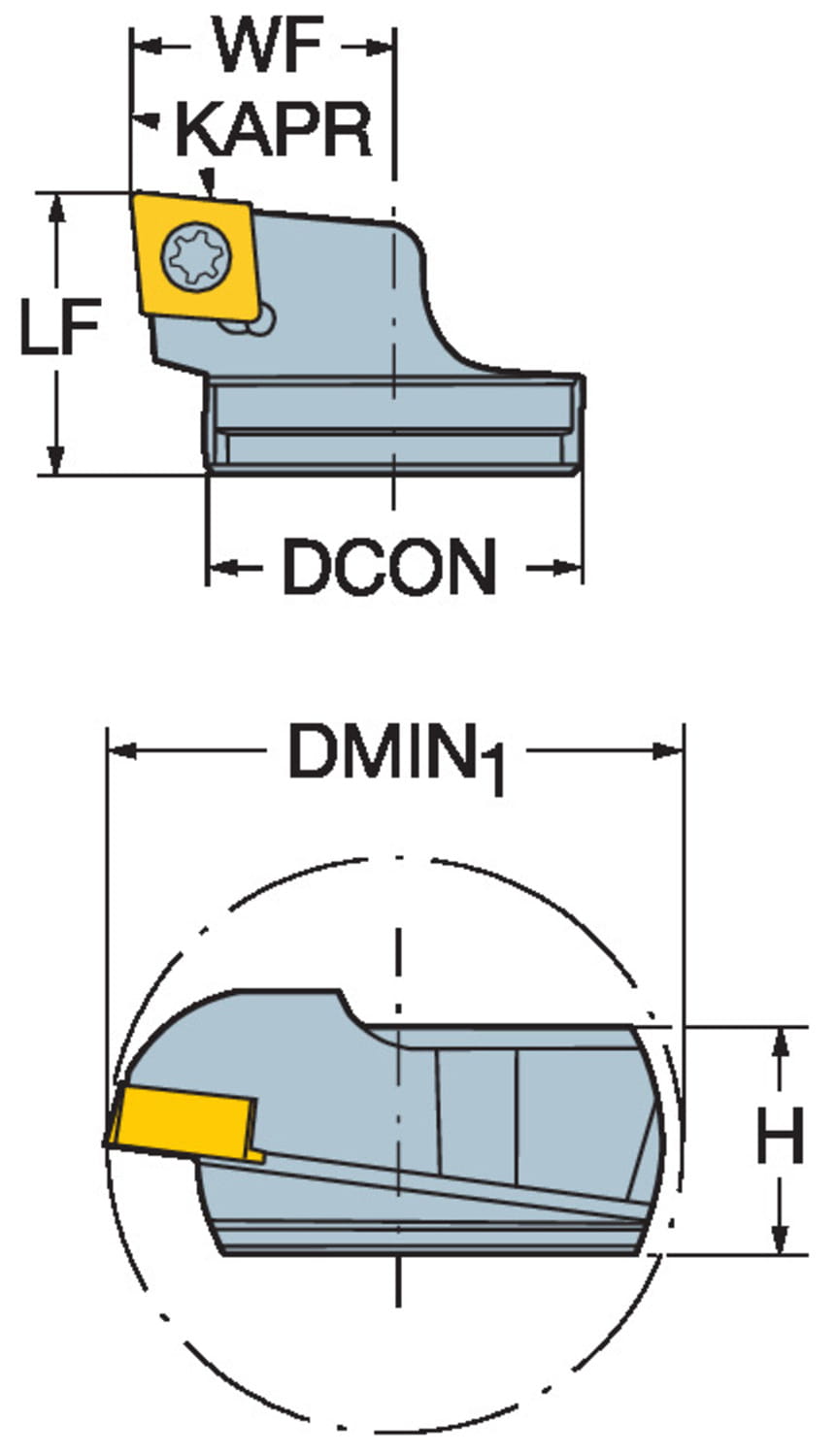

| Wymiary | |
| Dconms Connection Diameter | 1.25984 inch |
| Dconms Connection Diameter | 32 mm |
| Dmin1 Minimum Bore Diameter | 1.5748 inch |
| Dmin1 Minimum Bore Diameter | 40 mm |
| H Shank Height | 0.57874 inch |
| H Shank Height | 14.7 mm |
| Lf Functional Length | 0.866142 inch |
| Lf Functional Length | 22 mm |
| Waga | 0.17174 lb |
| Waga | 77.9 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (quick change) -size 32 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CCMT 09T308 |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 0.866142 inch |
| Ohx Maximum Overhang | 22 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12358286 |
