CoroTurn® 107, głowica tokarska SL-SDXCL-16-07-13D ID:8665125 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 574,40 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 280,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 512,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
8665125
Opis

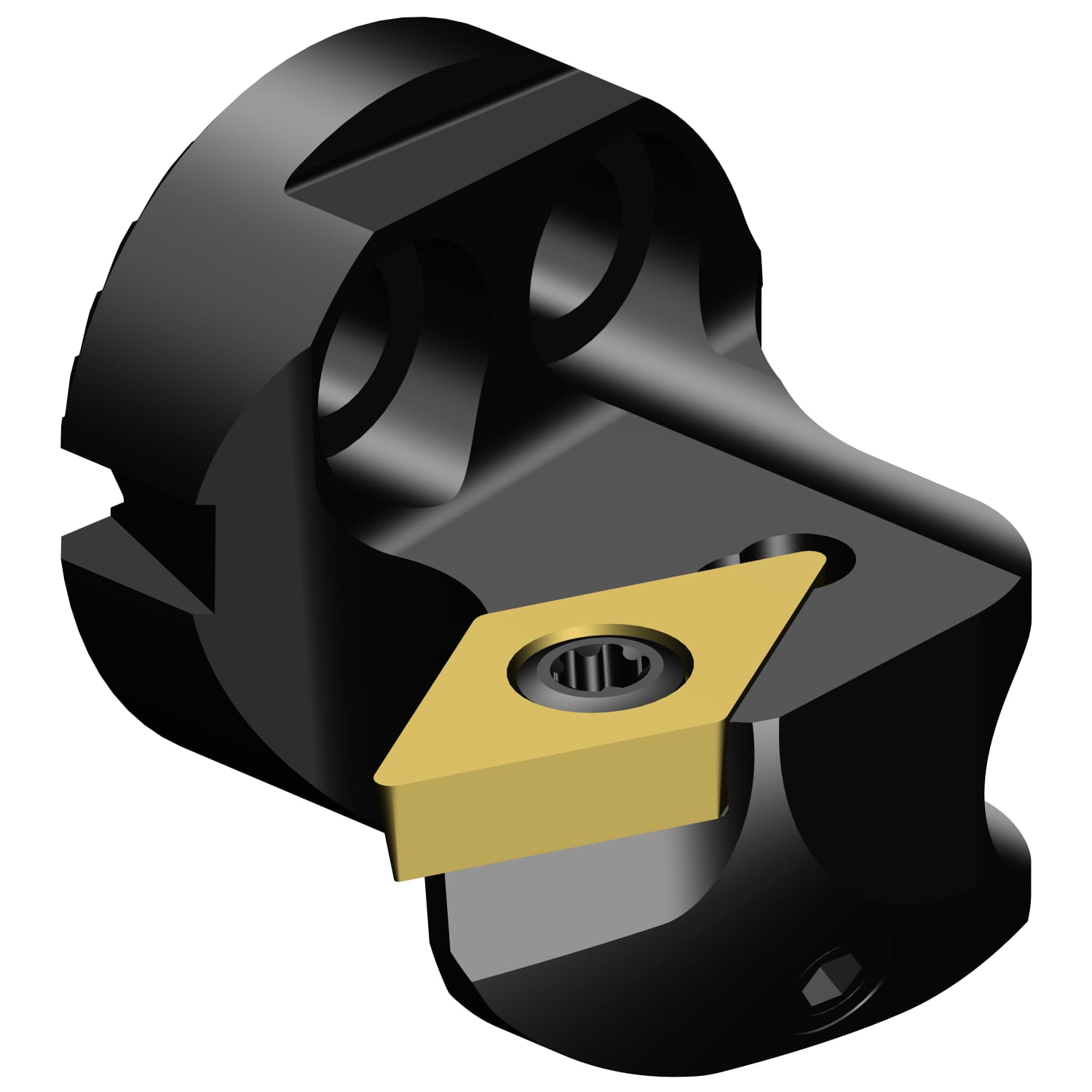

CoroTurn® 107, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | SL-SDXCR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |

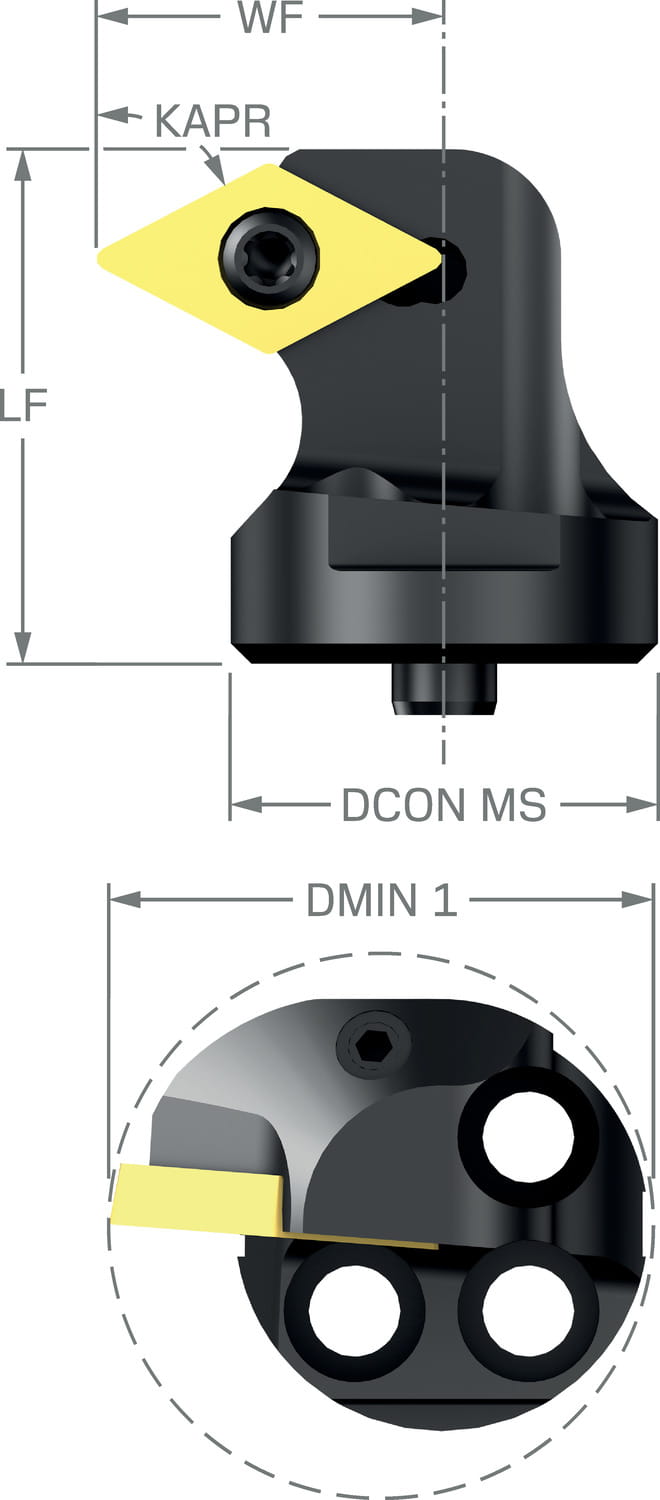

| Wymiary | |
| Dconms Connection Diameter | 0.629921 inch |
| Dconms Connection Diameter | 16 mm |
| Dmin1 Minimum Bore Diameter | 0.866142 inch |
| Dmin1 Minimum Bore Diameter | 22 mm |
| Lf Functional Length | 0.590551 inch |
| Lf Functional Length | 15 mm |
| Waga | 0.044092 lb |
| Waga | 0.02 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 16, -slot coolant |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 8: decentral over slots on the shank |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DCMT 070204 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr1 Tool Cutting Edge Angle | 62.5 deg |
| Ohx Maximum Overhang | 0.590551 inch |
| Ohx Maximum Overhang | 15 mm |
| Psir Tool Lead Angle | 27.5 deg |
| Rmpx Maximum Ramping Angle | 60 deg |
| Inne parametry | |
| Ean Number | 7323228405192 |
