CoroTurn® 107, głowica tokarska do SpiroGrooving™ SL-SVXBR-40A-16-050A ID:7933263 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 004,90 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 630,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 851,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7933263
Opis

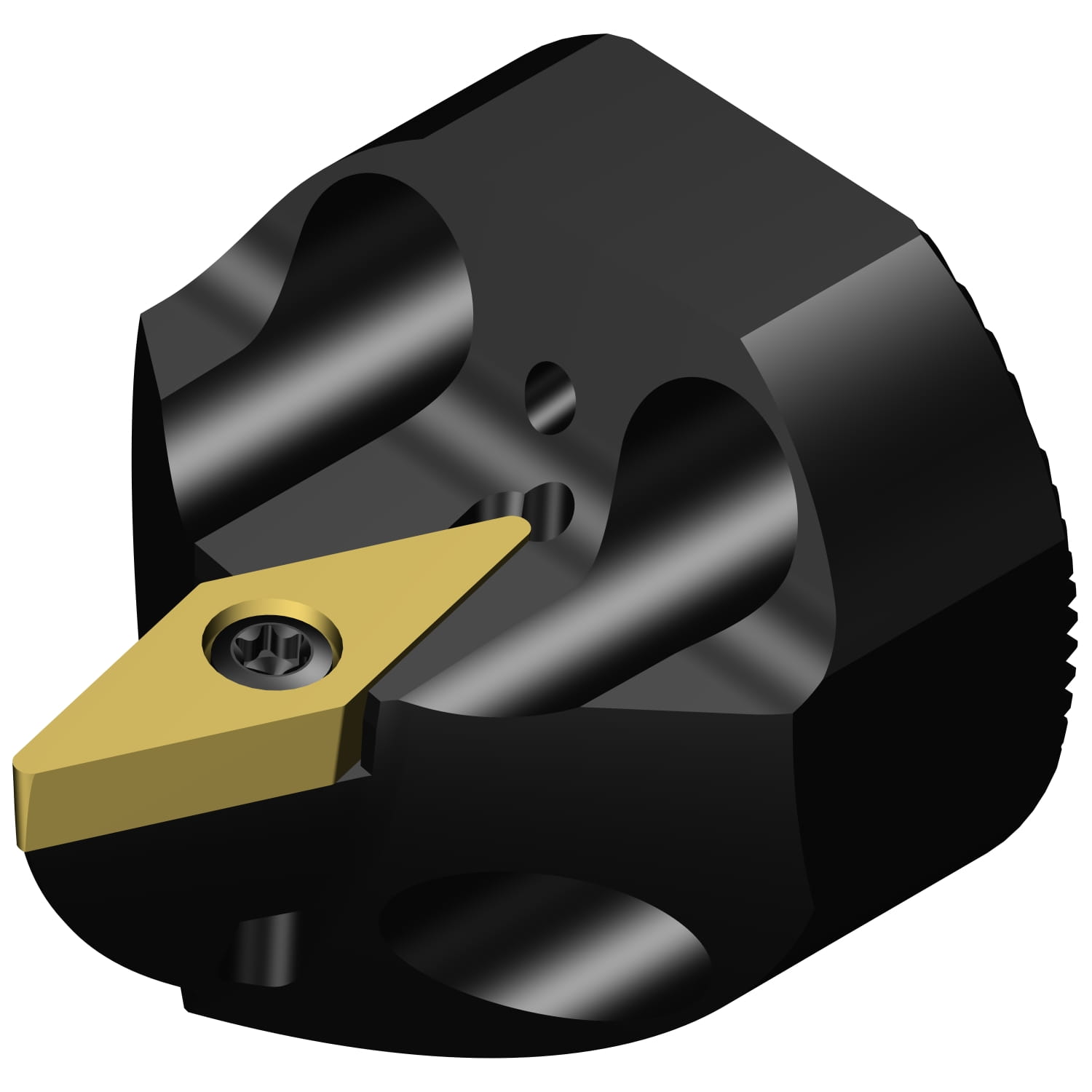

CoroTurn® 107, głowica tokarska do SpiroGrooving™
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska do SpiroGrooving™ |
| Rodzina produktów | 2022 |
| Product Subfamily Code (Tsyc) | SL-SVXBR/L-40A |
| Rodzina produktów | System Products |
| Country Of Origin | IN |

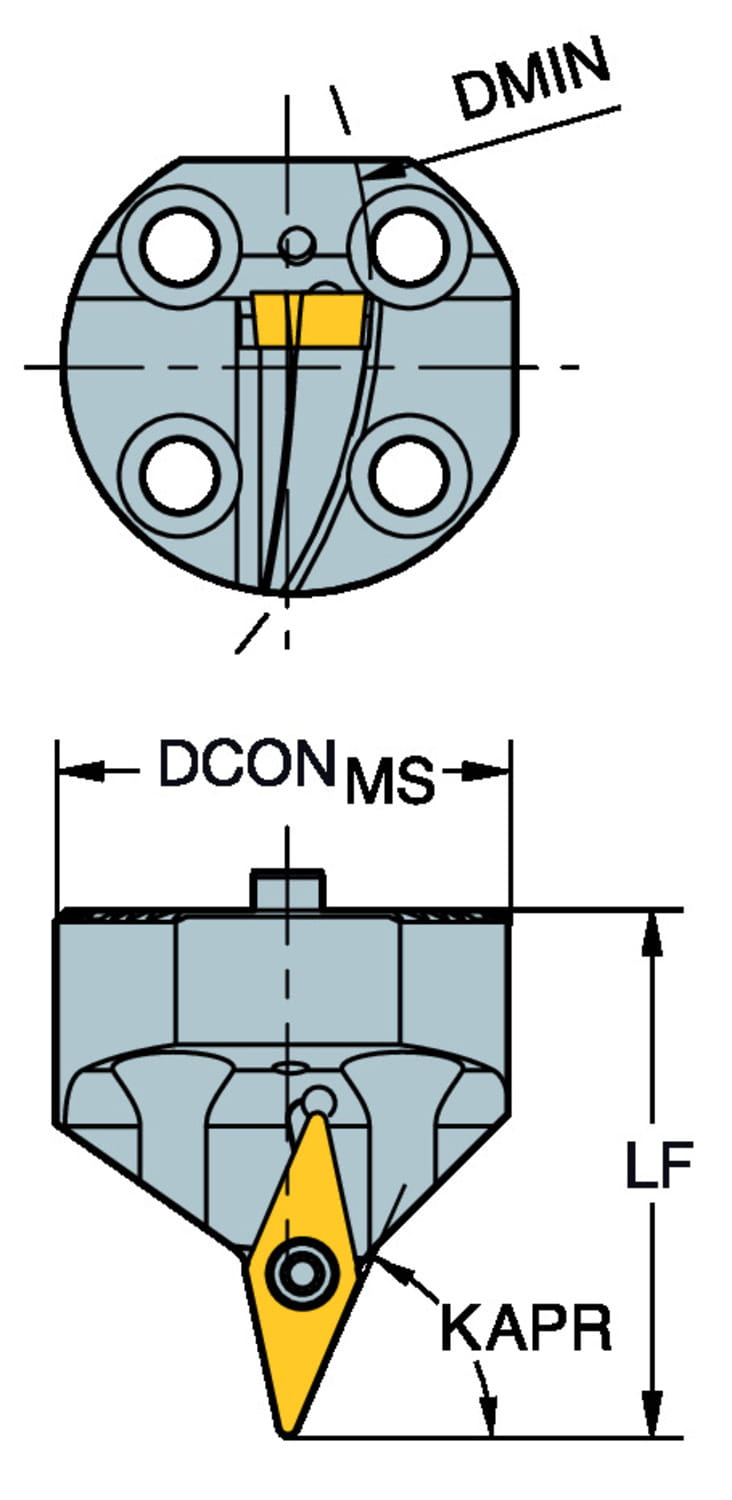

| Wymiary | |
| Dconms Connection Diameter | 1.5748 inch |
| Dconms Connection Diameter | 40 mm |
| Dmin1 Minimum Bore Diameter | 1.9685 inch |
| Dmin1 Minimum Bore Diameter | 50 mm |
| Lf Functional Length | 1.77165 inch |
| Lf Functional Length | 45 mm |
| Lu Usable Length | 0.590551 inch |
| Lu Usable Length | 15 mm |
| Waga | 0.434311 lb |
| Waga | 197 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 40A (HF= +6) |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VBMT 160408/ VCMT 160408 |
| Cxsc Coolant Exit Style Code | 4: axial concentric on circle |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 67 deg |
| Ohx Maximum Overhang | 1.77165 inch |
| Ohx Maximum Overhang | 45 mm |
| Psir Tool Lead Angle | 23 deg |
| Rmpx Maximum Ramping Angle | 75 deg |
| Inne parametry | |
| Ean Number | 7323225397353 |
