CoroTurn® 107, głowica tokarska do SpiroGrooving™ SL-SVXCR-25A-11-030 ID:7079653 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 845,00 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 500,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 703,55 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7079653
Opis

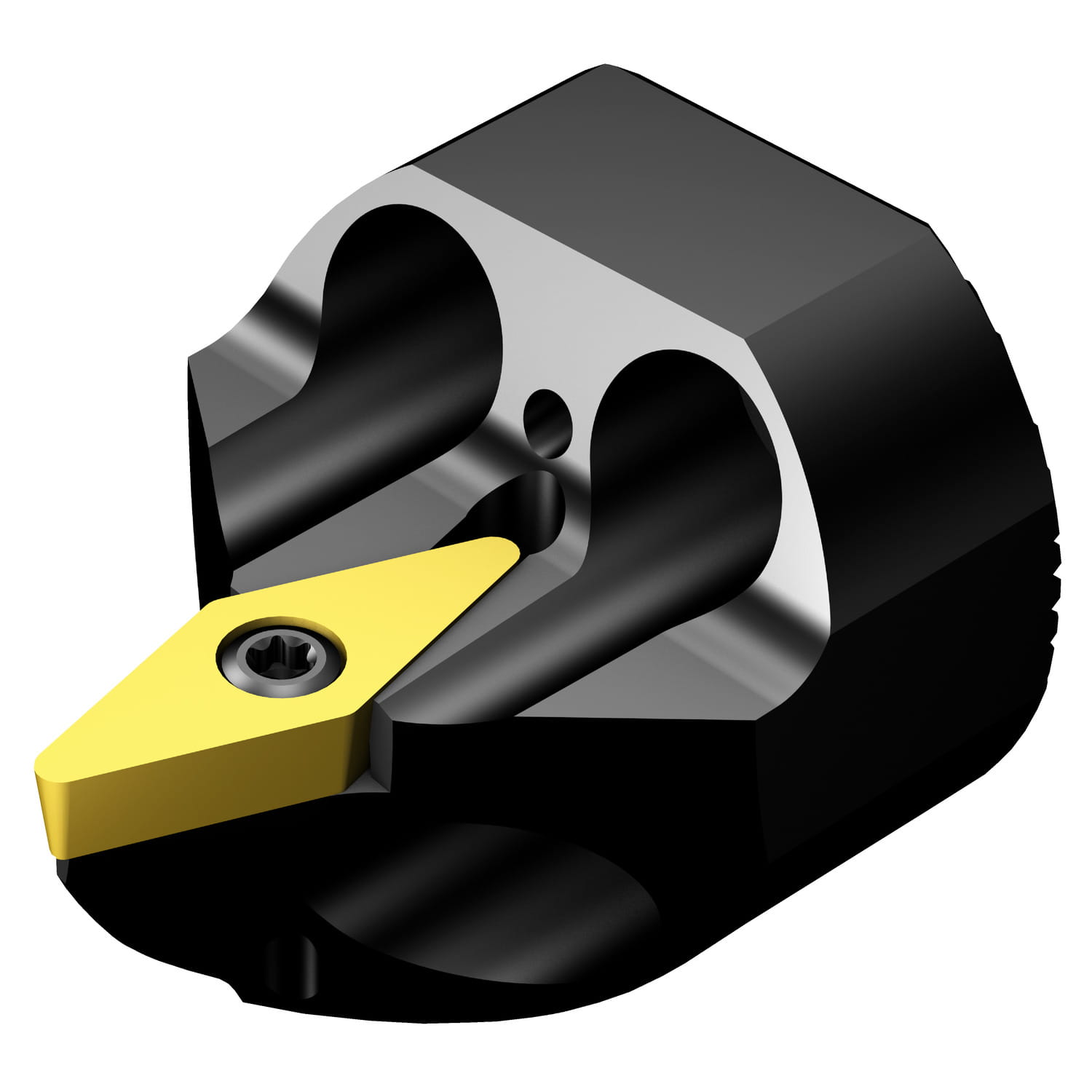

CoroTurn® 107, głowica tokarska do SpiroGrooving™
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, głowica tokarska do SpiroGrooving™ |
| Rodzina produktów | 2022 |
| Product Subfamily Code (Tsyc) | SL-SVXBR/L-25A |
| Rodzina produktów | System Products |
| Country Of Origin | IN |
| Wymiary | |

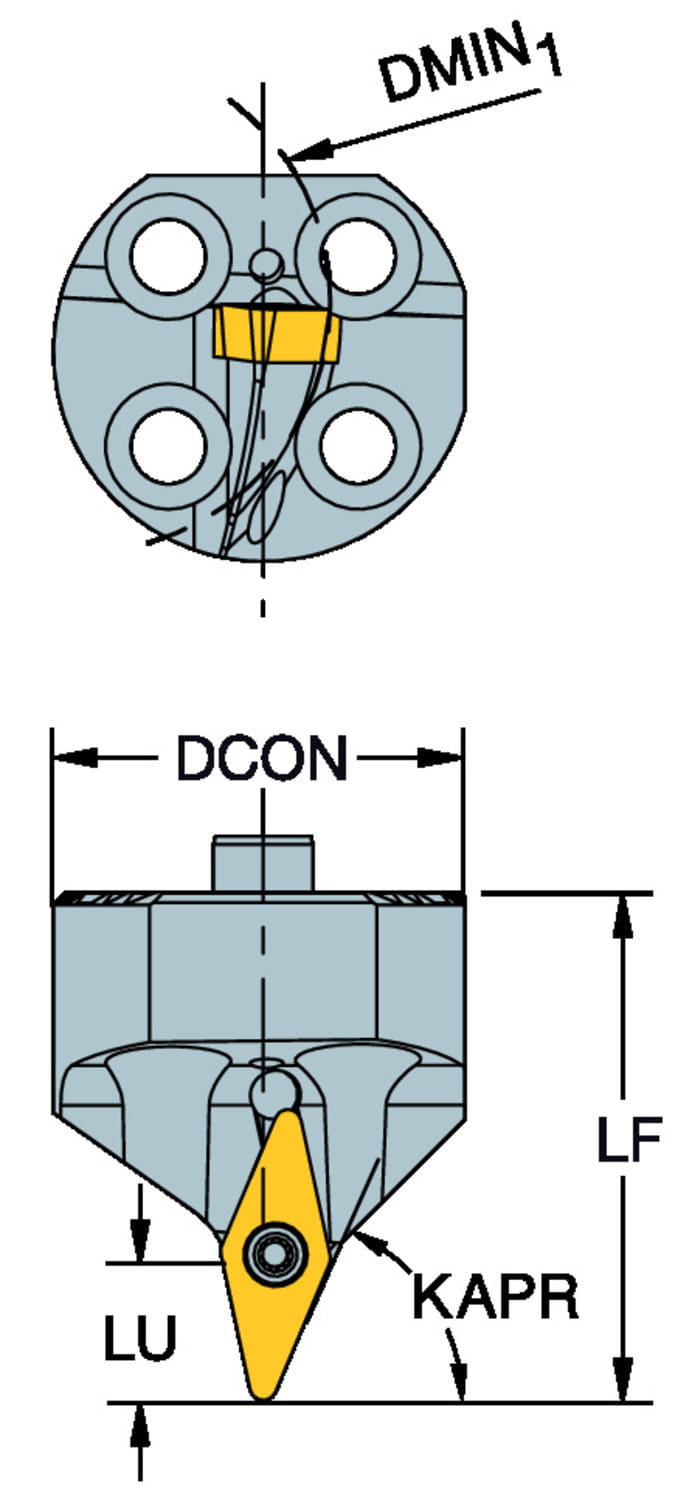

| Dconms Connection Diameter | 0.984252 inch |
| Dconms Connection Diameter | 25 mm |
| Dmin1 Minimum Bore Diameter | 1.1811 inch |
| Dmin1 Minimum Bore Diameter | 30 mm |
| Lf Functional Length | 1.1811 inch |
| Lf Functional Length | 30 mm |
| Lu Usable Length | 0.354331 inch |
| Lu Usable Length | 9 mm |
| Waga | 0.116845 lb |
| Waga | 53 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 25A (HF= +6) |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VCMT 110304 |
| Cxsc Coolant Exit Style Code | 4: axial concentric on circle |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 67 deg |
| Ohx Maximum Overhang | 1.1811 inch |
| Ohx Maximum Overhang | 30 mm |
| Psir Tool Lead Angle | 23 deg |
| Rmpx Maximum Ramping Angle | 75 deg |
| Inne parametry | |
| Ean Number | 7323221179762 |
