CoroTurn® 107, wytaczak A04F-STFCL1.2 ID:5721285 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 062,72 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
864,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
979,08 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5721285
Opis

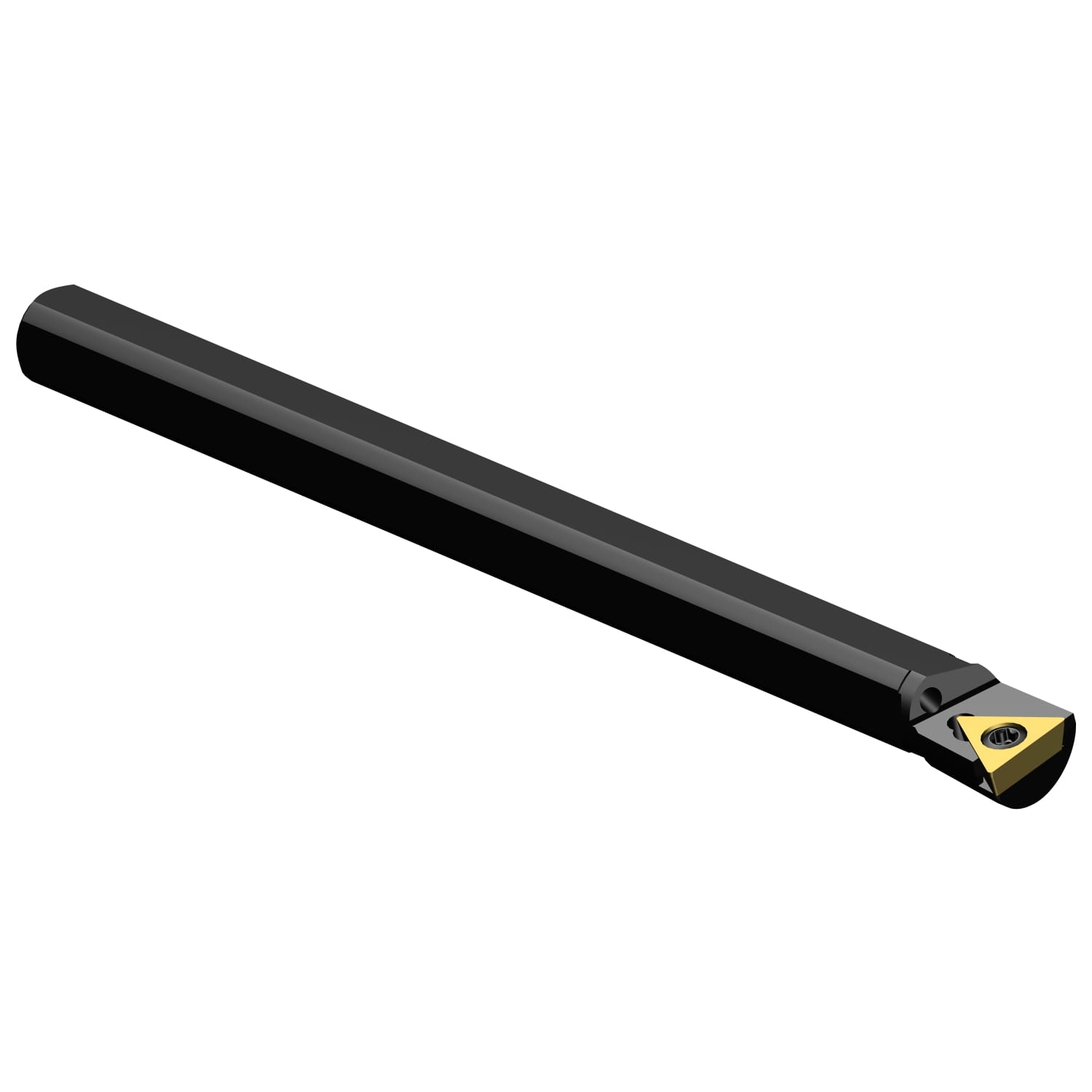

CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..STFCR/L (INCH) |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | US |

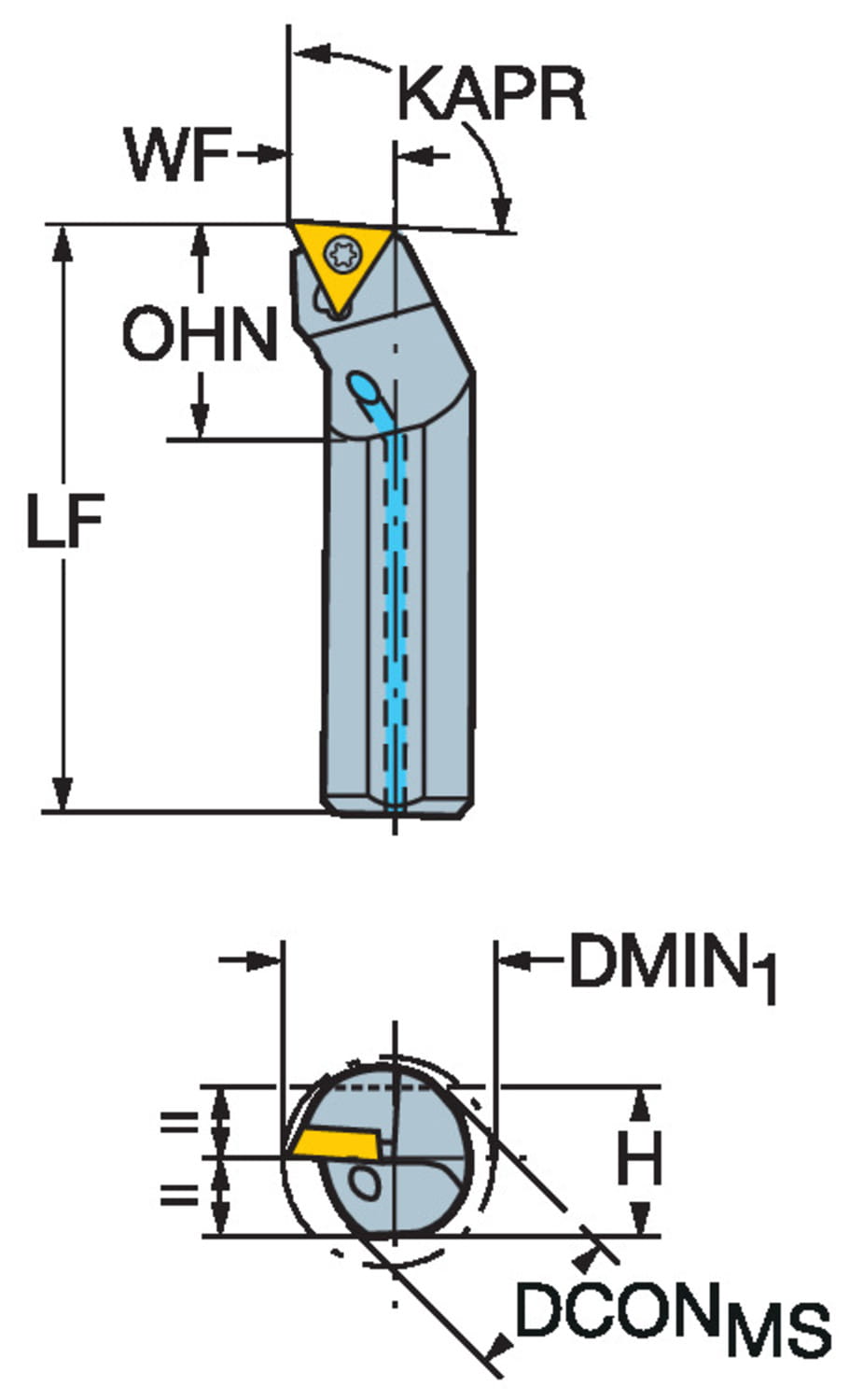

| Wymiary | |
| Dconms Connection Diameter | 0.25 inch |
| Dconms Connection Diameter | 6.35 mm |
| Dmin1 Minimum Bore Diameter | 0.34252 inch |
| Dmin1 Minimum Bore Diameter | 8.7 mm |
| H Shank Height | 0.210236 inch |
| H Shank Height | 5.34 mm |
| Lf Functional Length | 3.25 inch |
| Lf Functional Length | 82.55 mm |
| Waga | 0.030865 lb |
| Waga | 14 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 1/4 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | TCMT 06T102 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 91 deg |
| Ohx Maximum Overhang | 1 inch |
| Ohx Maximum Overhang | 25.4 mm |
| Psir Tool Lead Angle | -1 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12163384 |
