CoroTurn® 107, wytaczak A10R-SVQCR2-E ID:5721958 Sandvik
Dostępność:
duża ilość
Cena brutto:
854,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
695,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
787,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5721958
Opis

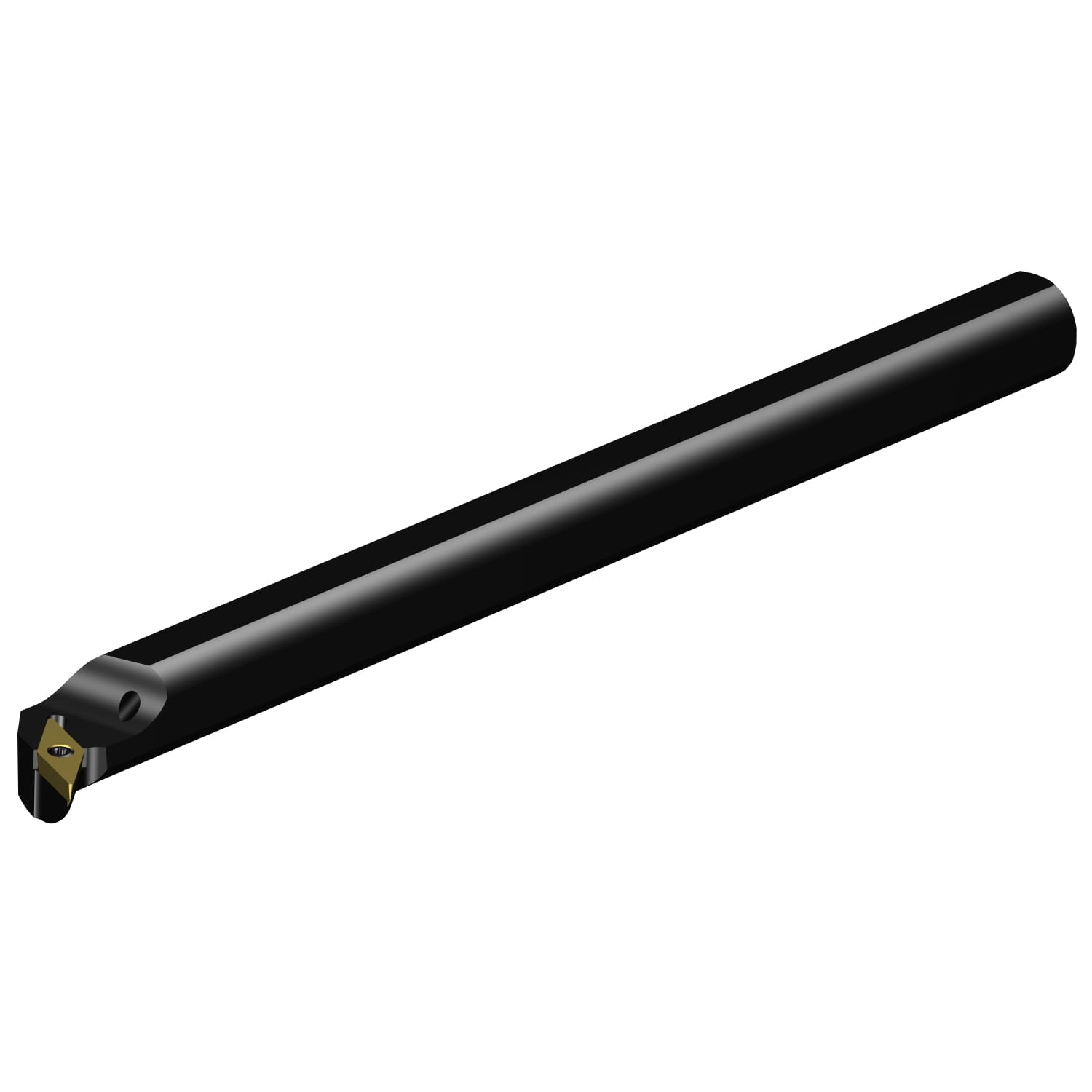

CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..SVQCR/L (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

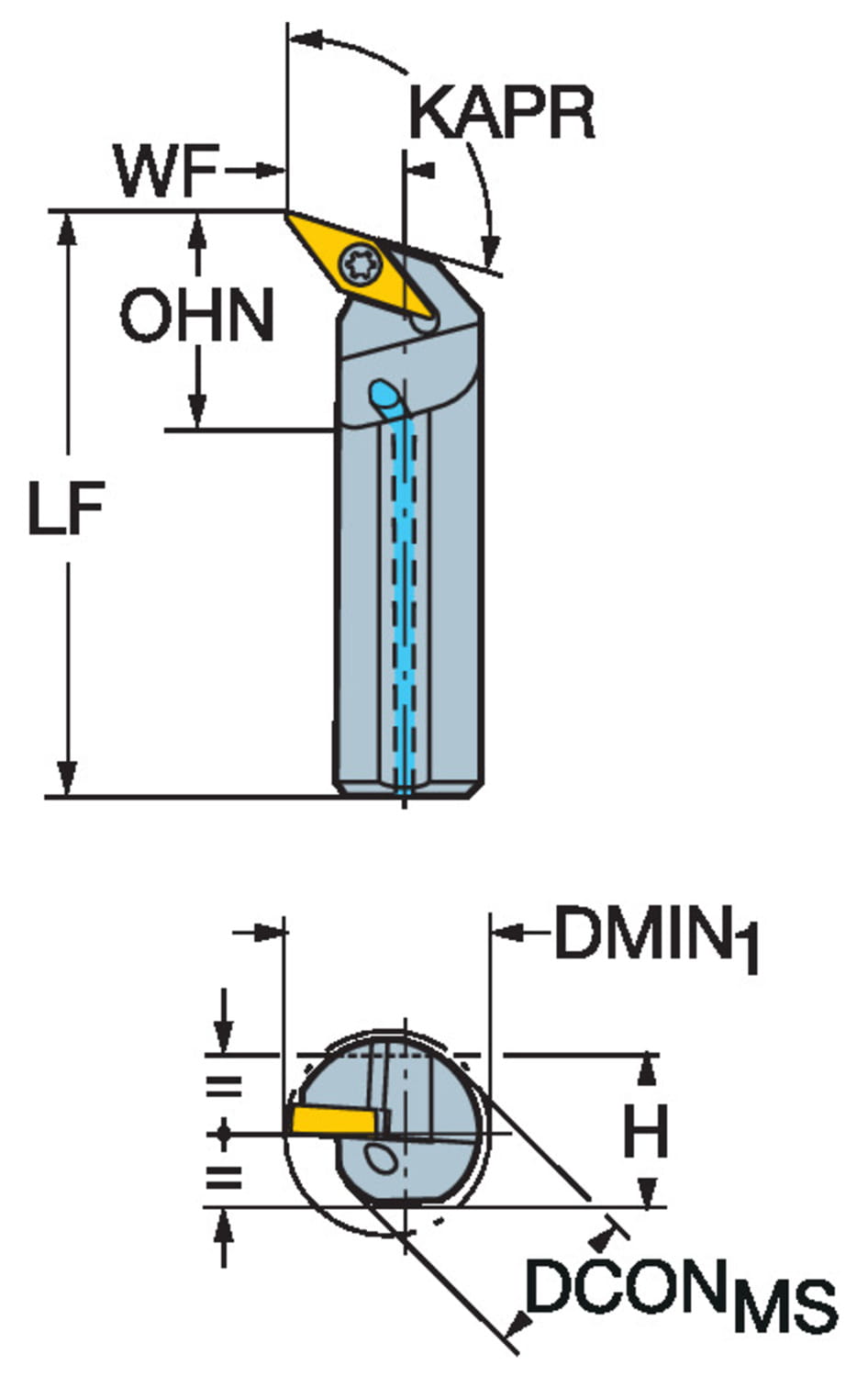

| Wymiary | |
| Dconms Connection Diameter | 0.625 inch |
| Dconms Connection Diameter | 15.875 mm |
| Dmin1 Minimum Bore Diameter | 0.850394 inch |
| Dmin1 Minimum Bore Diameter | 21.6 mm |
| H Shank Height | 0.562 inch |
| H Shank Height | 14.2748 mm |
| Lf Functional Length | 8 inch |
| Lf Functional Length | 203.2 mm |
| Waga | 0.531314 lb |
| Waga | 241 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 5/8 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VCMT 110304 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 107.5 deg |

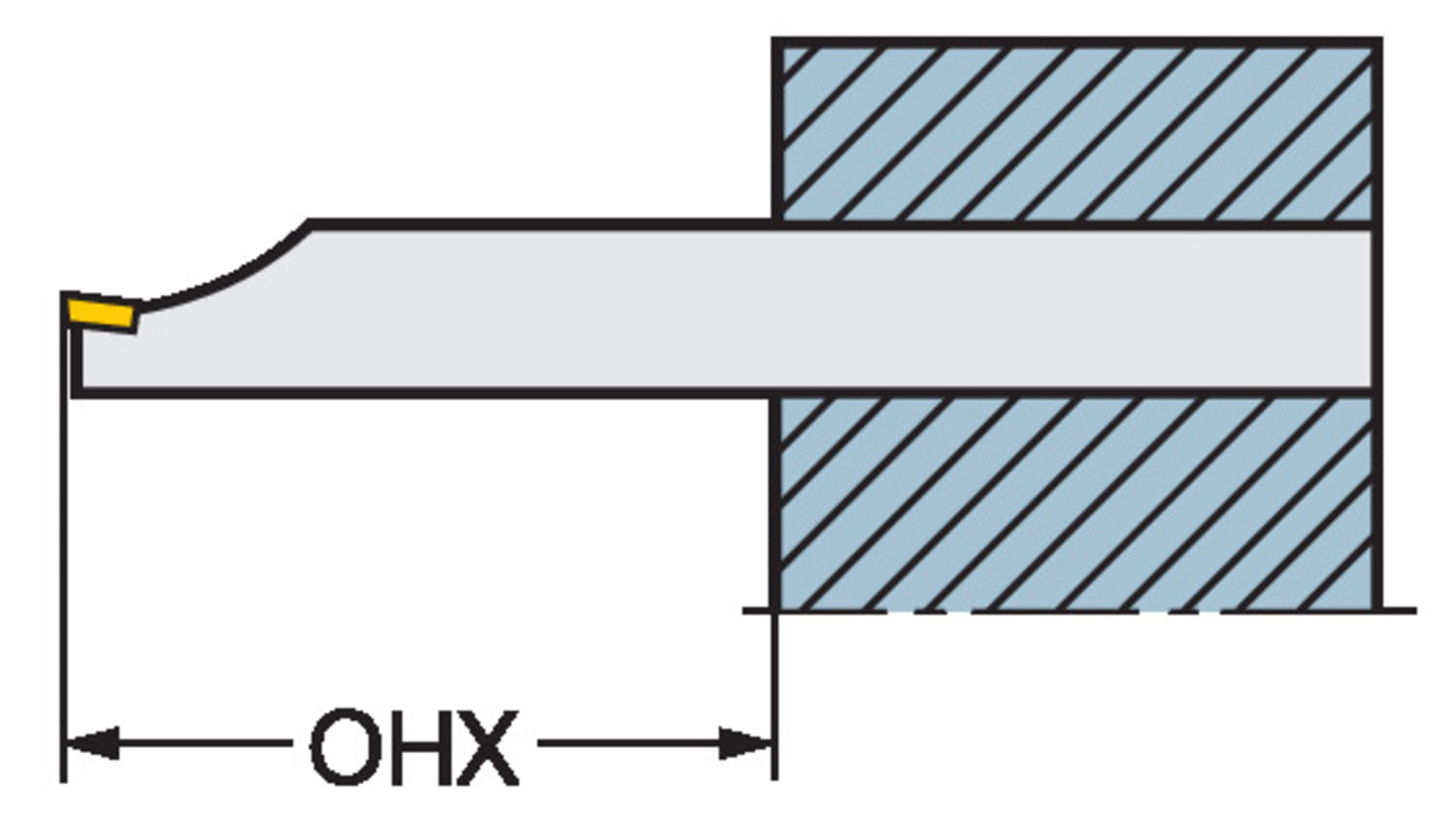

| Ohx Maximum Overhang | 2.5 inch |
| Ohx Maximum Overhang | 63.5 mm |
| Psir Tool Lead Angle | -17.5 deg |

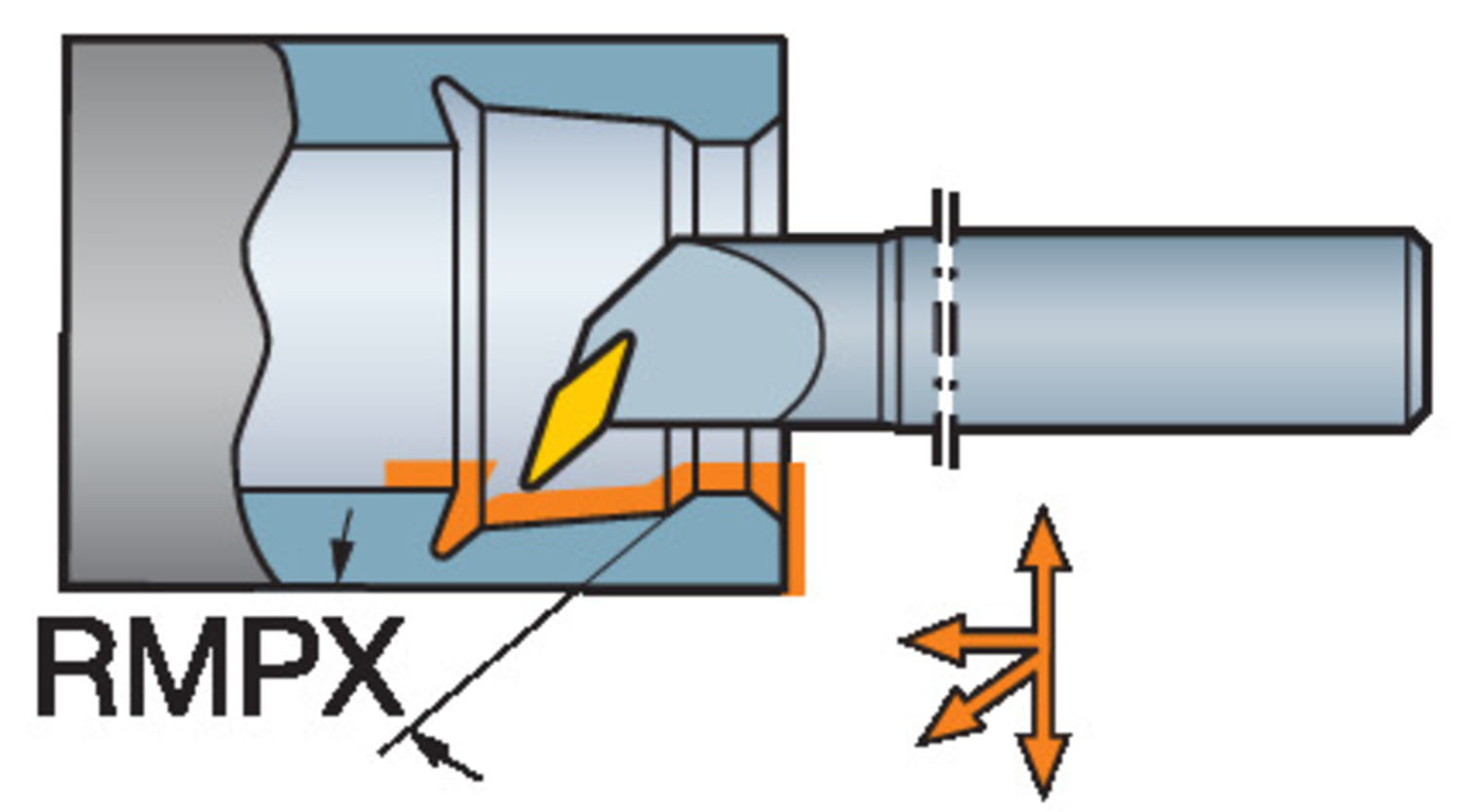

| Rmpx Maximum Ramping Angle | 35 deg |
| Inne parametry | |
| Ean Number | 11314273 |
