CoroTurn® 107, wytaczak A20S-SSKCL09 ID:5721671 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 036,89 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
843,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
954,48 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5721671
Opis

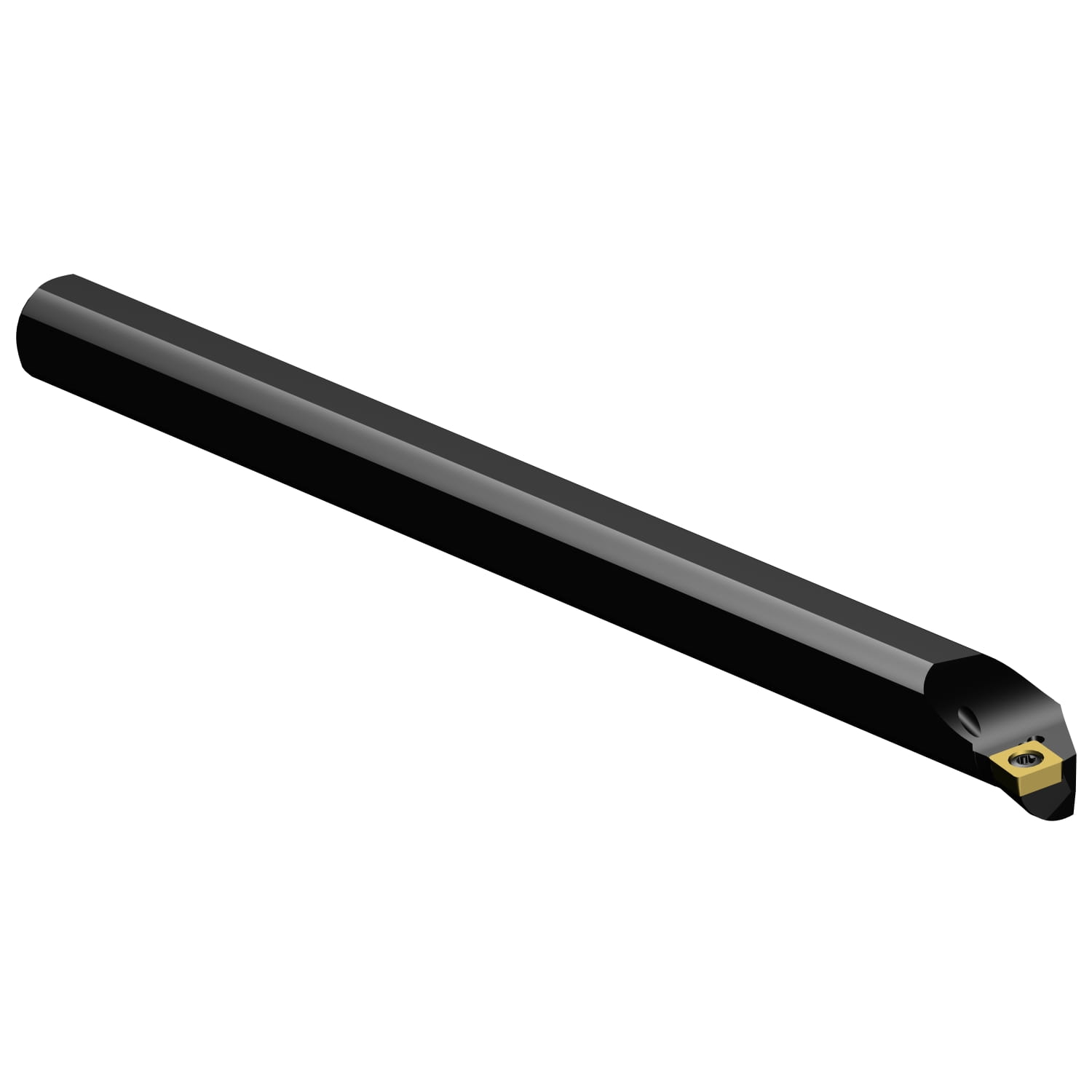

CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..SSKCR/L |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | SE |

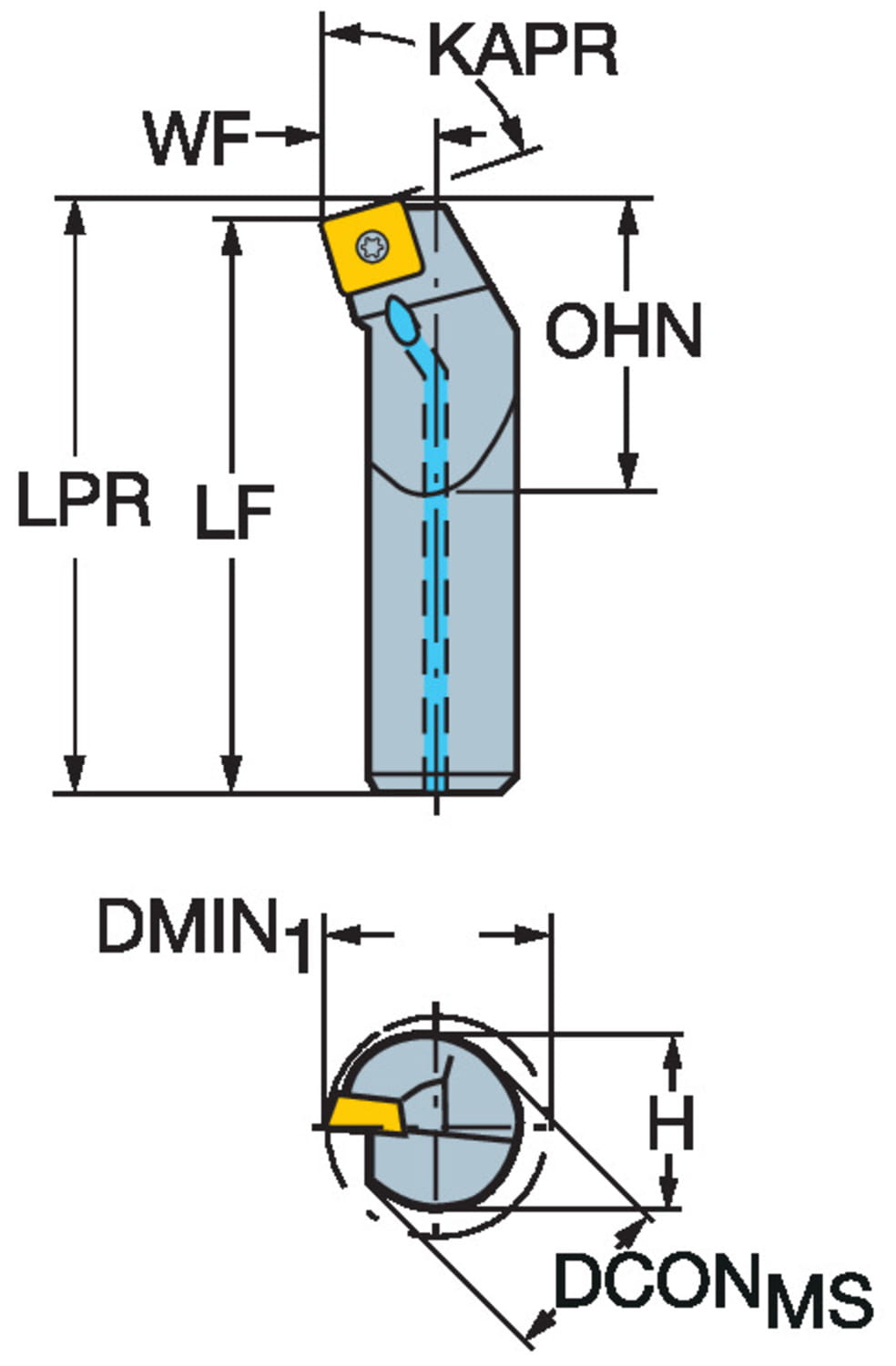

| Wymiary | |
| Dconms Connection Diameter | 0.787402 inch |
| Dconms Connection Diameter | 20 mm |
| Dmin1 Minimum Bore Diameter | 0.984252 inch |
| Dmin1 Minimum Bore Diameter | 25 mm |
| H Shank Height | 0.708661 inch |
| H Shank Height | 18 mm |
| Lf Functional Length | 9.84252 inch |
| Lf Functional Length | 250 mm |
| Waga | 1.20791 lb |
| Waga | 547.9 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -metric: 20 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | SCMT 09T308 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 75 deg |
| Ohx Maximum Overhang | 3.14961 inch |
| Ohx Maximum Overhang | 80 mm |
| Psir Tool Lead Angle | 15 deg |
| Rmpx Maximum Ramping Angle | 10 deg |
| Inne parametry | |
| Ean Number | 12160562 |
